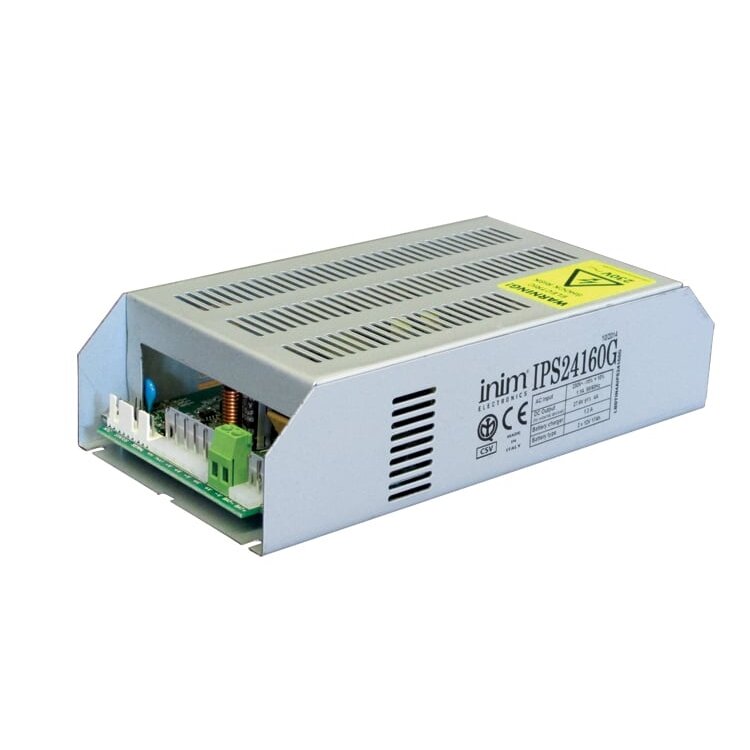

Power supply unit INIM IPS24160G

Product name:

Inim IPS24160G

Name on certification:

no data

Form:

Switching power supply and battery charger providing 160 W @ 27.6 V DC

Power supply:

230 V AC (-15…+10%) 50/60 Hz

Max current draw on AC input:

1.1 A

Output voltage:

27.6 V DC (+-) 1%

Operating output voltage:

18...27.6 V DC

Ripple on output:

< 1%

Maximum output current:

5.2 A

Maximum output current for external loads:

4 A

Maximum output current forn external loads at fully charged batteries:

no data

Maximum output current for battery charging:

1.2 A

Rechargeable batteries:

2 pcs 12 V 17 Ah

Others:

isolation class: "I"; thermal probe input (include probe); battery shutdown at 19 V DC; max. internal resistance of the batteries: 1 ohm

Dimensions:

200 mm * 45 mm * 100 mm

Operating temperature:

-5...+40 *C
