  •   PoE Repeater Wi-tek WI-POE56-60W-I-O

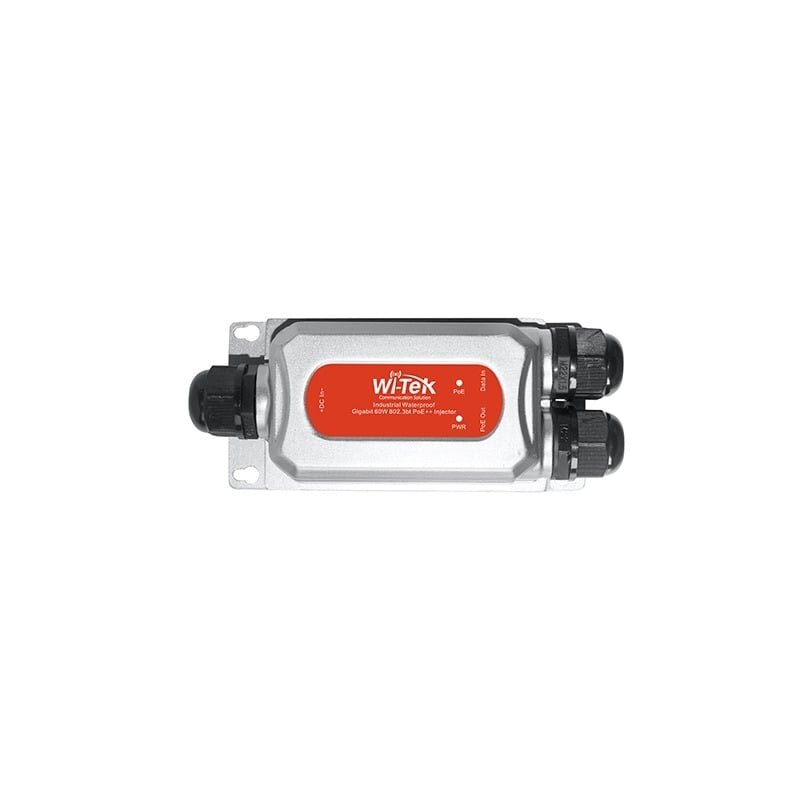

    PoE Repeater Wi-tek WI-POE56-60W-I-O

    Inquire about this item
    Price 112.79 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    WI-TEK

    • General
    • ModelWI-POE56-60W-I-O
    • Hardware VersionV1
    • Interfaces1 x 100/1000Mbps Ethernet Port (Data IN), 1 x 100/1000Mbps Hi-PoE Output Port
    • PoE StandardIEEE 802.3af/at/bt (60W)
    • PoE Power Budget60W Max
    • PoE Power Supply TypeMid-span and End-span
    • PoE Pin Assignment1/2(+), 3/6(-) or 4/5(+), 7/8(-)
    • Input PowerDC 24–56V, 3A Max
    • Power ConsumptionIdle: 3W
    • LED IndicatorsPower: On=Normal, Off=Power off/failure; PoE: Green=802.3bt PoE active, Orange=UPoE mode active
    • Fan QuantityFanless
    • Dimensions150 × 72 × 46 mm
    • Package Dimensions242 × 182 × 84 mm
    • WeightNet: 0.47kg, Package: 0.86kg
    • InstallationWall-mounted, Desktop
    • Surge ImmunityIEC 61000-4-5: Common mode 6kV, Differential mode 2kV
    • ESD ProtectionIEC 61000-4-2: Contact discharge 8kV, Air discharge 10kV
    • Operating Temperature-40℃ to 75℃ (-40℉ to 167℉)
    • Operating Humidity5%–90% RH, non-condensing
    • Storage Temperature-40℃ to 85℃ (-40℉ to 185℉)
    • Storage Humidity5%–95% RH, non-condensing
    • CertificationCE, FCC, RoHS, UKCA, RCM
    • Special FeaturesIndustrial Waterproof Design, Plug and Play, No Configuration Required, Overload and Short Circuit Protection
    • Package ContentsPoE Injector x1, M22 Waterproof Gland x3, Wrench x1, Ground Wire x1, Quick Installation Guide x1
