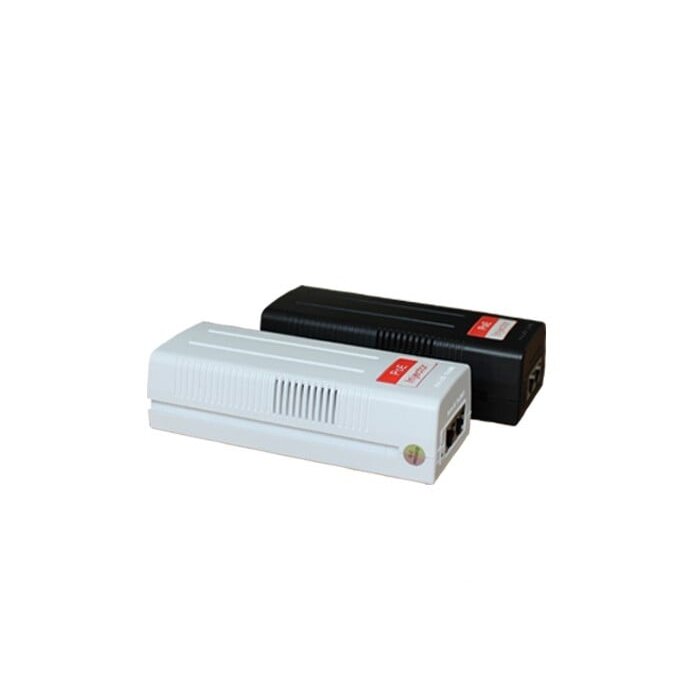

PoE Injector PSE-101P-D 48V-18W

No. of Ports

1

Pass Through Data Rates

10/100/1000 Mbps

Power over Ethernet Output

Pin Assignment and Polarity:

3/6 (+), 1/2 (-)

Output Power Voltage: 55Vdc

UserPortPower: 30W

Input Power Requirements

AC Input Voltage: 100 to 240 Vac

AC Input Current: 0.3A 100-240 Vac

AC Frequency: 50 to 60 Hz

Dimensions

150mmx65mmx38mm

Indicators

System Indicator: AC Power

User Indicator: Channel Power

Connectors

Shielded RJ-45, EIA 568A and 568B

Environmental Conditions

Operating Ambient Temperature:-10 to 45℃

Operating Humidity:

Maximum 90%, Non-condensing

Storage Temperature:-20 to 70℃

Storage Humidity:

Maximum 95%, Non-condensing

Reliability

MTBF: 100,000 hrs. @25℃

Regulatory Compliance

IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

RoHS Compliant, CE, FCC

Electromagnetic

Emission & Immunity

FCC Part15, Class B

EN 55022 Class B (Emissions)

EN 55024 (Immunity), VCCI

Surge Protection

AC port: 6kV

RJ45 port: 4kV

Safety Approvals

UL/cUL Per EN 6095-1

GS Mark Per EN 60950-1
