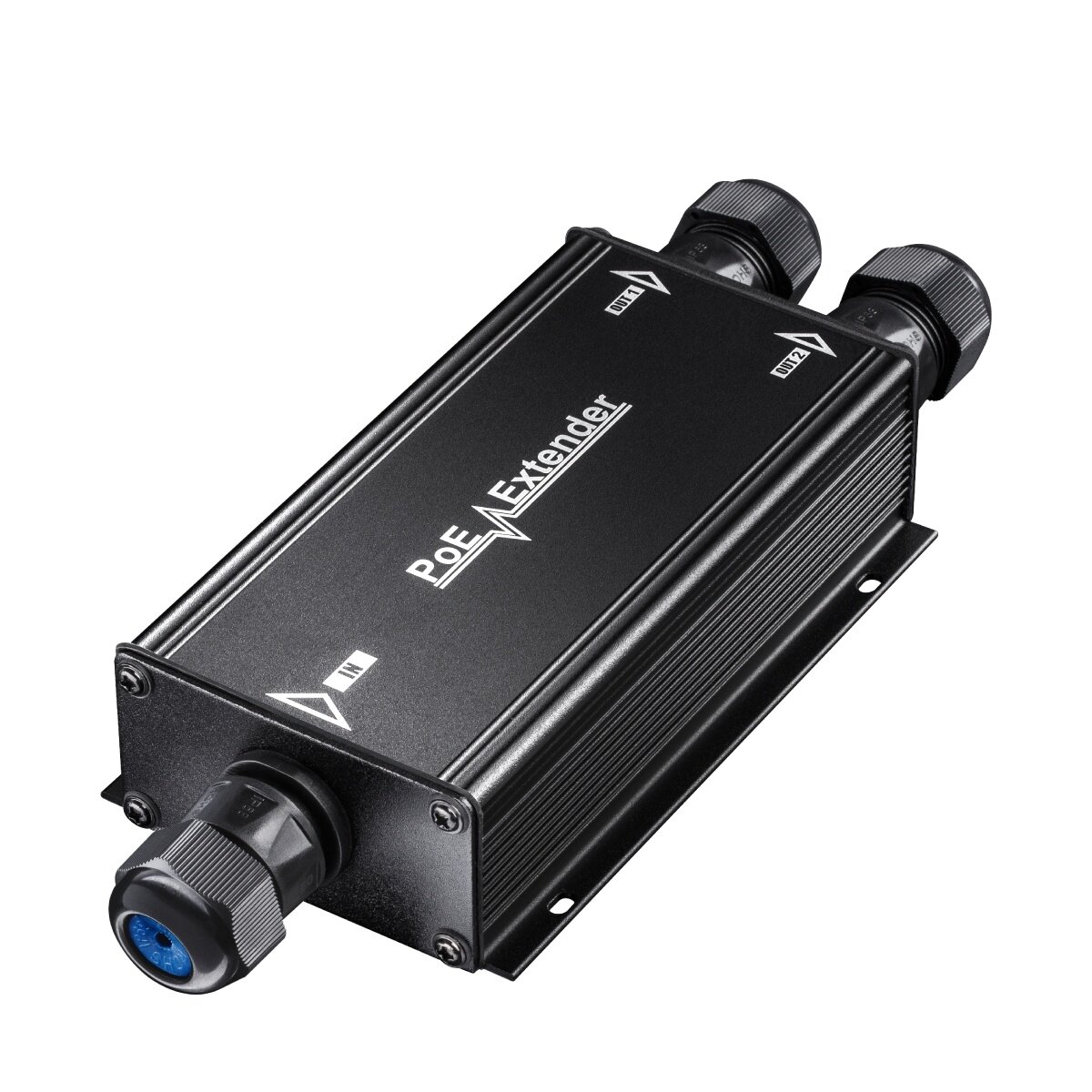

    PoE extender Cudy POE25

    Inquire about this item
    Price 77.95 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionPOE25 1.0
    • Protocols SupportedIEEE 802.3i (10 Mbps), 802.3u (100 Mbps), 802.3ab (1 Gbps), 802.3x (Flow Control), 802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
    • Uplink Stream1× GbE, 802.3af/at
    • Uplink PIN AssignmentMode A / Mode B
    • Downlink Stream2× GbE, 802.3af/at
    • Downlink PIN AssignmentMode A
    • Transmission DistanceCat 5e or higher: 100 m at Gigabit
    • Power Input≥60W recommended
    • Max Power Output2× 30W
    • Power Output NoteActual output depends on input
    • Max Power Consumption2W
    • Client ProtectionPolarity Protection, Overvoltage Protection, Short-Circuit Protection, Automatic Voltage Regulation
    • EMS ComplianceIEC/EN 61000-4-2 Level 3 (ESD Contact: 6kV, Air: 8kV)
    • Grounding MethodGrounding Point
    • Ambient Operating Temperature-25°C ~ 55°C (-13°F ~ 131°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 100% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • Ingress ProtectionIP67
    • CertificationsFCC, CE
    • Daisy Chain SupportUp to 3 extenders in a chain
    • Installation TypeDesktop, Wall-mount
    • Dimensions230×90×40 mm (9.06×3.54×1.57 inches)
    • Casing MaterialMetal
    • Product Weight305 g (10.76 oz.)
