  •   PoE extender Cudy POE15 (Industrial)

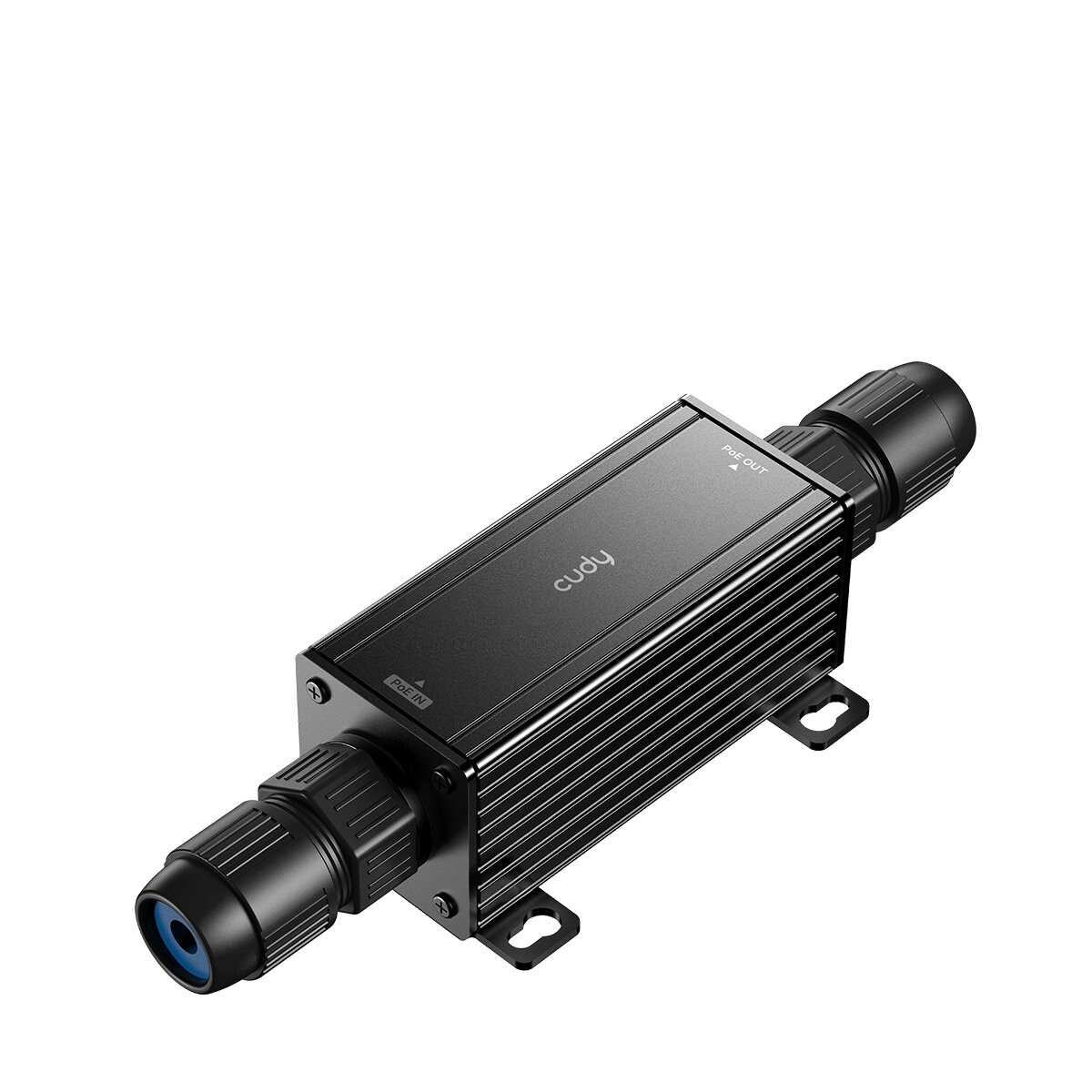

    PoE extender Cudy POE15 (Industrial)

    Inquire about this item
    Price 57.17 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionPOE15 2.0
    • Protocols SupportedIEEE 802.3i (10 Mbps), 802.3u (100 Mbps), 802.3ab (1 Gbps), 802.3x (Flow Control), 802.3af (PoE), 802.3at (PoE+)
    • Uplink Stream1× GbE, 802.3af/at
    • Uplink PIN AssignmentMode A / Mode B
    • Downlink Stream1× GbE, 802.3af/at
    • Downlink PIN AssignmentMode A
    • Transmission DistanceCat 5e or higher: 100 m at Gigabit
    • Max Power Input≥30W recommended
    • Max Power Output30W
    • Power Output NoteActual output depends on input
    • Client ProtectionPolarity Protection, Overvoltage Protection, Short-Circuit Protection, Automatic Voltage Regulation
    • EMS ComplianceIEC/EN 61000-4-2 Level 3 (ESD Contact: 6kV, Air: 8kV), IEC/EN 61000-4-5 Surge RJ45: CM 6kV
    • Grounding MethodGrounding Point
    • Ambient Operating Temperature-20°C ~ 70°C (-4°F ~ 158°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 100% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • Ingress ProtectionIP67
    • CertificationsFCC, CE
    • Installation TypeDesktop, Wall-mount
    • Dimensions206×66×46.1 mm (8.11×2.6×1.81 inches)
    • Casing MaterialMetal
