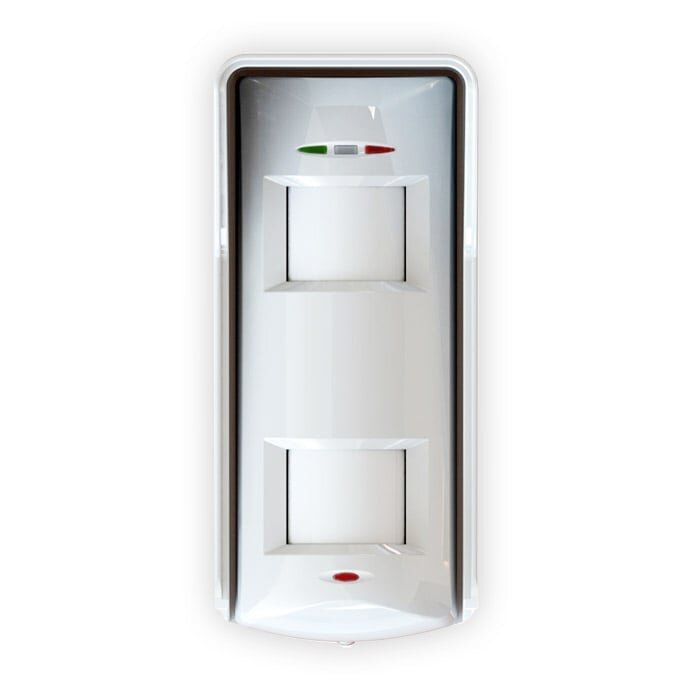

PIR Detector Pyronix XDH10TT-AM
ManufacturerPyronix-
Automatic sensitivity Yes Set sensitivity Auto or high Digital temperature compensation Yes Tamper protection Front and rear Separate LED indication Microwave, infrared and alarm Maximum range 10m (13m with curtain lens) Volumetric coverage Yes Curtain coverage Optional Animal immunity 10kg Tri technology 2 infrared and 1 microwave Detection speed 0.25 - 2.5m/s Coverage angle 90 degree (142 degree with curtain lens) Detection zones 78 (24 with curtain lens) Detection planes 5 (1 with curtain lens) Detection method 2 low noise dual element passive infrared sensors and a microwave doppler unit Optimum coverage height 2.4m Certified mounting height 2.4m Nominal operating temperature -30°C to +70°C Physical dimensions (H x W x D) 188 x 84 x 77mm Weight 300g Operating voltage 9-16VDC, 13.8VDC typically Quiescent current consumption 24mA @ 13.8VDC Electrical conformity CE Certification type Self-certified
