  •   PIR Detector Pyronix KX15DQ

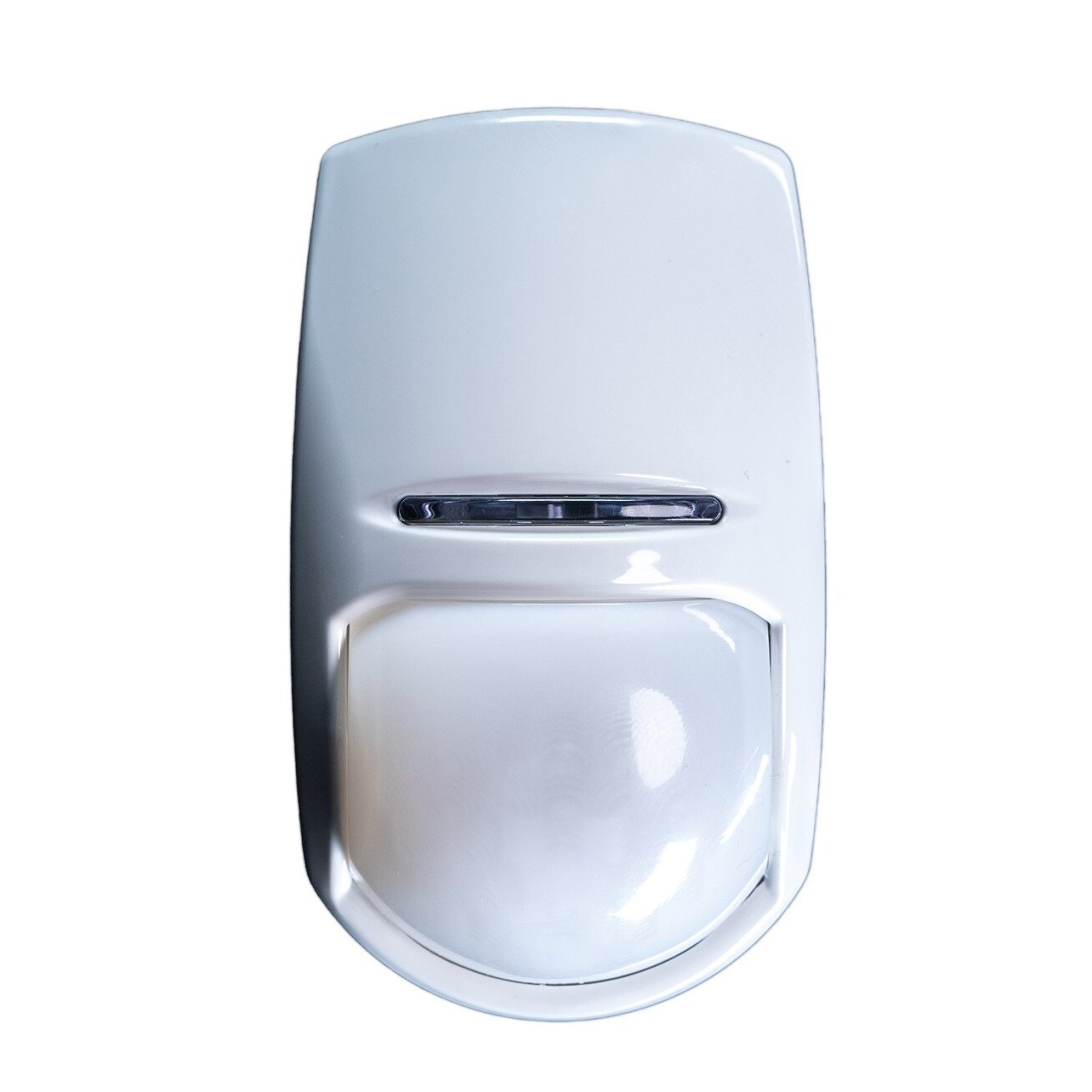

    PIR Detector Pyronix KX15DQ

    Inquire about this item
    Price 12.52 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Pyronix
    • General
    • Blue Wave technologyYes
    • Automatic sensitivityYes
    • Set sensitivityAuto, High or Low
    • Digital temperature compensationYes
    • Optical quadYes
    • DEOL resistor on boardYes
    • Tamper protectionFront and rear
    • Maximum range15m
    • Detection speed0.3–3.0m/s
    • Coverage angle85 degree
    • Detection zones60
    • Detection planes7
    • Protection of area under the detector (creep zone)Yes
    • White light filter6500 Lux
    • Protection3 dimensional
    • LensUltraviolet light filter
    • OpticsSealed optics
    • Detection methodDigital Quad signal processing
    • Wall mountedBracket included
    • Ceiling mountedBracket included
    • Optimum coverage height1.8–2.4m
    • Certified mounting height2.4m
    • Storage temperature-40°C to 80°C
    • Certified operating temperature-10°C to 40°C
    • Nominal operating temperature-30°C to 70°C
    • Physical dimensions (H x W x D)117 x 69 x 50mm
    • Weight125g without bracket
    • Operating voltage9–16V DC (13.8V DC typical)
    • Quiescent current consumption13mA @ 12V (Min), 16mA @ 12V (Max)
    • Contact Resistance<10 ohms
    • Relay outputs50mA 60 VDC, 42 VAC (RMS)
    • Tamper switch12V 50mA
    • Security GradeGrade 2
    • Environmental classII
    • EN CertificateEN50131-2-2:2008, EN50131-1, PD6662:2017
    • Certification typeIMQ
    • Certificate numberCA12.1172
    • Electrical conformityCE
