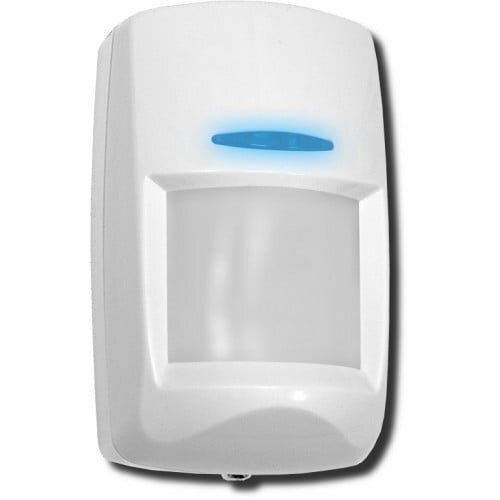

PIR Detector Pyronix COLT10DL
ManufacturerPyronix-
Digi logic technology Yes Set sensitivity PC1, PC2 & pet Maximum range 10m Volumetric coverage Yes Animal immunity 10kg Detection speed 0.3 - 3.0 m/s Coverage angle 90 degree Detection zones 78 Detection planes 5 Detection method Low noise Dual Element Pyroelectric sensor Optimum coverage height 2m - 2.4m standard, 2.4m PI Certified mounting height 2.4m Certified operating temperature -30°C to +60°C Physical dimensions (H x W x D) 82 x 50 x 41mm Weight 58g without bracket Operating voltage 9 - 16 VDC Quiescent current consumption 15mA at 12V Electrical conformity CE EN Certificate EN50131-2-2:2008
EN50131-1:2006+A1:2009
PD6662:2010Certification type Self-certified
