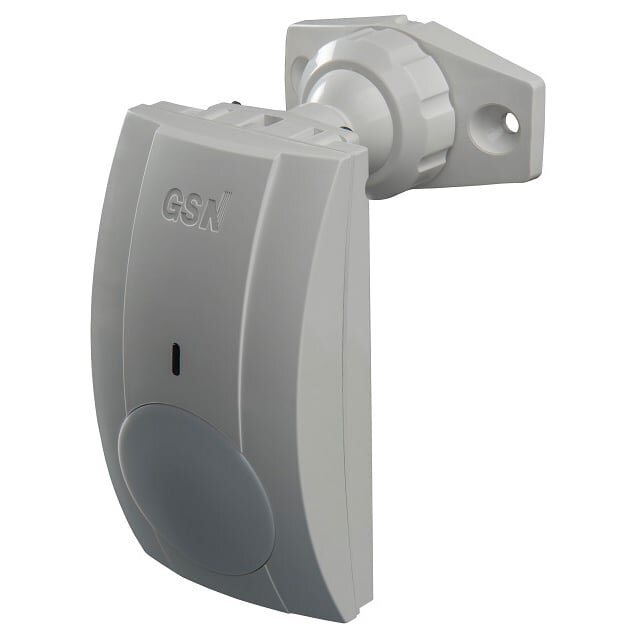

PIR Detector PATROL 903 QUAD
ManufacturerPatrol-
Input voltage 8.5-16VDC Current consumption in standby mode 9.7mA Current consumption in alarm mode 10.5mА Warm up period 60sec Detection range 15.6m x 125º Detection speed range 0.3 – 3m/sec Relay output NC; 60V; 100mA; 16Ω Tamper output NC; 10Ω Alarm period 3sec Reset time 5 ± 1sec Pulse counter 1,2,3,4 Installation height 2.0 – 2.5m Light immunity without sunshield filter no less than 6500 Lux Light immunity with sunshield filter more than 30 000 Lux Operating temperature range – 30ºC +60ºC Storage temperature range – 50ºC +80ºC RFI immunity 30V/м at a frequency range 30MHz-1GH EMI immunity 50 000V Dimension 54mm x 33mm x 99mm Weight 75gr
