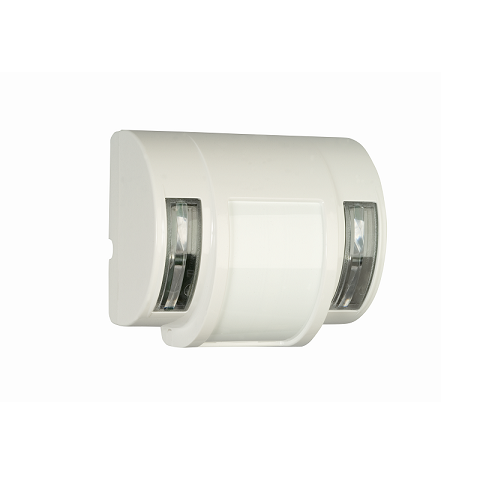

    PIR Detector PATROL 301

    Inquire about this item
    Price 18.41 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Patrol

  • Detection speed range:

    0.2 - 3.0m/sec

    Power input:

    8.5 - 16VDC

    Current consumption:



    In stand-by mode:

    12.2mA

    In alarm mode with LED on:

    13.2mA

    In alarm mode with LED off:

    8.2mA

    Pulse mode:

    1,2

    Alarm period:

    3sec

    Detection range:

    15meters

    Installation height:

    up to 10meters

    Relay output:

    NC; 60V; 120mA; 16Ω

    Warm up period:

    40sec

    Reset time:

    5±1sec

    Light immunity:

    no less than 10000Lux

    Opening protection:

    TAMPER SWITCH

    Operating temperature range:

    -30ºC +50ºC

    Storage temperature range:

    -50ºC +80ºC

    RFI immunity:

    30V/m at a frequency range 10MHz - 1000MHz

    EMI immunity:

    50000V

    Dimensions:

    75mm x 66mm x 49mm

    Weight:

    106gr
