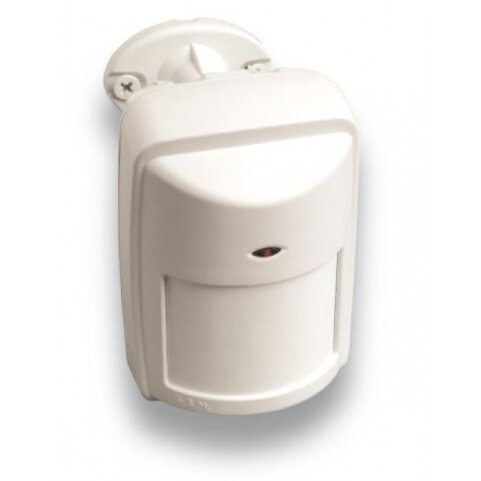

PIR Detector PATROL 201PET

PATROL- 201PET - is a passive infrared detector, which provides PET immunity
up to 20kg.

PATROL- 201PET - incorporates an effective detection system, maximum protection
from false alarms and easy and fine PIR sensitivity adjustment to the pet's weight.

PATROL- 201PET - has an elegant design and is suitable for any interior.

PATROL- 201PET ADVANTAGES

• The PATROL- 201PET ignores pets of up to 20kg and 1m height.

• Easy and fine PIR sensitivity adjustment to the pet's weight.

• An automatic counter selects and counts incoming pulses in accordance with the strength of incoming signals to the detector.

• An original Fresnel lens protects the detector from false alarms upon

• exposure to sunlight or headlights.

• A hermetical sealing of the pyroelectric sensor protects the detector from
  draughts and small insects, thus eliminating one of the main causes of false alarms.

• Coverage range - 15m x 90°.

• Full protection from radio frequency interference (RFI). There is no alarm
  against a 10 watt transmitter within 1m range at a frequency range
  of 10MHz to 1000MHz.

• The detector relay is an optoelectronic relay with an unlimited number of
  operation cycles.

• The detector remains operational at temperatures as low as -30°C.

THE PATROL-201PET IS RECOMMENDED FOR BOTH RESIDENTIAL
                            AND INDUSTRIAL PREMISES

THE PATROL-201PET IS A RELIABLE DETECTOR SERVING IN ACCORDANCE
             WITH THE NEEDS OF BOTH END USER AND INSTALLER

TECHNICAL SPECIFICATIONS

Detection speed range:........................................0.3 - 3.0m/sec;
Power input:...........................................................8.5 - 16VDC;
Current consumption:
In stand-by mode:.........................................................11.2mA;
In alarm mode with LED on:.............................................9.7mA;
In alarm mode with LED off:.............................................6.8mA;
Pulse mode:...........................................................automatic/2;
Alarm period:....................................................................3sec;
Coverage range:..........................................................15meters;
Relay output:.................................................60V; 120mA; 16Ω;
Warm up period:.............................................................40sec;
Reset time:...................................................................5±1sec;
Light immunity:.......................................no less than 10000Lux;
Opening protection:.......................................TAMPER SWITCH;
Operating temperature range:..................................-30ºC +50ºC;
Storage temperature range:.....................................-40ºC +80ºC;
RFI immunity:......30V/m at a frequency range 10MHz - 1000MHz;
EMI immunity:..............................................................50000V;
Dimensions:..........................................93mm x 66mm x 46mm;
Weight:.............................................................................94gr.
