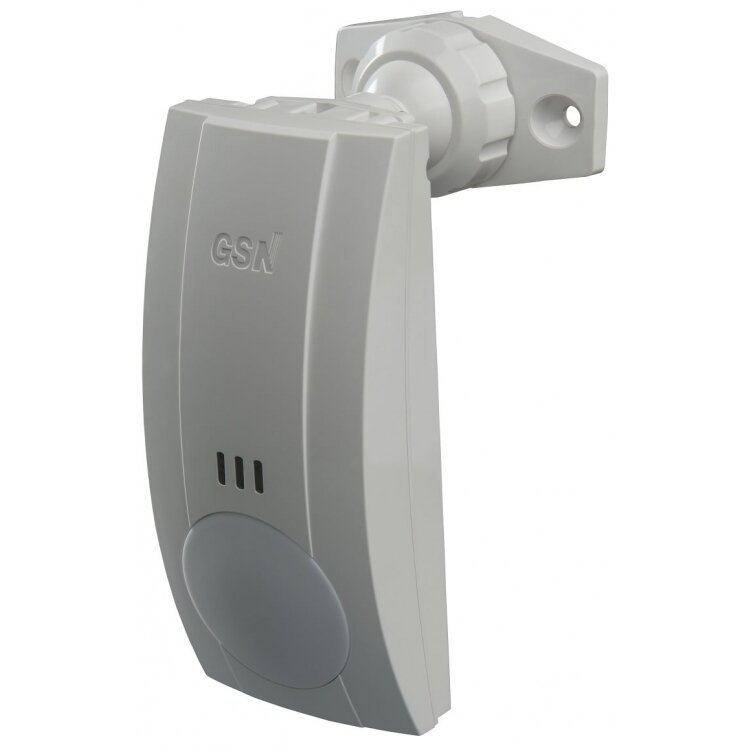

PIR Detector PATROL 105 PET

Input voltage

9-16VDC

Current consumption in standby mode

83mA

Current consumption in alarm mode

125mА

Microwave frequency

10.525GHz

Anti-mask startup (boot) period

50 ± 5sec

Warm up period

60sec

Detection range

15.6m x 120º

Detection speed range

0.3 – 3m/sec

Relay output

NC/NO; 60V; 100mA; 16Ω

Tamper output

NC; 60V; 100mА; 16Ω

Alarm period

3sec

Reset time

5 ± 1sec

PET mode

15/25kg

Pulse counter

1,2,3,4,5

Installation height

2.0 – 2.5m

Light immunity without sunshield filter

no less than 6500 Lux

Light immunity with sunshield filter

   more than 30 000 Lux

Operating temperature range

– 30ºC +60ºC

Storage temperature range

– 50ºC +80ºC

RFI immunity

30V/м at a frequency range 30MHz-1GH

EMI immunity

50 000V

Dimension

54mm x 34mm x 120mm

Weight

115gr
