  •   Networking cable Ubiquiti U-Cable-C6-CMR Cat6 UTP CMR 23AWG (305m)

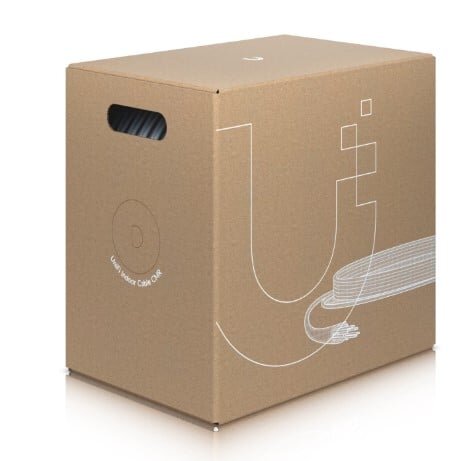

    Networking cable Ubiquiti U-Cable-C6-CMR Cat6 UTP CMR 23AWG (305m)

    Inquire about this item
    Price 211.50 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs

    • General
    • Box dimensions474 x 346 x 458 mm (18.7 x 13.6 x 18")
    • Box weight14.8 kg (32.7 lb)
    • Cable length305 m (1000 ft)
    • Cable colorWhite
    • Cable typeCategory 6
    • Shielding typeUTP
    • Flame ratingCMR
    • Conductor wire gauge23 AWG
    • Conductor typeSolid bare copper
    • Jacket materialPVC
    • Jacket diameter6.0 ± 0.2 mm
    • Bend radiusMin. 24 mm
    • Pulling tensionMax. 110 N
    • Storage temperature-20 to 75°C (-4 to 167°F)
    • Installation temperature0 to 60°C (32 to 140°F)
    • Ambient operating temperature-20 to 60°C (-4 to 140°F)
    • Anti-crosstalk dividerYes
    • RipcordYes
    • Data rate10/100/1000 Base-T
    • Reference bandwidthUp to 600 MHz
    • StandardsElectrical transmission: ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2), IEC 61156-5 (Edition 2.1); Flame test: UL 1666 (CMR); Material and construction: UL 444, CSA 22.2 NO.214, EU Directive 2011/65/EU (RoHS2), EU Directive 2006/95/EC (LVD)
