  •   Network video recorder NVR Dahua NVR5864-EI

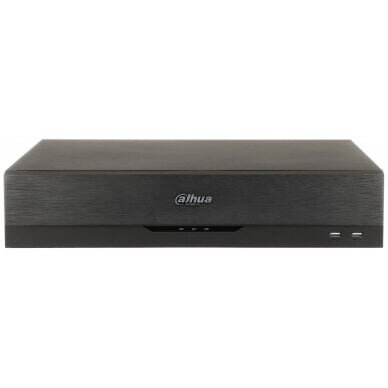

    Network video recorder NVR Dahua NVR5864-EI

    Inquire about this item
    Price 2091.56 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua
    • General
    • ModelDahua DHI-NVR5864-EI
    • Form Factor2U Rack Mountable
    • Channels64 IP channels
    • Video Input Bandwidth (AI Off/On)384 Mbps / 200 Mbps
    • Video Output2 HDMI, 2 VGA (simultaneous output supported)
    • Max Resolution InputUp to 32 MP
    • Decoding Capability (AI Off)32-ch 1080p@30 fps
    • Decoding Capability (AI On)24-ch 1080p@30 fps
    • Storage8 SATA ports (max 20 TB per disk), 1 eSATA port
    • RAID SupportRAID 0/1/5/6/10
    • AI Features by Recorder2-ch face detection & recognition, 4-ch perimeter protection, 8-ch SMD Plus
    • AI Features by CameraFace detection/recognition, metadata, people counting, heat map, ANPR, etc.
    • Face DatabaseUp to 20,000 images across 20 databases
    • SMD Plus Filtering (Recorder)8 channels
    • SMD Plus Filtering (Camera)All channels (32 targets/s)
    • Alarm Input/Output16 inputs / 8 outputs
    • Audio I/O1 RCA in / 2 RCA out
    • Network Ports2 × RJ-45 (10/100/1000 Mbps)
    • USB Ports2 × USB 2.0 (front), 2 × USB 3.0 (rear)
    • RS-232 / RS-4851 × RS-232, 2 × RS-485
    • Power Supply100–240 VAC, 50–60 Hz
    • Power Consumption≤ 13 W (without HDD)
    • Operating Temperature–10°C to +55°C (14°F to +131°F)
    • Storage Temperature–20°C to +60°C (–4°F to +140°F)
    • Operating Humidity10%–93% RH (non-condensing)
    • Product Dimensions439.9 × 457.9 × 89.0 mm (17.32" × 18.03" × 3.50")
    • WeightNet: 6.40 kg, Gross: 9.01 kg
    • CertificationsFCC, CE-EMC, CE-LVD
    • Mobile AccessiOS, Android
    • InteroperabilityONVIF (Profile S, G, T), CGI, SDK
    • Browser SupportChrome, Edge, Safari, Firefox, IE
