  •   Network Video Recorder Dahua NVR4216-4KS3

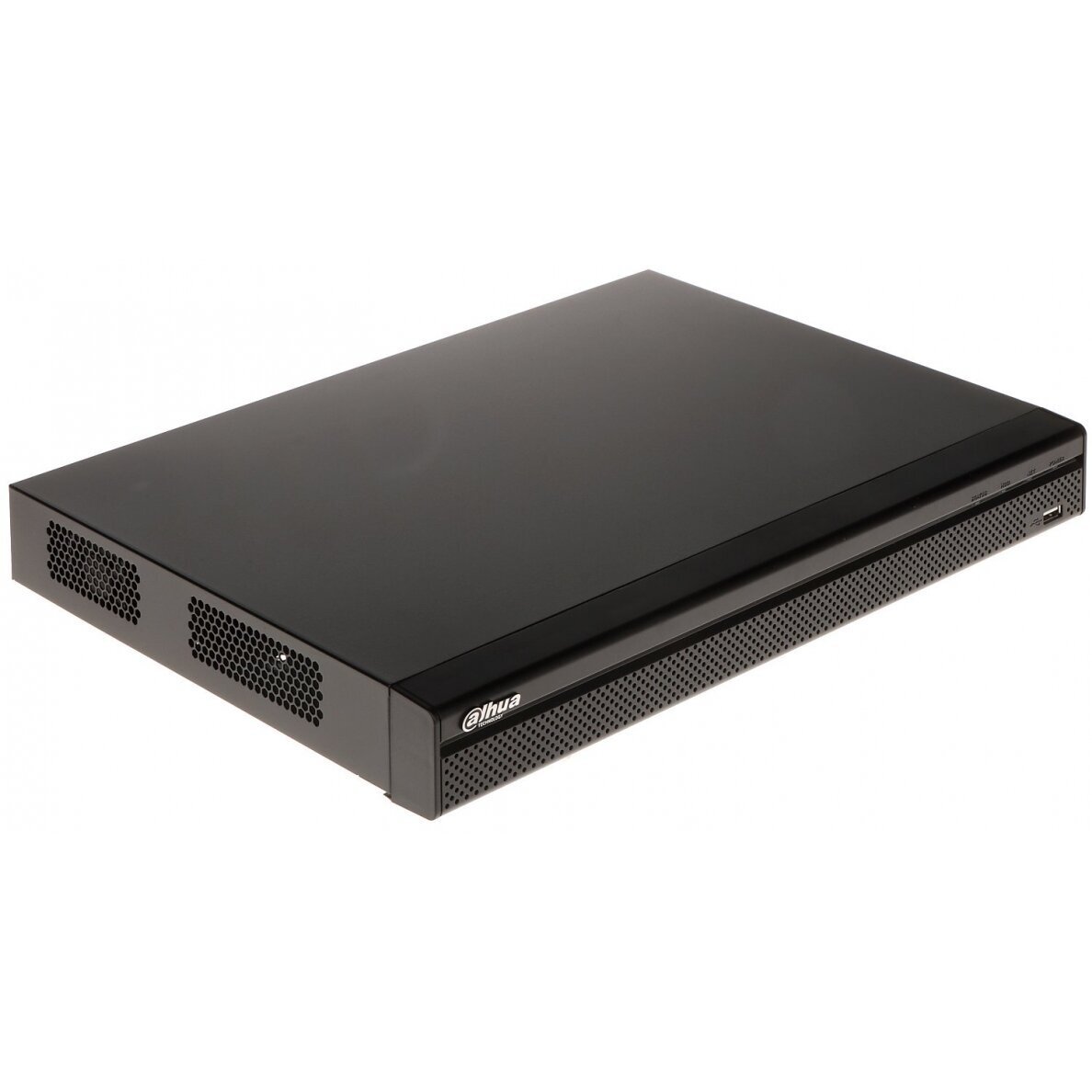

    Network Video Recorder Dahua NVR4216-4KS3

    Inquire about this item
    Price 251.32 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • Main Processor Industrial-grade processor
    • Operating System Embedded Linux
    • Operating Interface Web, Local GUI
    • AI by Recorder SMD Plus
    • AI by Camera Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
    • Perimeter Performance of AI by Camera (Number of Channels) 6 channels
    • Face Attributes Gender; age group; glasses; expressions; face mask; beard
    • Face Detection Performance of AI by Camera (Number of Channels) 6 channels
    • Face Recognition Performance of AI by Camera (Number of Channels) 6 channels
    • SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
    • SMD Plus by Camera 6 channels
    • Access Channel 16 channels
    • Network Bandwidth AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
    • Resolution 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
    • Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps
    • Video Output 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    • Multi-screen Display Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
    • Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
    • Video Compression Smart H.265+; H.265; Smart H.264+; H.264
    • Audio Compression G.711a; G.711u; PCM; G726
    • Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
    • Mobile Phone Access iOS; Android
    • Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
    • Browser Chrome; IE; Safari; Edge; Firefox
    • Multi-channel Playback Up to 16 channels
    • Record Mode General, motion detection; intelligent; alarm
    • Backup Method USB device and network
    • Playback Mode Instant playback, general playback, event playback, tag playback, smart playback
    • Disk Group Yes
    • General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
    • Anomaly Alarm Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
    • Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
    • Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
    • Audio Input 1-channel RCA
    • Audio Output 1-channel RCA
    • Alarm Input 4 channels
    • Alarm Output 2 channels (1-channel 12 V 1 A output）
    • Disk Interface 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
    • USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
    • HDMI 1
    • VGA 1
    • Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
    • Power Supply 12 VDC, 4 A
    • Power Consumption Total output of NVR is <10 W(without HDD)
    • Net Weight 1.49 kg (3.28 lb)
    • Gross Weight 2.77 kg (6.11 lb)
    • Product Dimensions 375.0 mm × 282.9 mm × 53.0 mm (14.76" ×11.14" × 2.09") (W × D × H)
    • Packaging Dimensions 433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)
    • Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
    • Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
    • Operating Humidity 10%–93% (RH), non-condensing
    • Installation Rack or desktop
    • Certifications CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
