  •   Network Video Recorder Dahua NVR NVR608RH-64-XI

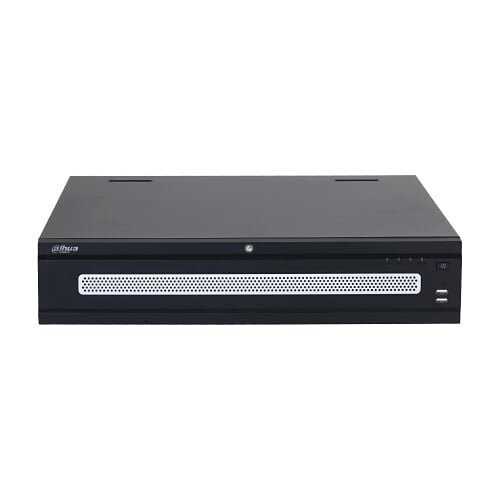

    Network Video Recorder Dahua NVR NVR608RH-64-XI

    Inquire about this item
    Price 4770.69 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua
    • General
    • ModelDahua DHI-NVR608RH-64-XI
    • Type64 Channels 2U 8HDDs WizMind Network Video Recorder
    • Main ProcessorIndustrial-grade processor
    • Operating SystemEmbedded Linux
    • Operating InterfaceWeb, Local GUI
    • AI by RecorderFace detection, face recognition, video metadata (human, motor vehicles, non-motor vehicles), SMD Plus
    • AI by CameraFace detection, face recognition, video metadata, SMD Plus, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, object monitoring
    • Perimeter Protection (Recorder)24 channels, 10 IVS rules per channel
    • Perimeter Protection (Camera)64 channels
    • Face Detection AttributesGender, age group, glasses, expressions, face mask, beard
    • Face Detection (Recorder)4 channels (up to 12 face images/s per channel)
    • Face Detection (Camera)64 channels
    • Face Recognition DatabaseUp to 40 face databases, 300,000 images total, 48 GB capacity, supports name, gender, birthday, address, credential info, countries & regions
    • Face Recognition (Recorder)20 FD (by camera) + FR (by recorder), 20 face images/s; or 4 FD + FR (by recorder), 12 face images/s
    • Face Recognition (Camera)64 channels
    • SMD Plus by Recorder32 channels: Filters humans/motor vehicles, reduces false alarms from leaves, rain, light
    • SMD Plus by Camera64 channels
    • Video Metadata by Recorder8 channels
    • Video Metadata by Camera32 channels
    • Human AttributesTop color/type, hat, bag, age, gender, umbrella
    • Motor Vehicle AttributesPlate, color, model, logo, ornament, calling
    • Non-Motor Vehicle AttributesModel, color, passenger count, helmet
    • ANPR by Camera32 channels
    • License Plate Database20,000 blocklist/allowlist entries
    • Access Channels64 channels
    • Network Bandwidth (AI off)1024 Mbps incoming/recording, 800 Mbps outgoing
    • Network Bandwidth (AI on)512 Mbps incoming/recording, 400 Mbps outgoing
    • Supported Resolutions32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p, 720p, D1
    • Decoding Capability2×32 MP@30fps, 2×24 MP@30fps, 4×16 MP@30fps, 8×8 MP@30fps, 16×4 MP@30fps, 32×1080p@30fps, 72×720p@30fps, 160×D1@30fps
    • Video Output2 VGA, 4 HDMI; max HDMI3: 8K, HDMI1/2: 4K, HDMI4/VGA: 1080p
    • Multi-screen DisplayMain: 1/4/8/9/16/25/36/64; Sub: 1/4/8/9/16/25/36
    • Third-party Camera AccessONVIF, Sony, Axis, Arecont, Pelco, Canon, Samsung
    • Video CompressionSmart H.265+, H.265, Smart H.264+, H.264, MPEG4, MJPEG
    • Audio CompressionG.711a, G.711u, PCM, G726
    • Network ProtocolsHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, ISCSI
    • Mobile AccessiOS, Android
    • InteroperabilityONVIF (Profiles S/T/G), CGI, SDK
    • Web Browser CompatibilityChrome, IE 9+, Firefox
    • Network ModeMulti-address, load balancing, fault tolerance, port binding
    • Playback ChannelsUp to 16 channels
    • Recording ModesManual, alarm, motion detection, schedule
    • Backup MethodsUSB, portable HDD, eSATA, network, burner
    • Playback ControlsPlay, pause, stop, fast/reverse, frame-by-frame, full screen, cut/file backup, zoom, audio on/off
    • Storage ConfigurationDisk groups, RAID 0/1/5/6/10, hot-swapping
    • Alarm Input/Output16 input channels, 8 output channels
    • General AlarmsMotion detection, tampering, video loss, scene change, PIR, IPC external alarm
    • Anomaly AlarmsCamera offline, storage error, disk full, IP/MAC conflict, login lock, fan abnormality
    • Smart AlarmsFace detection/recognition, intrusion/tripwire, SMD Plus, ANPR, people counting, stereo analysis, heat map
    • Alarm LinkageRecord, snapshot, IPC alarm out, buzzer, log, preset, email
    • Audio Input1 RCA
    • Audio Output2 RCA
    • HDD Interface8 SATA ports, up to 16 TB per drive (depends on environment)
    • eSATA1 port
    • RS-232 / RS-4851 RS-232, 1× RS-485 A/B
    • USB Ports4 (2× USB 2.0 front, 2× USB 3.0 rear)
    • HDMI / VGA Ports4 HDMI, 2 VGA
    • Network Ports2 (10/100/1000/2500 Mbps, RJ-45)
    • Power Supply100–240 VAC, 50/60 Hz
    • Redundant PowerYes
    • Power Consumption<18 W (without HDD)
    • Net Weight8.14 kg (17.95 lb)
    • Gross Weight12.24 kg (26.98 lb)
    • Product Dimensions444 × 476 × 95 mm (17.48 × 18.74 × 3.74 in)
    • Packaging Dimensions571 × 618 × 219 mm (22.48 × 24.33 × 8.62 in)
    • Operating Temperature–10 °C to +55 °C (14 °F to 131 °F)
    • Operating Humidity10%–93% RH
    • InstallationType Rack or desktop
    • CertificationsFCC Part15 Class A; CE-EMC EN 55032:2020 Class A; EN 61000-3-2/3; EN 55024; EN 55035; EN 50130-4; CE-LVD EN 62368-1
