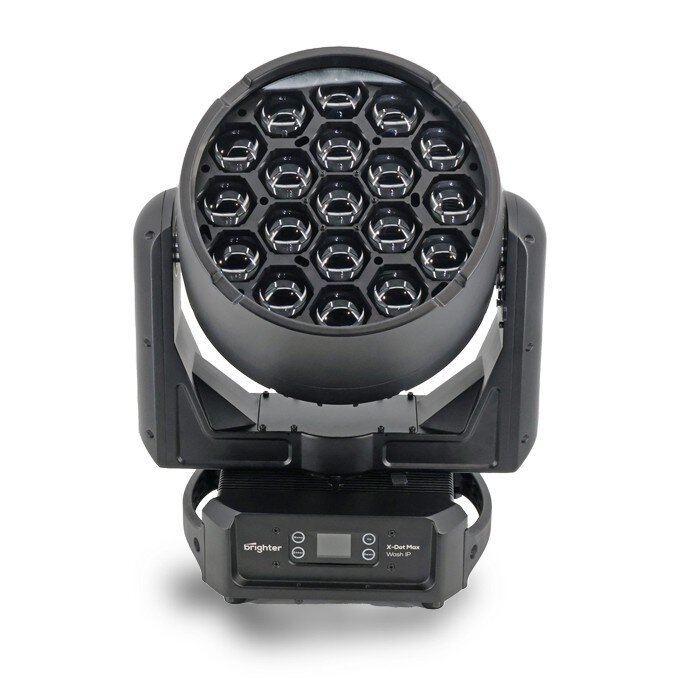

  •   Moving head BRIGHTER X-DOT MAX (IP65, 24,000lm, 514x430x280mm, 23kg)

    Moving head BRIGHTER X-DOT MAX (IP65, 24,000lm, 514x430x280mm, 23kg)

    Inquire about this item
    Price 5963.17 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • Specifications
    • Maximum Power Consumption1500W
    • Light Source19x 60W 4-in-1 RGBL LED + 76x 1W RGB Dot Glow LED
    • Estimated Light Source Lifespan50 000h
    • Power Supply Voltage100-240V, 50/60Hz
    • Specifications
    • Total lumen output24000lm
    • Lux145200 lux @3m (zoom narrow, RGBL), 5230 lux @3m (zoom wide, RGBL)
    • CRI>79Ra (2000K-8000K)
    • TLCI79@3200K, 79@5600K
    • TM-30 RF86@3200K, 84@5600K
    • TM-30 RG111@3200K, 113@5600K
    • Zoom4° – 50°
    • DimmerElectronic 0-100%
    • Movement Range540°/210° pan/tilt
    • Lens rotation function in both directions
    • Ability to independently control each diode
    • Operating ModesDMX512/ArtNet/sACN/RDM/Manual
    • DMX Channels28/35/40/99/252/322
    • Specifications
    • Protection LevelIP65
    • Dimensions514x430x280 mm
    • Weight23kg
    • Power Supply Sockets StandardPowerCon True1 (IN/OUT)
    • DMX Sockets5-pin
    • Art-Net SocketsRJ45
    • Specifications
    • Power cable PowerCon True1
    • DMX cable
    • Art-Net cable
    • Safety wire
    • Omega brackets
    • User Manual
    • DMX PersonalitiesChamsys, MA, Avolites, ONYX, Vista, Hog 4, GDTF
    • Light source
    • Light source19X60W + 76x1W
    • Protection Rating
    • Protection RatingIP65
    • Effect
    • EffectDot Glow
