  •   Modem–router Cudy P2 1.0

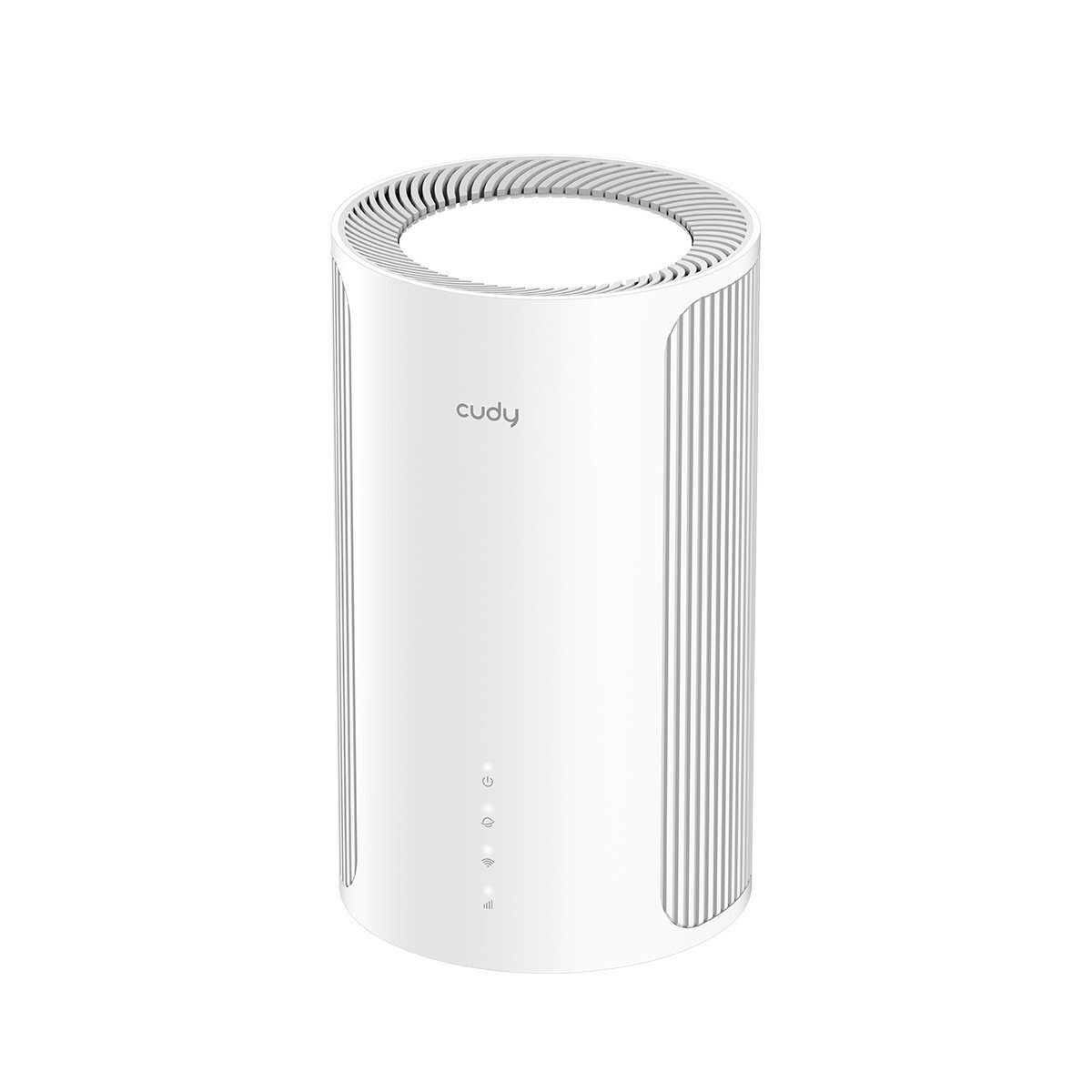

    Modem–router Cudy P2 1.0

    Inquire about this item
    Price 191.68 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionP2 1.0
    • CPU1.3 GHz Dual-Core, ARM Cortex-A53
    • Flash/ROM128 MB (1 Gbit) NAND
    • DDR/RAM256 MB (2 Gbit) DDR3
    • Cellular Standards5G Rel. 15, DL 4G Cat. 12 / UL 4G Cat. 13
    • Cellular Antennas4× Internal, 2× SMA Connectors for Customized Antennas
    • Detachable Cellular Antennas ConnectorSMA Female
    • SIM Options1× Nano SIM Slot, eSIM (optional)
    • Available VersionsEU
    • EU Version CellularSuitable for Europe, Middle East, Africa, Asia-Pacific, Latin America
    • Max DL Speed2.6 Gbps (NSA), 2 Gbps (SA)
    • Max UL Speed650 Mbps (NSA), 1 Gbps (SA)
    • Advanced Features5G+4G Dual Connectivity, DL 4×4 MIMO, UL 2×2 MIMO
    • Cellular Bands5G Sub-6 GHz: n1/3/5/7/8/20/28/38/40/41/66/77/78; LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66; WCDMA: B1/2/5/8
    • 5 GHz Wi-Fi Speed2402 Mbps
    • 2.4 GHz Wi-Fi Speed574 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi AntennasInternal
    • 5 GHz Antenna Gain Max4.07 dBi
    • 2.4 GHz Antenna Gain Max3.98 dBi
    • BeamformingTrue
    • FEM or PA/LNA5 GHz: 3× Internal, 2.4 GHz: 2× Internal
    • Wi-Fi Range PerformanceMax: 170 m (558 ft) in open-space with minimal interference
    • Wall PerformanceTwo wooden walls (<10 cm thick), One concrete wall (<20 cm thick)
    • Physical ButtonsWPS Button, Reset Button
    • Gigabit RJ45 Ports2 (1× WAN/LAN configurable, 1× LAN)
    • FXS Ports1× RJ11 (VoNR/VoLTE) (Optional)
    • LED IndicatorsPower, Internet, Wi-Fi, Cellular
    • Power InputDC Jack
    • Power MethodsDC
    • DC Input12V 1.5A
    • Power AdapterInput: 100–240 V, 50/60 Hz AC; Output: 12V 1.5A DC
    • EMS ProtectionESD: Contact 4kV, Air 8kV
    • Operating Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
    • Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
    • Operating Humidity10% to 90% (non-condensing)
    • Storage Humidity5% to 90% (non-condensing)
    • CertificationsFCC, CE
    • DimensionsΦ116 × 202 mm (Φ4.57 × 7.95 inches)
    • Product Weight650.8 g (22.96 oz.)
    • InstallationType: Desktop
    • Package ContentsP2, Power Adapter, Ethernet Cable, Installation Guide
