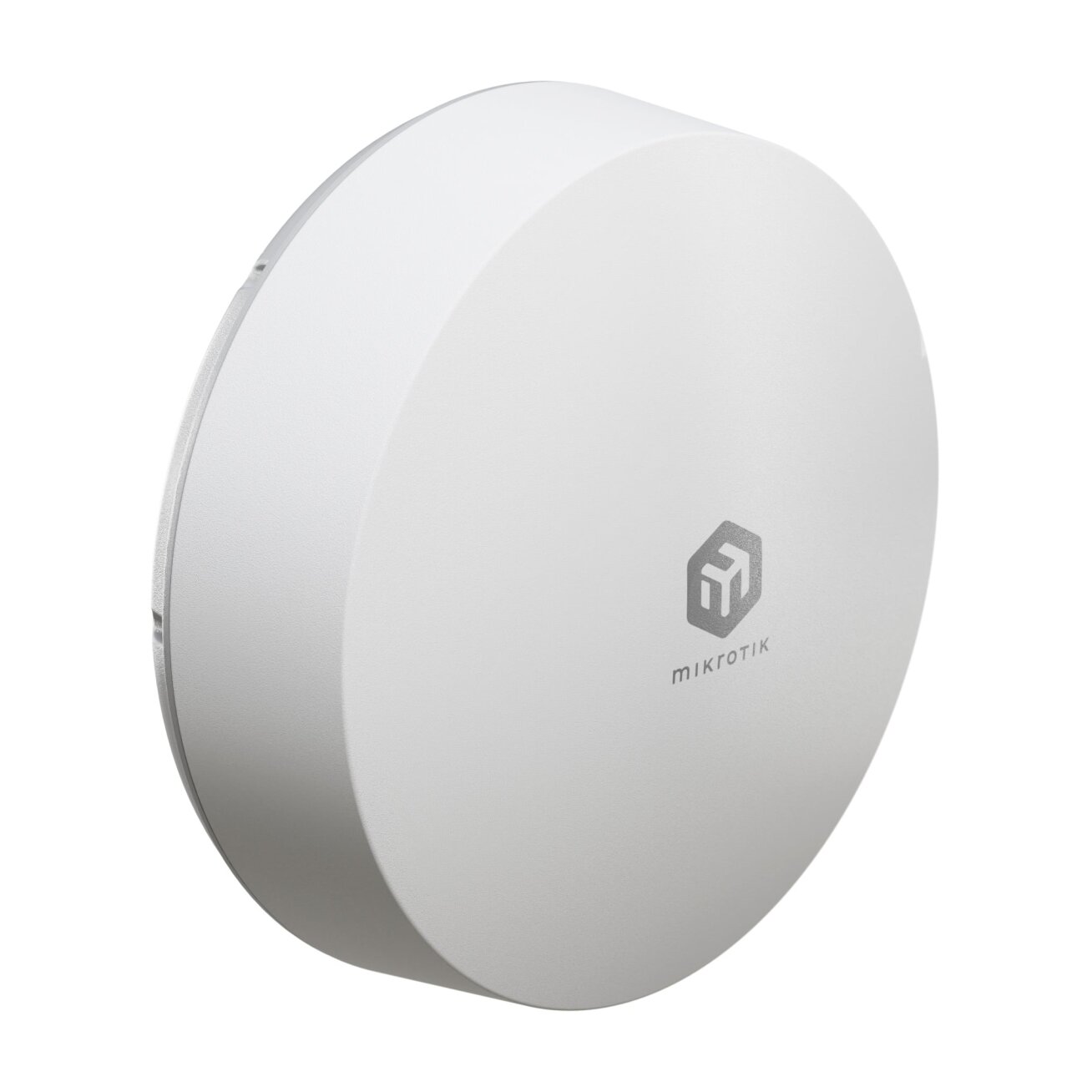

Modem-router MikroTik ATL 5G R16 ATLGM-RG520F
-
- Specifications
- Product codeATLGM&RG520F-EU
- ArchitectureARM 64bit
- CPU88F3720
- CPU core count2
- CPU nominal frequency800 MHz
- CPU Threads count2
- RouterOS license3
- Operating SystemRouterOS v7
- Size of RAM512 MB
- Storage size32 MB
- Storage typeFLASH
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-40°C to 70°C
- Powering
- Number of DC inputs1 (PoE-IN)
- Max power consumption10 W
- Max power consumption without attachments10 W
- PoE in802.3af/at
- Cooling typePassive
- PoE in input Voltage12-56 V
- Mobile
- 3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands1 (2100MHz) 5 (850MHz) 8 (900MHz)
- LTE Category20 (2.0 Gbps Downlink, 200 Mbps Uplink)
- MIMO DL4x4
- LTE FDD bands20 (800MHz) 28 (700MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 1 (2100MHz) 32 (1500 MHz)
- LTE TDD bands40 (2300MHz) 38 (2600MHz) 41 (2500MHz) 42 (3500MHz) 43 (3700 MHz)
- 5G NSA FDD bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz)
- 5G NSA TDD bands40 (2300 MHz) 41 (2500 MHz) 77 (3700 MHz) 78 (3500 MHz) 76 (1500 MHz) 38 (2600 MHz) 75 (1500 MHz)
- 5G SA FDD bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz)
- 5G SA TDD bands38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz)
- TAC86945405
- Ethernet
- 10/100/1000 Ethernet ports1
- Number of 1G Ethernet ports with Reverse PoE (PoE-in)1
- Peripherals
- Number of SIM slots1 Modem (Micro SIM)
- Number of M.2 slots1
- Other
- Mode buttonYes
- eSIMYes
- Certification & Approvals
- CertificationCE, EAC, ROHS
- IP66
