  •   Microwave sensor FORTEZA FMC24 PRO (50m)

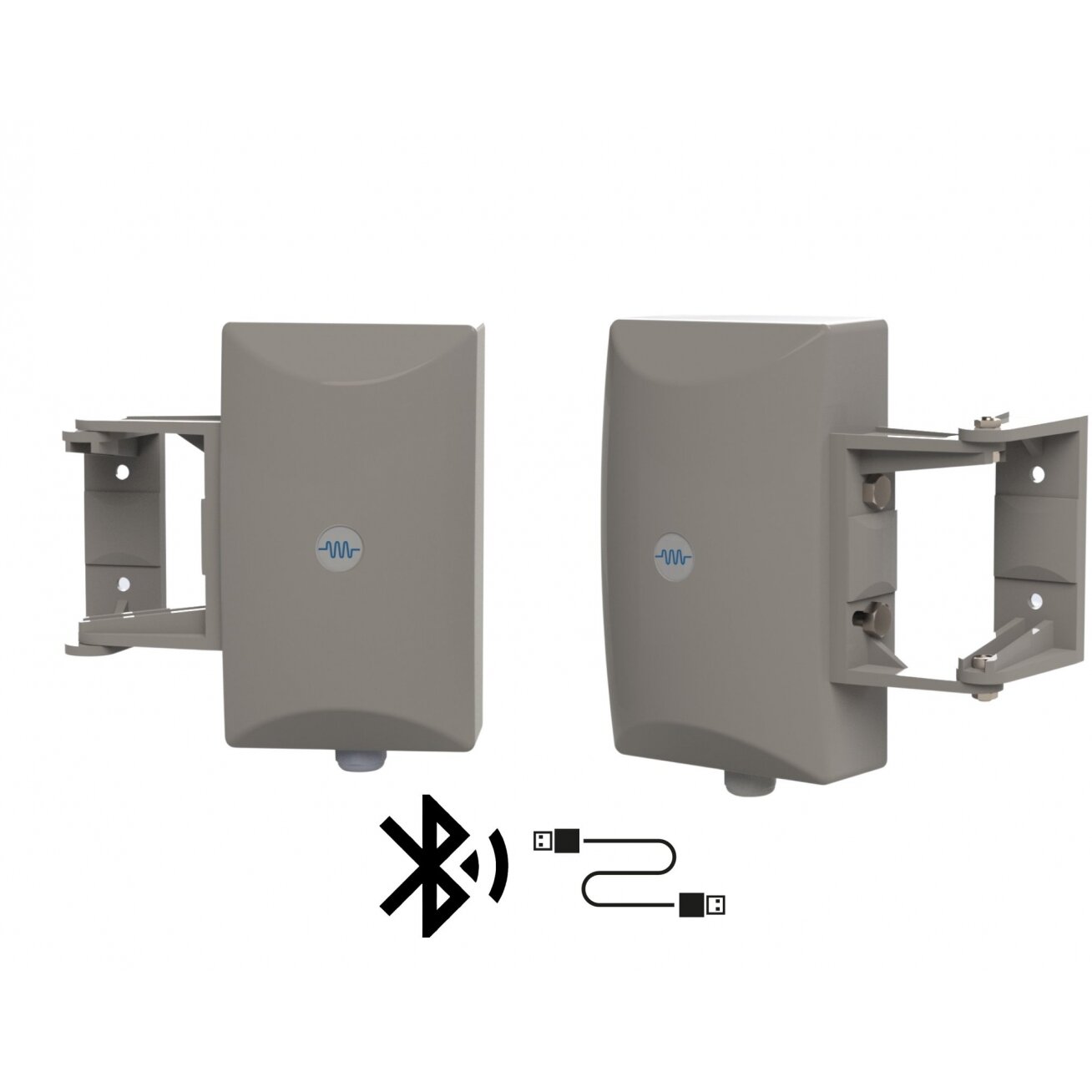

    Microwave sensor FORTEZA FMC24 PRO (50m)

    Inquire about this item
    Price 1101.38 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Forteza

  • The length of the detection zone, in the middle of the section, at the maximum length10 ... 50 m
    Height of the detection zone, in the middle of the section, at maximum lengthup to 1.6 m
    The width of the detection zone, in the middle of the section, at the maximum length

    < 1 m

    Speed of offenders movement0.1 m/s to 8 m/s
    Number of frequency channels8
    Power supply voltage9 ... 30 V
    Current used: Tx (transmitter)≤ 190 mA (12VDC), up to 79 mA
    Current used: Rx (receiver)≤ 190 mA (12VDC), up to 111 mA
    Switched voltageup to 30 V
    Switched currentup to 0.1 A
    Resistance of the alarm relay contactsup to 100 Om
    Length of blind spot2 ... 4 m
    Standby time after power onup to 30 s
    Standby time after power offup to 1 s
    Tamper button voltageup to 30 V
    The current used by the tamper buttonup to 0.1 A
    Security classIP55
    InterfacesUSB, Bluetooth, RS-485
    Dimensions165x97x65 mm
