  •   LTE Mobile Network Antenna with Integrated Modem MikroTik LHGGR R11e-LTE7

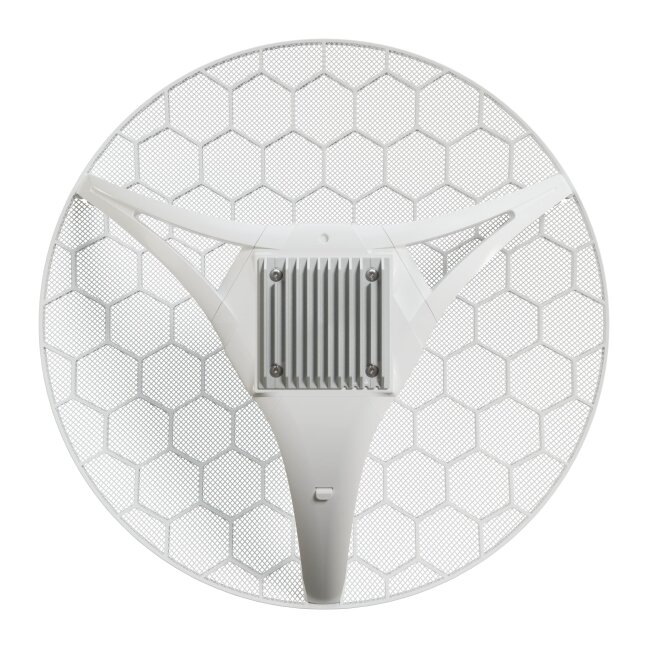

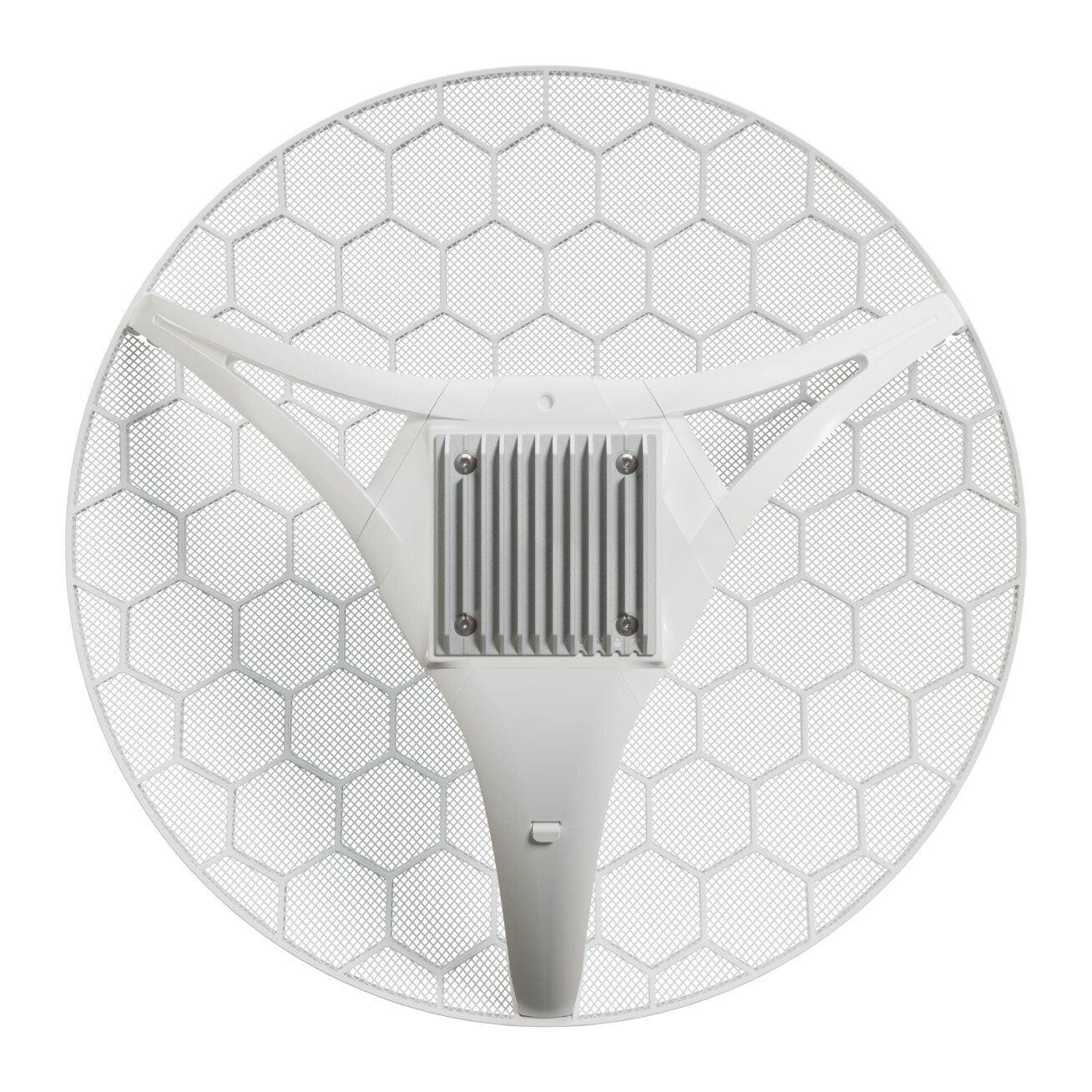

    LTE Mobile Network Antenna with Integrated Modem MikroTik LHGGR R11e-LTE7

    Inquire about this item
    Price 181.11 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • Specifications
    • Product codeLHGGR&R11e-LTE7
    • ArchitectureARM 64bit
    • CPU88F3720
    • CPU core count2
    • CPU nominal frequency800 MHz
    • CPU Threads count2
    • RouterOS license3
    • Operating SystemRouterOS v7
    • Size of RAM256 MB
    • Storage size16 MB
    • Storage typeFLASH
    • MTBFApproximately 200'000 hours at 25C
    • Tested ambient temperature-40°C to 70°C
    • Powering
    • Number of DC inputs1 (PoE-IN)
    • Max power consumption8 W
    • Max power consumption without attachments8 W
    • PoE in802.3af/at
    • Cooling typePassive
    • PoE in input Voltage12-57 V
    • Mobile
    • 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
    • 3G bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz)
    • LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
    • MIMO DL2x2
    • MIMO UL1x1
    • LTE FDD bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz)
    • LTE TDD bands38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz)
    • TAC35312597
    • Ethernet
    • 10/100/1000 Ethernet ports1
    • Peripherals
    • Number of SIM slots1 Modem (Micro SIM)
    • MiniPCI-e slots1
    • Other
    • Mode buttonYes
    • Certification & Approvals
    • CertificationCE, EAC, ROHS
    • IP54
