  •   Loudspeaker Hikvision DS-QAZ1325G1T (IP, 25W, 83dB, 8 Om)

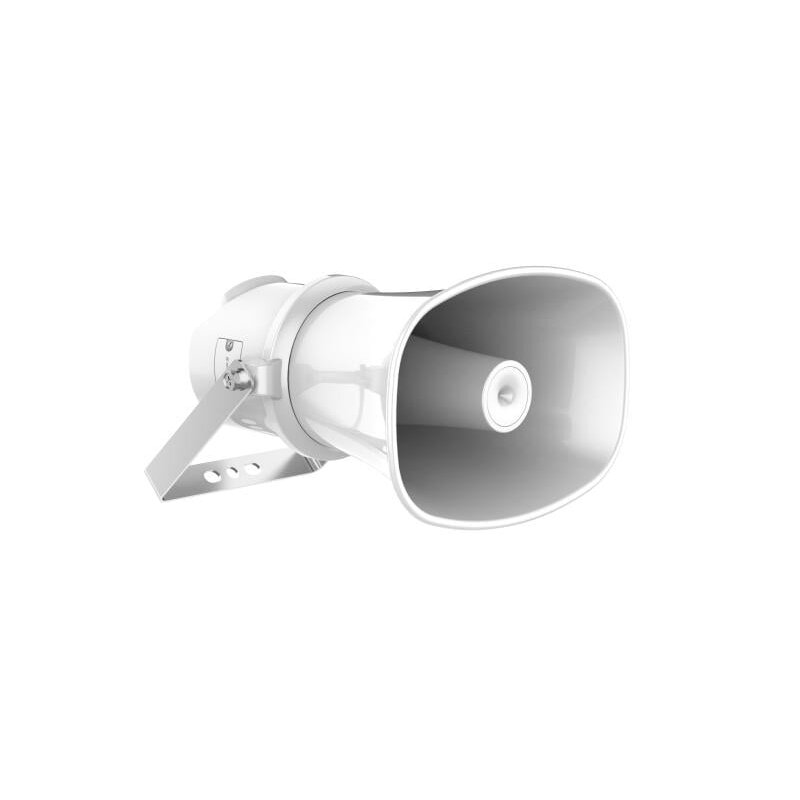

    Loudspeaker Hikvision DS-QAZ1325G1T (IP, 25W, 83dB, 8 Om)

    Inquire about this item
    Price 382.92 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Microphone
    • Typeelectret
    • Amount2
    • Frequency Response100 Hz to 20 kHz
    • Sensitivity-42 dBV/Pa
    • Sampling Rate48 kHz
    • Quantization Bits16 bit
    • Speaker
    • Rated Power25 W
    • Impedance8 Ω
    • Max. Acoustic Pressure124 dBSPL
    • Direction70° horizontal by 100° vertical
    • Frequency Response300 Hz to 8 kHz
    • SNR83 dB
    • Function
    • Audio AlgorithmAEC、AGC、ANS、DRC
    • Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
    • Audio File FormatMP3, WAV
    • NTP TimingSupport
    • BroadcastRegular broadcast, live broadcast, emergency broadcast
    • Two-Way AudioSupport
    • Speech SynthesisEnglish
    • Communication
    • Communication MethodSupport wired network communication
    • Interface
    • AlarmAlarm input ×1
    • Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
    • Power Output12 VDC, 25 mA(max.)
    • Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
    • APIISAPI, ISUP
    • ResetSupport
    • General
    • MaterialMetal
    • Operating Temperature-30 °C to 60 °C(-22 °F to 140 °F)
    • Operating Humidity＜90% (No condensation)
    • Language5 languages: English, French, Spanish, German, Italian
    • Dimension175 mm × 237 mm × 272 mm(6.9" × 9.3" × 10.7")
    • Power24 VDC , 1167mA , 28W
    • Package Dimension310 mm × 245 mm × 400 mm(12.2" × 9.6" × 15.6")
    • WeightApprox. 2.1 kg (4.63 lb.)
    • ColorWhite
    • With Package WeightApprox. 3.4 kg (7.50 lb.)
    • Packing List

      Device × 1

      Threading cap × 1

      Regulatory Compliance and Safety Information × 1

    • Approval
    • ProtectionIP67
    • EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
    • Safety

      CB: IEC 62368-1:2014

      CE-LVD: EN 62368-1:2014/A11:2017

    • Environment

      CE-RoHS: 2011/65/EU

      WEEE: 2012/19/EU

      Reach: Regulation (EC) No 1907/2006
