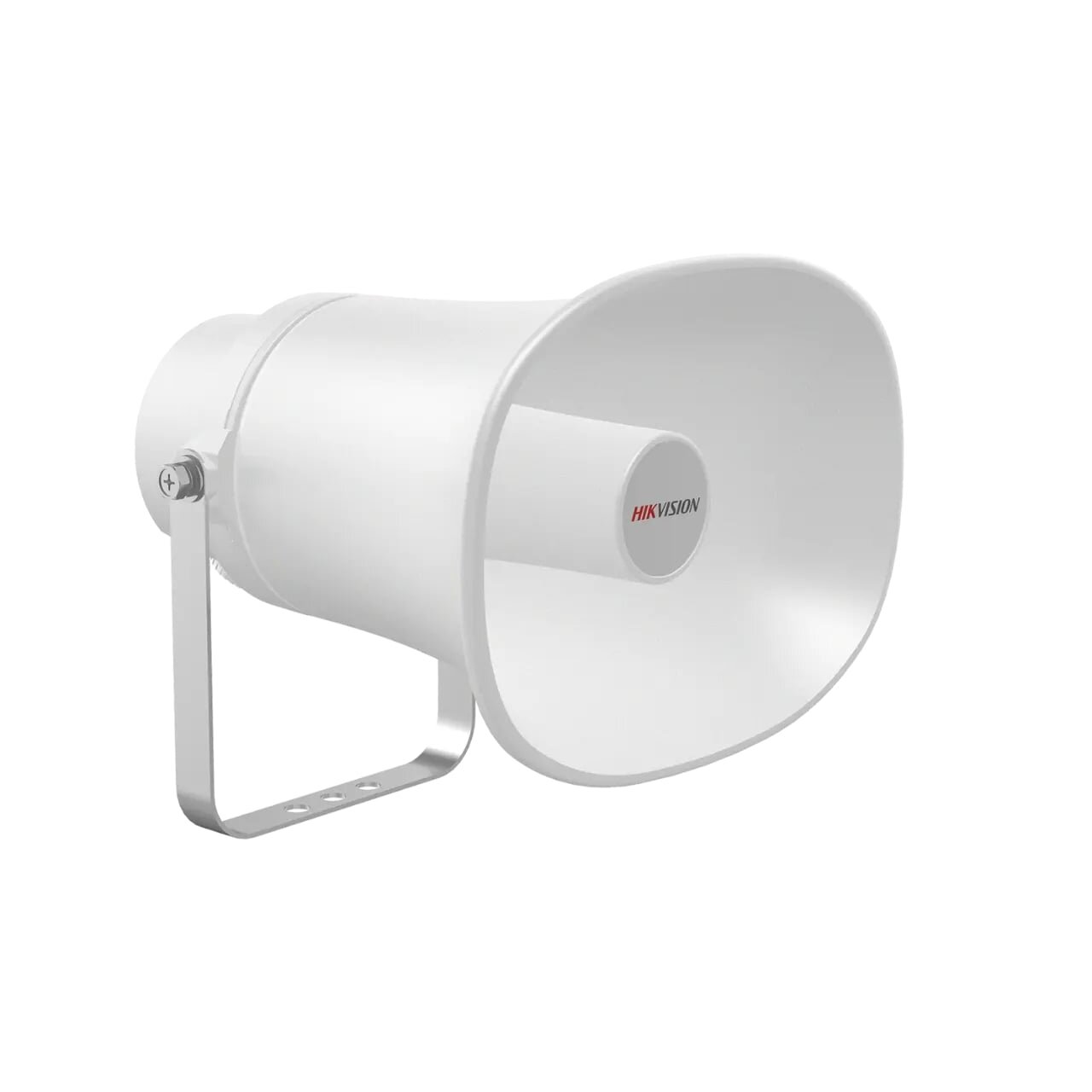

  •   Loudspeaker Hikvision DS-PA0103-B (15W, 120dB, IP67)

    Loudspeaker Hikvision DS-PA0103-B (15W, 120dB, IP67)

    Inquire about this item
    Price 480.02 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Hikvision

    • Parameters
    • Max sound pressure level120 db
    • Network Interface10/100Base-TX self-adaptive network, RJ45 interface
    • Network ProtocolTCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
    • Audio ProtocolMP3, G.711a/u, G.722
    • StorageMicro SD Card, up to 32 GB
    • MIC Input0.2 Vrms
    • Speaker Output8 Vrms
    • Power InputPoE (IEEE 802.3af), maximum 13 W
    • Approvals

      EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024,

      EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,

      ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,

      KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,

      IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2,

      IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64,

      IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,

      NEMA 250 Type 4X, CNS 13438

    • ColorWhite
    • WeightApprox. 1.5 kg (3.31 lb.)
    • Material

      Casing: aluminum alloy

      Rear cover: stainless steel

    • Dimension

      With bracket: 242 mm × 182 mm × 338.5 mm (9.53" × 7.17\" × 13.33\")

      Without bracket: 242 mm × 182 mm × 250 mm (9.53 × 7.17\" × 9.84\")"

    • Power consumption< 1 W (without sound), maximum 13 W (producing sound)
    • Protection levelIP67
    • Operating Temperature-40°C to 60°C (-40°F to 140°F)
    • Frequency Response300 Hz~12.5 kHz
    • Coverage Pattern70° horizontal by 100° vertical
    • Amplifier DescriptionBuilt-in 15 W Class-D amplifier
