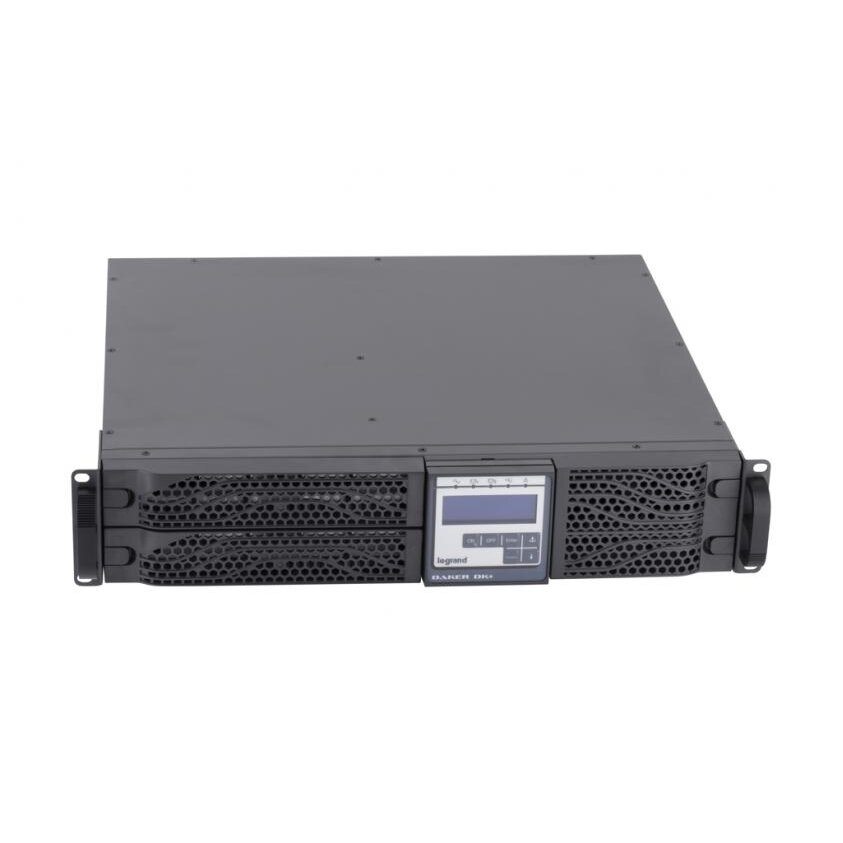

Legrand 310170 UPS + USB IP20 (Rack/Tower, 1000VA/900W)
-
Legrand 310170 UPS + USB IP20 (Rack/Tower, 1000VA/900W)
-
- General
- Input voltage176-280 V
- Primary frequency47.5-63 Hz
- Number of phases primary1
- Output voltage228-232 V
- Secondary frequency50-60 Hz
- Output effective power900 W
- Output apparent power1000 VA
- USB interfaceYes
- With communication interface RS-232Yes
- Number of phases secondary1
- SNMPYes
- Voltage typeAC
- Height88 mm
- Width440 mm
- Depth405 mm
- Weight16 kg
- Bridging time full load0 min
- Suitable for network-managementYes
- USV- technologyOnline
- Construction type482.6 mm (19 inch) device
- ModularNo
- Max. voltage distortion output (linear load)3 %
- Output power factor0.9
- Overall efficiency90 %
- Efficiency in eco-mode97 %
- Potential free switch contactNo
- Auto shut down functionNo
- Input connectionC14
- Number of output connections C136
- Number of output connections C190
- Number of output connections with protective contact CEE 7/3 (type F)0
- Number of output connections fixed connection0
- Number of output connections French standard (Type E)0
- Degree of protection (IP)IP21
- Operating / setting temperature0-40 °C
- Storage temperature0-50 °C
- Supply current4.7-4.9 A
- Sound level50 dB
- Terminal marking indicationYes
- Type of loadUniversal
- With socket outletYes
- Contains Batteries and/or AccumulatorYes
