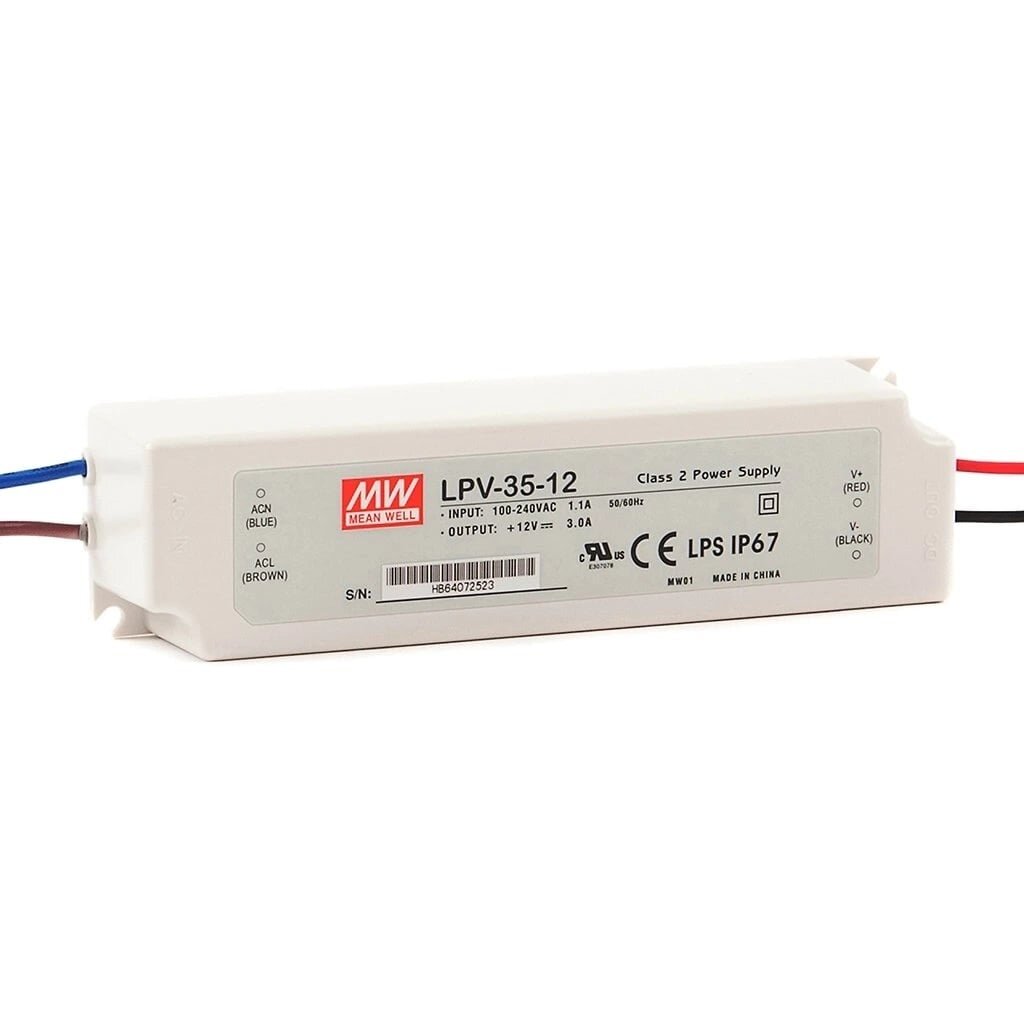

LED switching power supply 12V 36W 3A IP67 Mean Well LPV-35-12
-
LED switching power supply 12V 36W 3A IP67 Mean Well LPV-35-12
-
- General
- ModelLPV-35-12
- DC Voltage12V
- Rated Current3A
- Current Range0 ~ 3A
- Rated Power36W
- Ripple & Noise (max.)120mVp-p
- Voltage Tolerance±5.0%
- Line Regulation±1.0%
- Load Regulation±2.0%
- Setup, Rise Time500ms, 20ms / 230VAC; 500ms, 20ms / 115VAC at full load
- Hold Up Time50ms / 230VAC; 16ms / 115VAC at full load
- Voltage Range90 ~ 264VAC; 127 ~ 370VDC
- Frequency Range47 ~ 63Hz
- Efficiency (Typ.)84%
- AC Current (Typ.)1.1A / 115VAC; 0.7A / 230VAC
- Inrush Current (Typ.)55A at 230VAC (cold start)
- Leakage Current0.25mA / 240VAC
- Overload Protection110 ~ 150% rated output power; hiccup mode; auto recovery
- Over Voltage Protection13.8 ~ 16.2V; shut down output; re-power on to recover
- Withstand VoltageI/P-O/P: 3KVAC
- Isolation ResistanceI/P-O/P: >100M Ohms / 500VDC / 25℃ / 70% RH
- Working Temperature-30 ~ +65℃ (Refer to Derating Curve)
- Working Humidity20 ~ 90% RH non-condensing
- Storage Temperature & Humidity-40 ~ +80℃; 10 ~ 95% RH
- Temp. Coefficient±0.03%/℃ (0 ~ 50℃)
- Vibration10 ~ 500Hz, 2G 10min./1cycle, 60min. on X, Y, Z axes
- MTBF5170.3K hrs min. (Telcordia SR-332); 743.5K hrs min. (MIL-HDBK-217F, 25℃)
- Dimension148 x 40 x 30 mm (L x W x H)
- CertificationsUL1310 Class 2, CAN/CSA No. 223-M91, BIS IS15885, IEC62368-1, EAC TP TC 004, IP67, EN62368-1
- EMC EmissionEN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020
- EMC ImmunityEN61000-4-2,3,4,5,6,8,11; EN55035; light industry level, EAC TP TC 020
- Packing0.31Kg/unit; 40pcs/13.5Kg/0.73CUFT
- FeaturesConstant voltage design, universal AC input/full range, withstand 300VAC surge input for 5 seconds, protections: short circuit/overload/overvoltage, cooling by free air convection, compact size, fully encapsulated with IP67, fully isolated plastic case, Class II power unit, Class 2 power unit, LPS compliant, suitable for LED-related fixtures/appliances, 100% full load burn-in test, high reliability, 2-year warranty
- Max. No. of PSUs on 16A Circuit Breaker4 units (Type B) / 7 units (Type C) at 230VAC
