  •   LED module Hikvision DS-D4019CF-1F

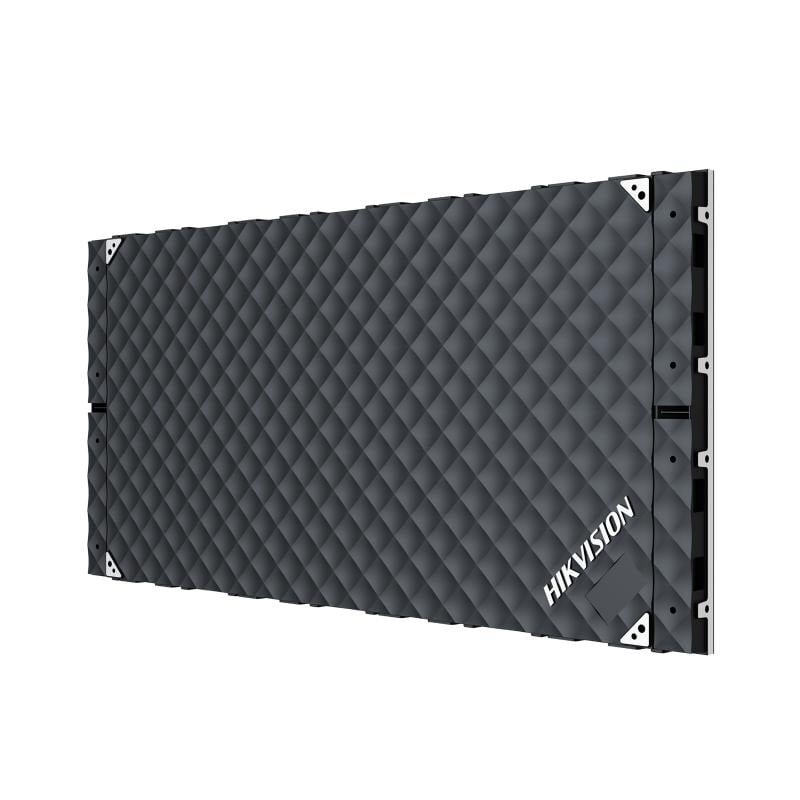

    LED module Hikvision DS-D4019CF-1F

    Inquire about this item
    Price 1243.61 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision
    • Bracket
    • Modular BracketDS-DL111050W 1*1;DS-DL211050W 2*1
    • Cabinet
    • Area0.5 m²
    • Cabinet Flatness0.1 mm (0.0039")
    • Cabinet MaterialAluminum die casting
    • Dimensions (W × H × D)1000 mm × 500 mm × 50 mm (39.370" × 19.685" × 1.969")
    • Lamp Board HousingWith housing
    • Maintenance MethodFront maintenance for all components
    • Modules Component2 × 4
    • Pixel ConfigurationSMD Triad LED
    • Pixel Density262144‬ dots/m²
    • Pixel Pitch1.9531 mm
    • Pixel Pitch CategoryP1.9
    • Protection LevelFront protection level IP60
    • Resolution512 × 256
    • Weight10.54 Kg (23.237 lb)
    • Display
    • Brightness Uniformity≥ 97％
    • Color Temperature3000 K to 10000 K adjustable
    • Color Uniformity≤ ± 0.003Cx，Cy
    • Contrast Ratio≥ 5000:1
    • Viewing AngleHorizontal 160°, vertical 160°
    • White Balance Brightness800 cd/m² (Peak 1000 cd/m²)
    • General
    • Gross Weight20.4 kg (34.488" × 5.354" × 12.992") (Carton，1 cabinet in 1 box) 102 kg (36.023" × 40.984" × 27.755") (Carton，5 cabinets in 1 box)
    • LifespanLamp 100,000 hours
    • Package Dimension (W × H × D)1180 mm × 136 mm × 605 mm (46.456" × 5.354" × 23.818") (Carton，1 cabinet in 1 box) 1237 mm × 1041 mm × 652 mm (48.700" × 40.984" × 25.669") (Carton，5 cabinets in 1 box)
    • Power
    • Average Consumption< 194 W/m²
    • Max. Consumption≤ 582 W/m²
    • Power Supply110~220 VAC ± 15%
    • Processing Performance
    • Display Color281 trillion
    • Driving MethodConstant current driving
    • Frame Frequency60 Hz
    • Grey LevelUp to 18 bit
    • Refresh RateUp to 3840 Hz
    • Working Environment
    • Storage Humidity10%~80%RH
    • Storage Temperature-20 to 60 °C (-4 °F to 140°F)
    • Working Humidity10%~80%RH
    • Working Temperature-10 to 40 °C (14 °F to 104 °F)
