  •   LED display module Hikvision DS-D4012BW-2FC/A

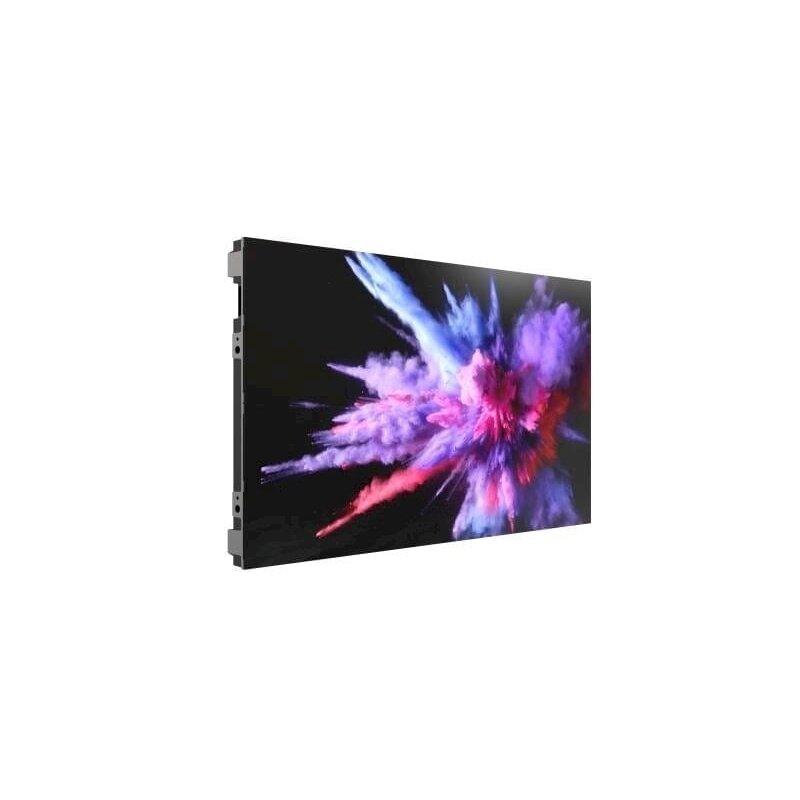

    LED display module Hikvision DS-D4012BW-2FC/A

    Inquire about this item
    Price 218.62 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision
    • Bracket
    • Modular BracketDS-DL116033W 1*1;DS-DL126033W 1*2;DS-DL226033W 2*2
    • Cabinet
    • Area0.2025 ㎡
    • Cabinet MaterialAluminium die casting
    • Dimensions (W × H × D)600 mm × 337.5 mm × 29.3 mm (23.622" × 13.287" × 1.154")
    • Maintenance MethodFront maintenance for all components
    • Modules Component2 × 2
    • Pixel ConfigurationFlip-chip COB
    • Pixel Density640000 dots/㎡
    • Pixel Pitch1.25 mm
    • Pixel Pitch CategoryP1.2
    • Resolution480 × 270
    • Weight3.4 kg
    • Display
    • Brightness Uniformity≥ 97％
    • Color Temperature3000-10000 K adjustable
    • Color Uniformity≤ ± 0.003Cx，Cy
    • Contrast Ratio15000:1
    • Viewing Angle160°(H)/160°(V)
    • White Balance Brightness600 cd/㎡
    • General
    • G.W.4.56 kg（1 package in 1 box）
    • Net Weight3.4 kg
    • Package Dimensions (W × H × D)Module: 4-in-1(443X360X52mm) Structure: 5-in-1(708X393X433mm)
    • Packing ListRegulatory Compliance and Safety Information × 1 Connecting screws, driver IC, iron sheets
    • Module
    • Dimensions300 × 168.75 mm
    • Module Resolution240 × 135
    • Power
    • Average Consumption≤ 100 W/㎡
    • Input Voltage100~240 VAC ± 10％
    • Max. Consumption≤ 300 W/㎡ （600nits）
    • Processing Performance
    • Driving MethodConstant current driving
    • Frame Frequency60 Hz
    • Grey Level16 bit
    • Refresh Rate3840 Hz
    • Product Model
    • Product ModelDS-D4012BW-2FC
    • Product Type
    • Product TypeFine Pixel Pitch Indoor Full-color LED Display
    • Working Environment
    • Storage Humidity10% to 90% RH (without condensation)
    • Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
    • Working Humidity10% to 90% RH (without condensation)
    • Working Temperature-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
