  •   LED controller Hikvision DS-DT60P-02HI04NO

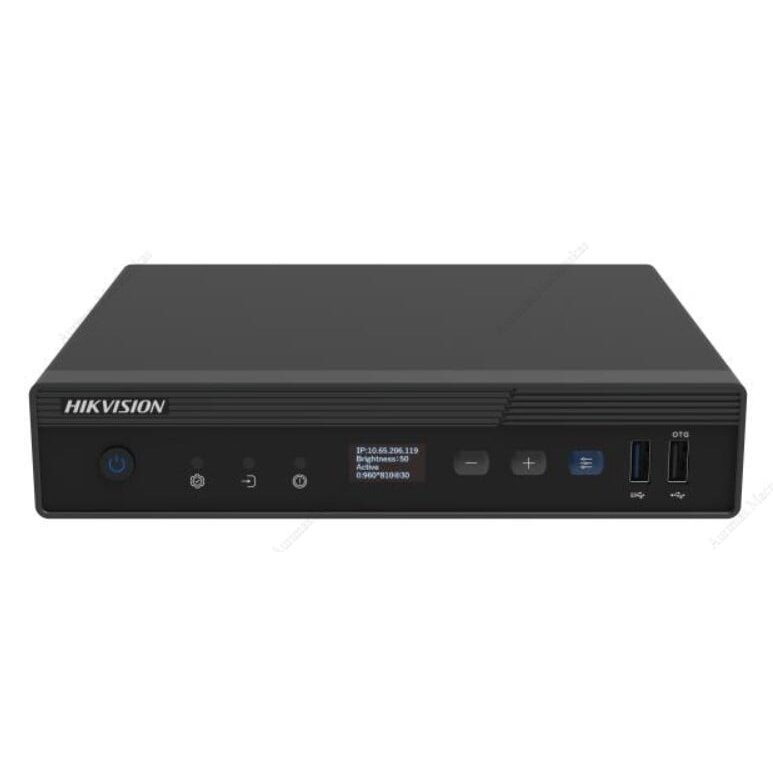

    LED controller Hikvision DS-DT60P-02HI04NO

    Inquire about this item
    Price 1276.79 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Hikvision

    • Processing Performance
    • Brightness Control1 to 100 tunable (level-by-level white balance)
    • Frame Frequency25 Hz to 60 Hz
    • Grey Level256
    • Display Color16 MP
    • Processing Depth8 bit
    • Image ScalingSupported
    • Product Model
    • Product ModelDS-DT60P-02HI04NO
    • Chassis
    • Chassis Height1 U
    • Chassis WidthHalf-width
    • Product Type
    • Product TypeLED controller
    • LED Controller Power
    • Average Consumption≤16.5 W
    • Power Interface Quantity1
    • Power Interface100 to 240 VAC, 50/60 Hz
    • Video Wall
    • Open Windows3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
    • Layers per Device7
    • Scenes10
    • Background Images1
    • Background ResolutionMin.: 640 × 480, Max.: 1920 × 1200
    • Background FormatJPG/JPEG
    • Subtitles1
    • Subtitle Width32760
    • Subtitle FontSupports Xiaomi font and custom font
    • General
    • Working Temperature-10°C to 50°C
    • Storage Humidity10% to 90%
    • Working Humidity10% to 90%
    • Storage Temperature-10°C to 50°C
    • Packaging Size (W × H × D)353 mm × 89 mm × 237 mm (13.90 inch × 3.50 inch × 9.33 inch)
    • Net Weight1.04 kg (2.29 lb.)
    • Gross Weight1.58 kg (3.48 lb.)
    • Dimensions (W × H × D)210 mm × 42 mm × 180 mm (8.26 inch × 1.65 inch × 7.08 inch)
    • Packing List1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × bar antenna, 1× RF remote control
    • Audio Input
    • Audio Input Interfaces3
    • Audio Input Interface Type2 HDMI1.4 + 1 channel of embedded Android
    • Video Input
    • Video Input Interfaces3
    • Video Input Interface Type2 HDMI 1.4 + 1 embedded Android
    • Max. Video Input ResolutionHDMI1.4: 1080p
    • Video Input Resolution

      HDMI 1.4 port

      Max. resolution: 1920 × 1200@60 Hz

      Min. resolution: 320 × 180@60 Hz

      Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz

      Max. width: 320 to 3840, alignment: 2 alignment

      Max. height: 180 to 3840, alignment: 1 alignment

      Supports HDCP 1.4

      Interlacing signal input is not supported.

    • Video Input Processing Feature

      Processing depth: 8 bit

      Sampling format:

      RGB: 444

      YUV: 444

      YUV: 422

    • Video Output
    • Max. Video Output Resolution2.6 Million
    • Video Output ResolutionRJ-45
    • Video Live View Output Interfaces1
    • Type of Video Live View Output InterfaceHDMI 1.4
    • Loading Capacity for Video Output to LED

      Single port loading: 650000

      Width 320-32760; alignment: 2 alignment

      Height 64-5120; alignment: 1 alignment

    • Video Live View Output Resolution720p@60 Hz
    • LED Loading Interfaces4
    • Audio Output
    • Audio Output Interfaces1
    • Audio Output Interface Type3.5 mm audio output
    • System
    • SystemAndroid 12
    • Memory Capacity4 GB
    • Storage Capacity32 GB
    • CPU4-core 64-bit ARM cortex-A55 2.0 GHz
    • Wireless
    • WIFI2.4 GHz
    • BluetoothBluetooth 4.0
    • Antenna1 × bar antenna
    • Remote ControlSupports IR remote control
    • Front Panel
    • Screen128 × 64, OLED screen
    • USB Port1 channel of USB 2.0 + 1 channel of USB 3.0
    • Button

      +: increase brightness

      -: decrease brightness

      Source: change signal source

    • Indicator

      Active: The device is running.

      Source: The signal source is accessed.

      Error: The device operation exception occurs.

    • Power Switch

      On: The device is started and running.

      Off: The device is not powered on or is not started.

    • Control Interface
    • Control Network Port

      2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)

      Connects to the external network and supports multi-device network cascade management.

    • IR Input

      1 × 3.5 mm connector

      Supports the access of IR remote control.

    • Serial Interface

      1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact)

      Baud rate: 115200, data bit: 8

    • Power SwitchButton switch
