  •   IP modular domophone Hikvision DS-KD7003EY-IME2 (Aluminium)

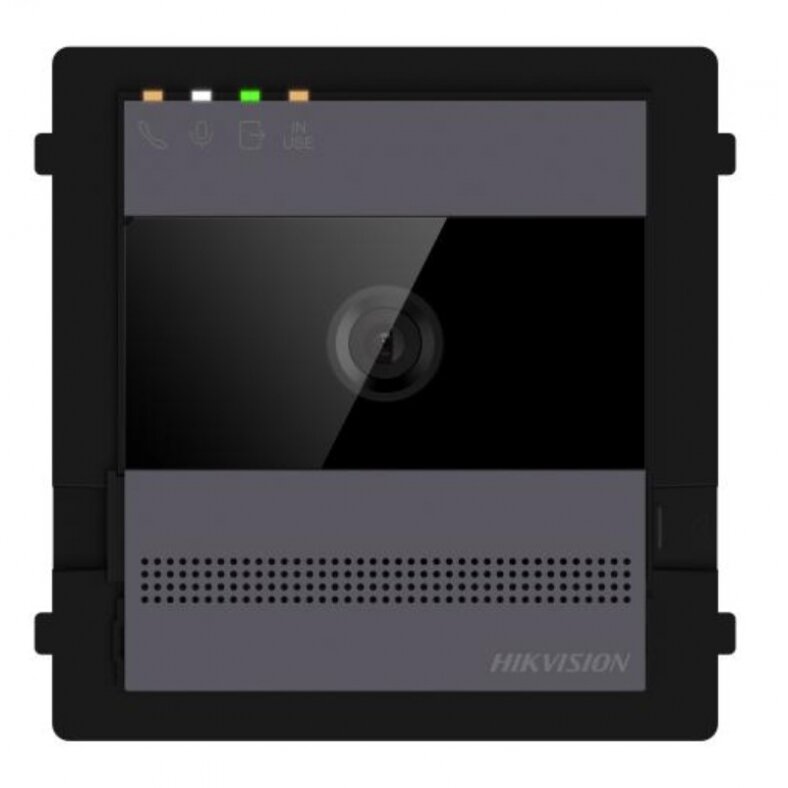

    IP modular domophone Hikvision DS-KD7003EY-IME2 (Aluminium)

    Inquire about this item
    Price 257.71 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • System parameters
    • Operating systemEmbedded Linux operation system
    • ROM4 GB
    • RAM256 MB
    • CPUEmbedded Processor
    • Display parameters
    • Screen sizeNA
    • Operation methodNA
    • TypeNA
    • ResolutionNA
    • Video parameters
    • Supplement lightLow illumination, IR supplement lights
    • Video standardH.264
    • Lens1
    • FOVHorizontal: 133°, Vertical: 82°
    • WDR

      Support

    • Resolution2 MP
    • Audio parameters
    • Audio compression standardG.711 U, G.711 A
    • Audio input

      Built-in omnidirectional microphone

    • Audio outputBuilt-in loudspeaker
    • Audio compression bitrate64 Kbps
    • Audio qualityNoise suppression and echo cancellation
    • Volume adjustmentAdjustable
    • Capacity
    • User capacity2000
    • Linked indoor station capacityMax.99
    • Sub door station capacity16
    • Network parameters
    • Wired network10/100 Mbps self-adaptive through 2-wire interface
    • Wi-FiOnly AP mode for configuration
    • BluetoothNA
    • 3G/4GNA
    • Device interfaces
    • Alarm input2（supports Exit button or Door contact input）
    • Network interfaceNA
    • TAMPER1
    • Exit button1
    • Door contact input1
    • RS-4852 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
    • WiegandNA
    • TF cardNA
    • Alarm outputNA
    • DIP switch6 decimal DIP switch
    • Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
    • Power interface48V，Powered by distributor DS-KAD7060EY or 12VDC
    • Two-wire IP interface1
    • General
    • Button0-2（Flexible adjustment）
    • InstallationSurface mounting & flush mounting
    • Indicator4 LED lights(Opening door、Calling、Intercom、In use）
    • WeightWith package: 426g ( 0.94lb),Without package: 290g ( 0.64lb)
    • Protective levelIP65 IK08
    • Working temperature

      -40° C to 60° C (-22° F to 140° F)

    • Working humidity

      10% to 90%

    • Dimensions

      99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88\" × 1.37\")

    • Battery/
    • Power supply48V，Powered by distributor DS-KAD7060EY or 12VDC
    • Application environmentOutdoor
    • Power consumption≤ 6 W
    • LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
