  •   IP mobile camera DS-2XM6522G1-ID F2.8

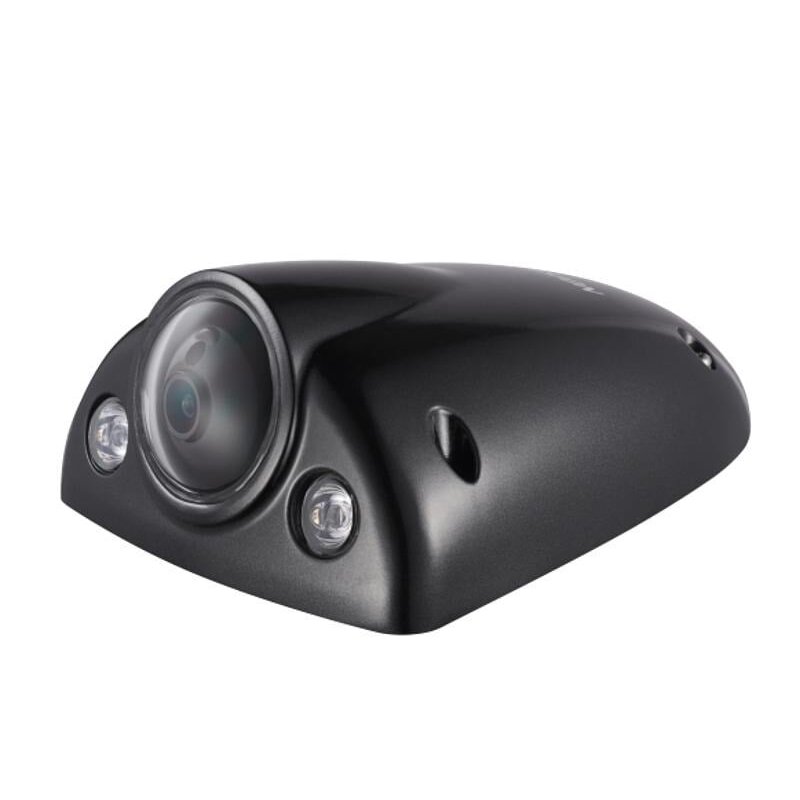

    IP mobile camera DS-2XM6522G1-ID F2.8

    Inquire about this item
    Price 465.46 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • Camera
    • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
    • P/N

      PAL: 25fps

      NTSC: 30fps

    • Image Sensor1/2.8″ Progressive Scan CMOS
    • Shutter Speed 1/3 s to 1/100,000 s
    • Case TypeWedge
    • Slow ShutterYes
    • Resolution2MP
    • Day & NightIR Cut Filter
    • Angle Adjustment

      2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90°

      4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°

    • Lens
    • Focal Length & FOV

      2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°

      4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°

      6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°

    • Lens MountM12
    • Lens TypeFixed Lens
    • Max. Aperture

      2.8 mm/4 mm/6 mm: F 1.6

    • Illuminator
    • Smart Supplement LightYes
    • IR Wavelength850nm
    • IR RangeUp to 30m
    • Video
    • Max. Resolution 1920 × 1080
    • Main Stream

      50Hz:25fps(1920 x 1080, 1280x960, 1280 x 720)

      60Hz:30fps(1920 x 1080, 1280x960, 1280 x 720)

    • Sub-Stream

      50Hz:25fps(704 x 576, 640x480, 352 x 288, 320x240)

      60Hz:30fps(704 x 576, 640x480, 352 x 288, 320x240)

    • Third Stream

      50Hz:25fps(1920 x 1080, 1280x960, 1280x720, 704x576, 640x480, 352 x 288, 320x240)

      60Hz:30fps(1920 x 1080, 1280x960, 1280x720, 704x480, 640x480, 352 x 240, 320x240)

    • Video Compression

      Main Stream: H.265 /H.264/H.264+/H.265+

      Sub-Stream: H.265 /H.264 / H.264+/H.265+/MJPEG

      Third Stream: H.265 /H.264/H.264+/H.265+

    • Video Bit Rate

      Main Stream: 256 Kbps to 12 Mbps

      Sub-Stream: 256 Kbps to 4 Mbps

      Third Stream: 256 Kbps to 12 Mbps

    • H.264 TypeBaseLine Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream
    • Network
    • Protocols TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0
    • Simultaneous Live View Up to 8 channels
    • APIHIKSDK, ONVIF (PROFILE S, PROFILE G,PROFILE T), ISAPI
    • User Management

      Up to 16 users

      3 levels: Administrator, Operator and User

    • Web Browser IE8+, Chrome45+, Edge41+, Firefox45+
    • Image
    • Wide Dynamic Range (WDR)120 dB
    • Smart IRNo
    • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • Day/Night SwitchDay/Night/Auto/Schedule
    • SNR＞50dB
    • Image EnhancementBLC, HLC, 3D DNR
    • Privacy Mask4 regions of privacy mask
    • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
    • DNR 3D DNR
    • Interface
    • Ethernet Interface

      Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port

      -M: 1 four-core M12 aviation plug

    • SD Card StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
    • AudioNo
    • Alarm No
    • RS-485No
    • Reset KeyYes
    • HeaterYes
    • Event
    • Linkage MethodUpload to FTP, notify monitoring center center, send email, trigger recording
    • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error)
    • Smart Event

      Line crossing detection,

      Intrusion detection,

      Region entrance detection,

      Region exiting detection,

      Unattended baggage detection,

      Object removal detection,

      Object detection: detects faces and upload images

      Scene change detection, defocus detection

    • General
    • Product Dimension

      Camera: 163.7 mm × 122.6 mm × 65.1 mm (6.4" × 4.8\" × 2.6\")

      With package: 252 mm × 190 mm × 108 mm (9.9 × 7.5\" × 4.3\")"

    • Power Interface

      -I/ND: RJ45 interface, PoE power supply

      -ID: Ø 5.5 mm coaxial power plug, DC

      power supply

      -IDM: two-core Molex connector, DC power supply

      -IM/ND: four-core M12 aviation plug, PoE power supply

    • Power Consumption

      -ID, -IDM: 9~36 V DC, max. 10 W

      -I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W

    • ProtectionIP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013)
    • Power Supply

      -ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection&PoE802.3af;

      -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3

    • Camera Material Metal
    • Product Weight

      Camera: Approx. 905 g (2.0 lb.)

      With package: 1271 g (2.8 lb.)

    • Startup and Operating Conditions -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
    • LanguageSupport English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish,Czech
    • General Function Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
    • Approval
    • Electrical Safety ProtectionIK10(IEC 62262:2002）
    • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
    • SafetyCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
    • Environment CE-RoHS (2011/65/EU);
    • Automotive and RailwayEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
