  •   IP dome camera Hikvision DS-2CD1347G0-L(C) F2.8

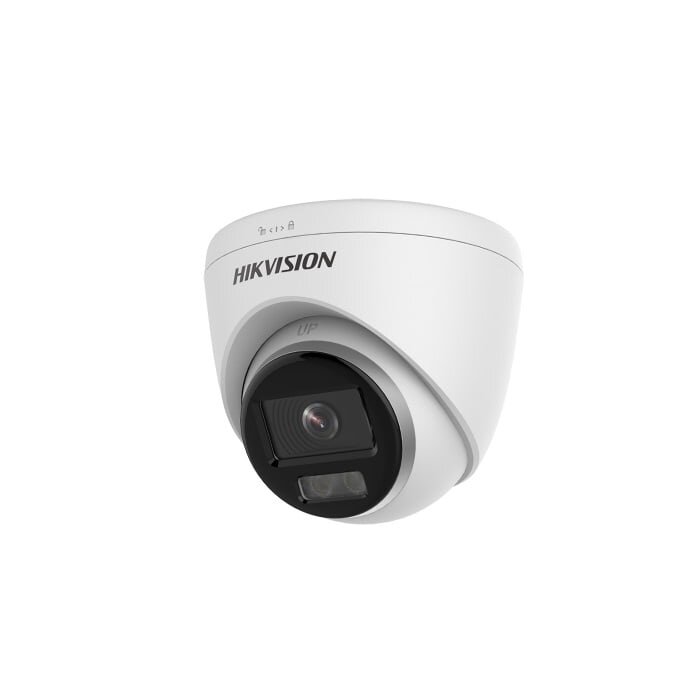

    IP dome camera Hikvision DS-2CD1347G0-L(C) F2.8

    Inquire about this item
    Price 209.61 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor1/3" Progressive Scan CMOS
    • Min. Resolution2560 × 1440
    • Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)
    • Shutter Speed1/3 s to 1/100,000 s
    • Day & Night24/7 Colorful imaging
    • Angle AdjustmentPan: 0°to 355°, tilt: 0°to 75°
    • Lens
    • Lens TypeFixed focal lens, 2.8 and 4 mm optional
    • FOV2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.
    • Lens MountM12
    • Iris TypeFixed
    • ApertureF1.0
    • DORI
    • DORI2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m
    • Video
    • Main Stream50 Hz:20 fps (2560 × 1440),25 fps (1920 × 1080, 1280 × 720)60 Hz:20 fps (2560 × 1440),30 fps (1920 × 1080, 1280 × 72
    • Sub Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 36
    • Video CompressionMain stream: H.265+/H.264+/H.265/H.264Sub-stream: H.265/H.264/MJPE
    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseLine Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Region of Interest (ROI)1 fixed region for main stream
    • Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface, ISAP
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web BrowserPlug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
    • Image
    • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by clientsoftware or web browse
    • Day/Night SwitchDay, Night, Auto, Schedule
    • WDR120 dB
    • Image EnhancementBLC, HLC, 3D DNR
    • Interface
    • Internet interface1 RJ45 10 M/100 M self-adaptive Ethernet po
    • Event
    • Basic Event Motion detection, video tampering alarm, exception
    • LinkageUpload to FTP, notify surveillance center, send email, trigger capture
    • General
    • Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plugPoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
    • Camera MaterialMetal & Plastic
    • Camera DimensionØ 111 mm × 82.4 mm (Ø 4.4" × 3.2")
    • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
    • Camera WeightApprx. 550 g (1.2 lb.)
    • With Package WeightApprox. 800 g (1.8 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
    • Startup and OperatingConditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing
    • LanguageEnglish, Ukrainian
    • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IPaddress filter
    • Approval
    • EMCFCC-SDoC: 47 CFR Part 15, Subpart B;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN50130-4: 2011+A1: 2014;RCM: AS/NZS CISPR 32: 2015;KC: KN 32: 2015, KN 35: 201
    • SafetyUL: UL 62368-1;CB: IEC 62368-1: 2014+A11;CE-LVD: EN 62368-1: 2014/A11: 2017;BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
    • EnvironmentCE-RoHS: 2011/65/EU;WEEE: 2012/19/EU;Reach: Regulation (EC) No 1907/2006
    • ProtectionIP67: IEC 60529-2013
