  •   IP camera Dahua Bullet IPC-HFW5541E-ZE F2.7-13.5mm (White, 5MP, ePoE, IR LED 80m, IP67)

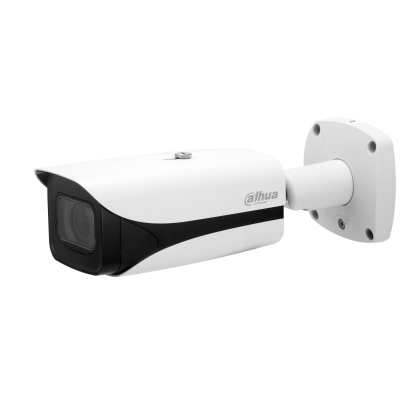

    IP camera Dahua Bullet IPC-HFW5541E-ZE F2.7-13.5mm (White, 5MP, ePoE, IR LED 80m, IP67)

    Inquire about this item
    Price 424.18 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Dahua

    • Image Sensor 1/2.7" CMOS
    • Max. Resolution 2960 (H) × 1668 (V)
    • ROM 4 GB
    • RAM 1 GB
    • Scanning System Progressive
    • Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
    • Min. Illumination 0.0009 lux@F1.5(Color, 30 IRE)0.0005 lux@F1.5(B/W, 30 IRE)0 lux (Illuminator on)
    • S/N Ratio >56 dB
    • Illumination Distance Up to 60 m (196.85 ft) (IR)
    • Illuminator On/Off Control Auto;Zoomprio;Manual
    • Illuminator Number 4 (IR LED)
    • Angle Adjustment Pan: 0°–360°Tilt: 0°–90°Rotation: 0°–360°
    • Lens Type Motorized vari-focal
    • Lens Mount φ14
    • Focal Length 2.7 mm–13.5 mm
    • Max. Aperture F1.5
    • Field of View H: 114°–32°; V: 58°–17°; D: 138°–36°
    • Iris Control Auto
    • Close Focus Distance 0.8 m (2.62 ft)
    • IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functons support the classifcaton and accurate detecton of vehicle, animal and human); loitering detecton, people gathering, parking detecton. Supports long- distance mode. Supports self-learning, it filters out false alarms.
    • Smart Object Detection Smart abandoned object; smart missing object
    • SMD SMD 3.0
    • AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets.
    • AI SSA Yes
    • Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
    • People Counting Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
    • Heat Map Yes
    • Video Metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.Non-motor vehicle attributes: type, color, number of people, top type and color, hat.Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
    • Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
    • Smart Sound Detection Yes
    • Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
    • Smart Codec Smart H.265+; Smart H.264+
    • AI Coding AI H.265; AI H.264
    • Video Frame Rate Main stream: 2960 × 1668@(1–25/30 fps)Sub stream: D1@(1–25/30 fps)Third stream: 1080p@(1–25/30 fps)Fourth stream: 720p@(1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
    • Stream Capability 4 streams
    • Resolution 5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
    • Bit Rate Control CBR/VBR
    • Video Bit Rate H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps
    • Day/Night Auto(ICR)/Color/B/W
    • BLC Yes
    • HLC Yes
    • WDR 120 dB
    • Scene Self-adaptation (SSA) Yes
    • White Balance Auto; natural; street lamp; outdoor; manual; regional custom
    • Gain Control Auto
    • Noise Reduction 3D NR
    • Motion Detection OFF/ON (4 areas, rectangular)
    • Region of Interest (RoI) Yes (4 areas)
    • Image Stabilization Electronic Image Stabilization (EIS)
    • Defog Yes
    • Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
    • Mirror Yes
    • Privacy Masking 8 areas
    • LDC Yes
    • Built-in MIC Yes
    • Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
    • Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
    • Network Port RJ-45 (10/100 Enhancement Base-T)
    • SDK and API Yes
    • Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
    • Interoperability ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
    • User/Host 20 (Total bandwidth: 80 M)
    • Storage FTP; SFTP; Micro SD card (support max. 1 TB); NAS
    • Browser IE: IE 9 and laterChrome: Chrome 102 and laterFirefox: Firefox 88 and later
    • Management Software SmartPSS Lite; DSS; DMSS
    • Mobile Client iOS; Android
    • Cyber Security Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
    • Certifications CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
    • Audio Input 1 channel (RCA port)
    • Audio Output 1 channel (RCA port)
    • Alarm Input 2 channels in: wet contact, 5 mA 3V-5V DC
    • Alarm Output 1 channel out: wet contact, 300mA 12V DC
    • Power Supply 12 VDC/PoE (802.3af)/ePoE
    • Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
    • Power Consumption Basic: 3.6 W (12 VDC); 4.7 W (PoE)Max. (H.265+ WDR+ Intelligence on+IR on): 10.4 W (12 VDC); 13.0 W (PoE)
    • Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
    • Operating Humidity ≤95%
    • Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
    • Storage Humidity 10%–95% (RH), non-condensing
    • Protection IP67; IK10
    • Casing Material Metal
    • Product Dimensions 273.2 mm × 95.0 mm × 95.0 mm (10.76" × 3.74" × 3.74") (L × W × H)
    • Net Weight 1.12 kg (2.47 lb)
    • Gross Weight 1.66 kg (3.66 lb)
