  •   IP camera Dahua Bullet IPC-HFW1431S-0280-S4 2.8mm (4MP, 104°, IR 30m, H.265, IP67)

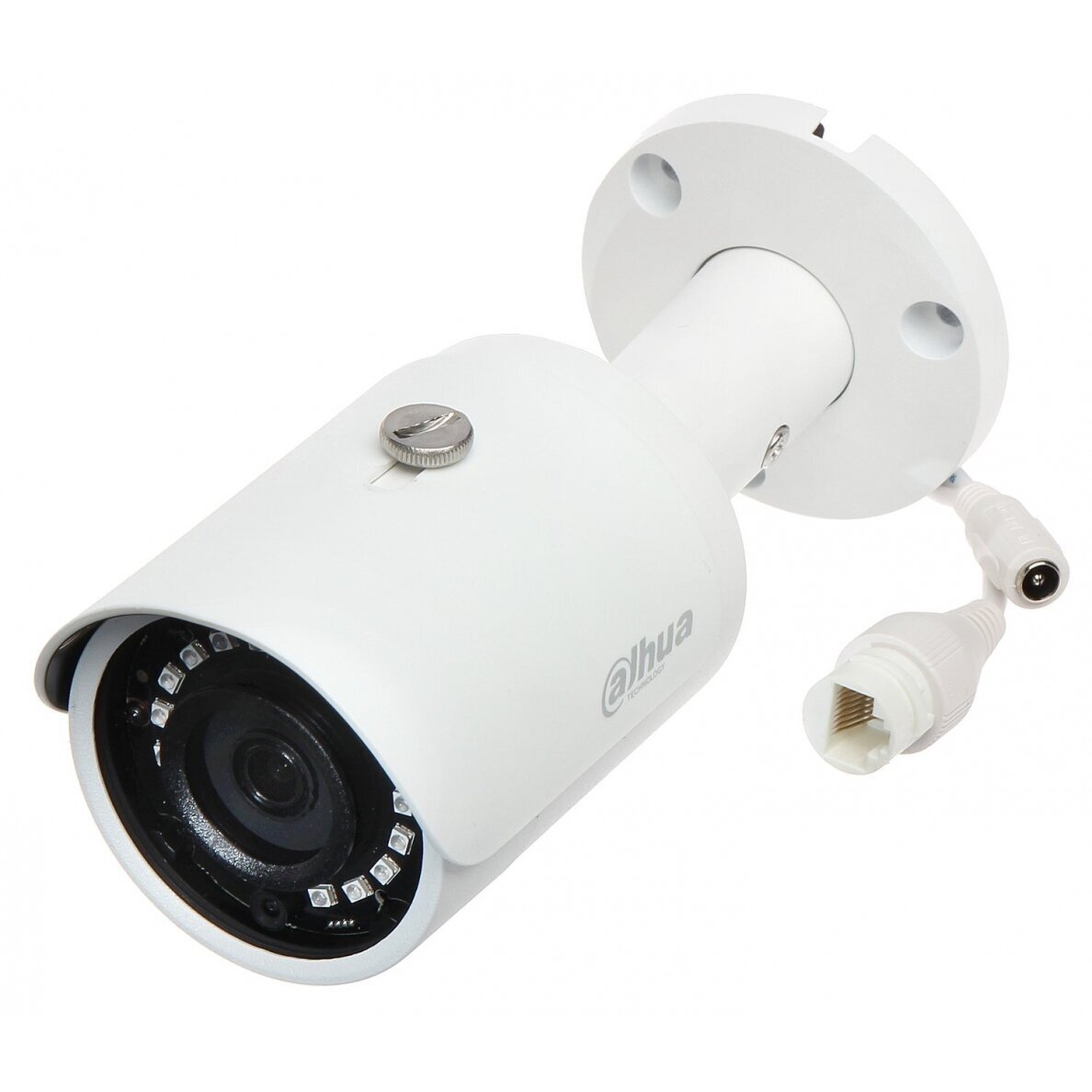

    IP camera Dahua Bullet IPC-HFW1431S-0280-S4 2.8mm (4MP, 104°, IR 30m, H.265, IP67)

    Inquire about this item
    Price 131.73 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • General
    • StandardTCP/IP
    • Sensor1/3" Progressive Scan CMOS
    • Matrix size4 Mpx
    • Scanning systemProgressive
    • Resolution2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p
    • Lens2.8 mm
    • View angle93° (manufacturer data), 94° (our tests result)
    • Range of IR illumination30 m
    • RS-485 interface–
    • Memory card slot–
    • Image compression methodH.265+, H.265, H.264+, H.264, MJPEG
    • Alarm inputs / outputs–
    • Audio–
    • Bitrate12 ... 8448 kbps - H.265, 32 ... 10240 kbps - H.264
    • Main stream frame rate20 fps @ 4 Mpx, 25 fps @ 3 Mpx
    • Network interface10/100 Base-T (RJ-45)
    • Network protocolsHTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, RTMP, SFTP, IEEE 802.1x, Multicast, ICMP, IGMP
    • WEB ServerBuilt-in
    • Max. number of on-line users20
    • ONVIF18.12
    • Mobile phones supportPort no.: 37777 or access by a cloud (P2P), Android: Free application DMSS, iOS (iPhone): Free application DMSS
    • Default admin user / passwordadmin / - (The administrator password should be set at the first start)
    • Default IP address192.168.1.108
    • Web browser access ports80, 37777
    • PC client access ports37777
    • Mobile client access ports37777
    • Port ONVIF80
    • RTSP URLrtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream, rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
    • Main featuresWDR - 120 dB - Wide Dynamic Range, 3D-DNR - Digital Noise Reduction, ROI - improve the quality of selected parts of image, BLC/HLC - Back Light / High Light Compensation, Possibility to change the resolution, quality and bit rate, Motion Detection, Configurable Privacy Zones, Mirror - Mirror image
    • Power supplyPoE (802.3af), 12 V DC / 500 mA
    • Power consumption≤ 6 W
    • HousingCompact - Aluminum
    • ColorWhite
    • Index of ProtectionIP67
    • Operation temp-40°C ... 60°C
    • Weight0.4 kg
    • DimensionsØ 70 x 165 mm
    • Supported languagesPolish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Italian
    • Manufacturer / BrandDAHUA
