  •   IP bullet camera Hikvision DS-2CV2046G0-IDW F2.8

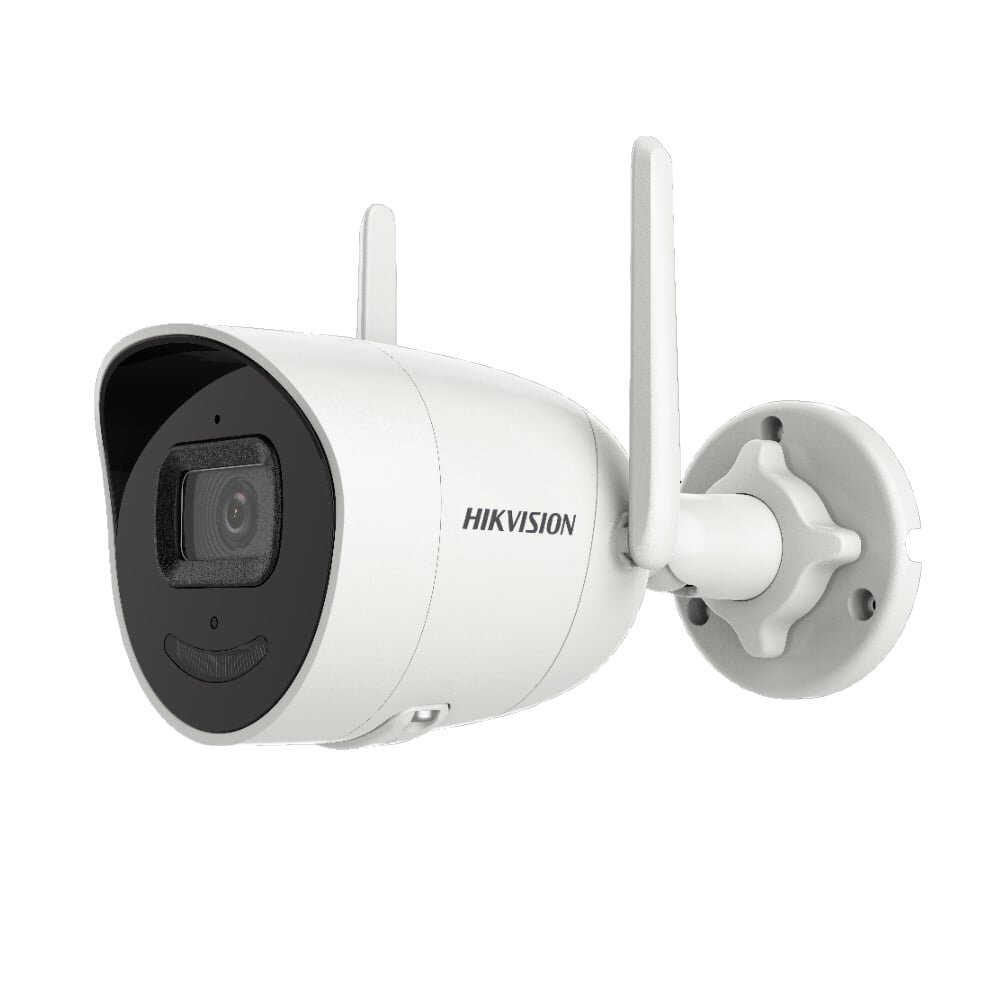

    IP bullet camera Hikvision DS-2CV2046G0-IDW F2.8

    Inquire about this item
    Price 249.64 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • Image Sensor1/2.7" Progressive Scan CMOS
    Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
    Shutter Speed1/3 s to 1/100,000 s
    Slow ShutterYes
    Wide Dynamic Range120 dB
    Day & NightICR Cut
    Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
    Lens Type & FOV2.8 mm, horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114
    ApertureF1.6
    Lens MountM12
    IR RangeUp to 30 m
    Wavelength850 nm
    Smart Supplement LightYes
    Visual AlarmYes
    Max. Resolution2560 × 1944
    Main Stream50Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    60Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720
    Sub Stream50Hz: 25 fps (640 × 360)
    60Hz: 30 fps (640 × 360)
    Video CompressionMain stream: H.265/H.264
    Sub-stream: H.265/H.264
    Video Bit Rate32 Kbps to 8 Mbps
    H.264 TypeBaseline Profile/Main Profile/High Profile
    H.265 TypeMain Profile
    Region of Interest (ROI)1 fixed region for each stream
    Environment Noise FilteringYes
    Audio Sampling Rate8 kHz/16 kHz
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
    Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
    Simultaneous Live ViewUp to 6 channels
    APIISAPI, SDK
    ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
    User/HostUp to 32 users. 3 user levels: administrator, operator and user
    SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
    Network StoragemicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    ClientiVMS-4200, Hik-Connect, Hik-Central
    Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    Day/Night SwitchDay, Night, Auto, Schedule
    Image EnhancementBLC, HLC, 3D DNR
    Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    Audio1 built-in microphone; 1 built-in speaker
    On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
    Hardware ResetYes
    Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
    Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
    Premier ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
    Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning
    *Note: External device is required.
    Web Client Language33 languages:
    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
    Software ResetYes
    Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    Power Supply12 VDC ± 25%, reverse polarity protection
    PoE: 802.3af, Class 3
    Power Consumption and
    Current    		12 VDC, 0.67 A, max. 8 W
    Power InterfaceØ5.5 mm coaxial power plug
    MaterialFront cover: metal, back cover: plastic
    Camera Dimension175.6× 73.0 × 89.1 mm (6.91" × 2.87" × 3.51")
    Package Dimension260 × 125 × 125 mm (10.24" × 4.92" × 4.92")
    Camera Weight450 g (0.99 lb.)
    With Package Weight770 g (1.70 lb.)
    EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
    SafetyUL (UL 60950-1); CB (IEC 60950-1:2005+ Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    ProtectionIngression protection: IP66 (IEC 60529-2013)
    Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK
    Wi-Fi ProtocolIEEE802.11b, 802.11g, 802.11n
    Frequency Range2.4 GHz -2.4835 GHz
    Channel Bandwidth20/40 MHz
    Modulation802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
    Wireless RangeUp to 120 m (The performance varies based on actual environment.)
