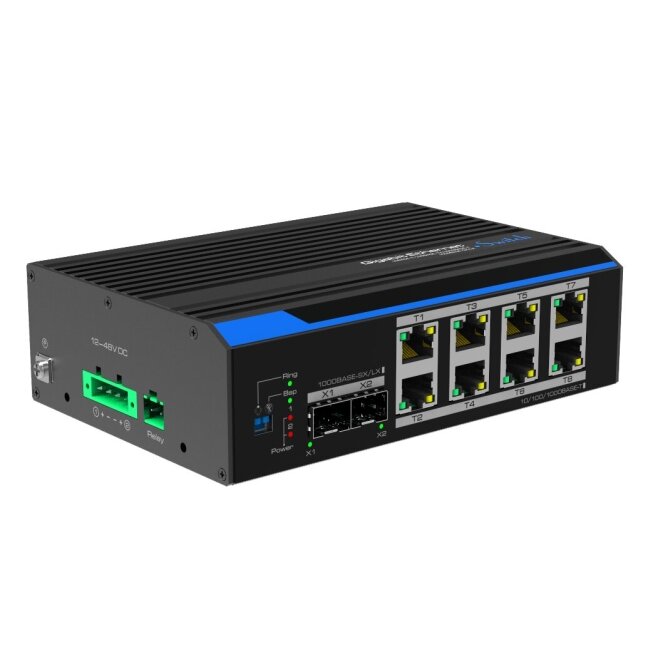

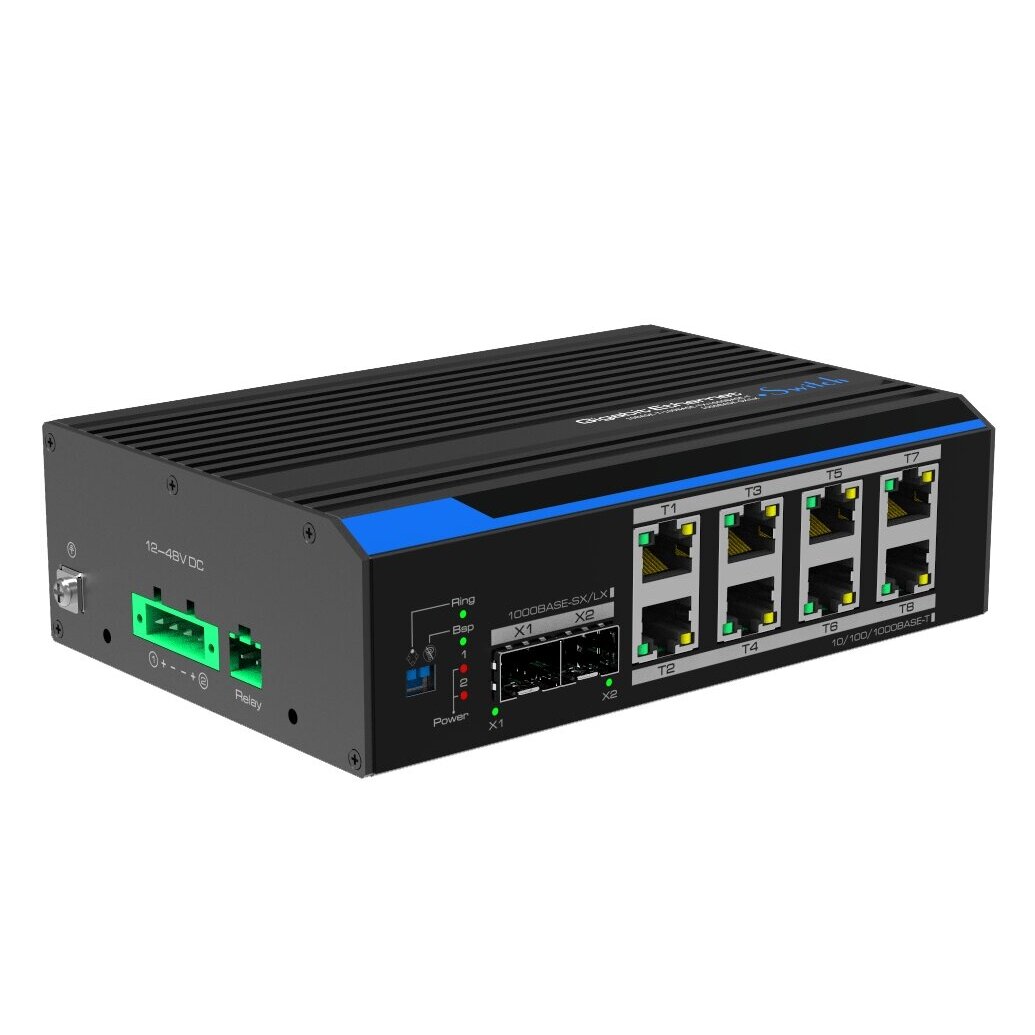

Industrial Switch 8 port UTEPO UTP7208GE

Model

UTP7208GE

Downlink Port

8*10/100/1000Base-T Ethernet

Uplink Port

2*1000 Base-X SFP slots

Alarm Output

One channel relay alarm output, 1A@DC 9V, 2 cores, 5.08mm terminal

DIP Switch

1.Enable / Disable fast ring, with self-healing time less than 20ms.

2. Enable / Disable broadcast storm prevention.

Standard and Protocols

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1P

Switching Capacity

24Gbps

Packet Forwarding Rate

18Mpps

Packet Buffer

2Mbit

MAC Address Table

16K

Jumbo Frame

10K bytes

LED Indicator

Port: 1*Link/Act (Green) & 1*Speed Rate(Orange)

1*One-key Fast Ring (Green), 1*One-key BSP (Green), 2*PWR (Red)

Surge Immunity

6KV per: IEC61000-4-5

ESD Immunity

6KV contact discharge / 8KV air discharge

Per: IEC61000-4-2

Power Supply

External industrial DIN rail power supply

Access Terminal

4 PIN / 5.08mm

Input Voltage

12-48VDC

Power Consumption

≤12W（Full load）

Operating Temperature

-40-75℃

Storage Temperature

-40-85℃

Operating Humidity

5%-95%(Non-condensing)

Shell

IP40, metal shell

Dimension（L×W×H）

159mm×110mm×46.5mm

Installation

DIN rail or Wall mounted

Weight

749g

Certification

CE, FCC
