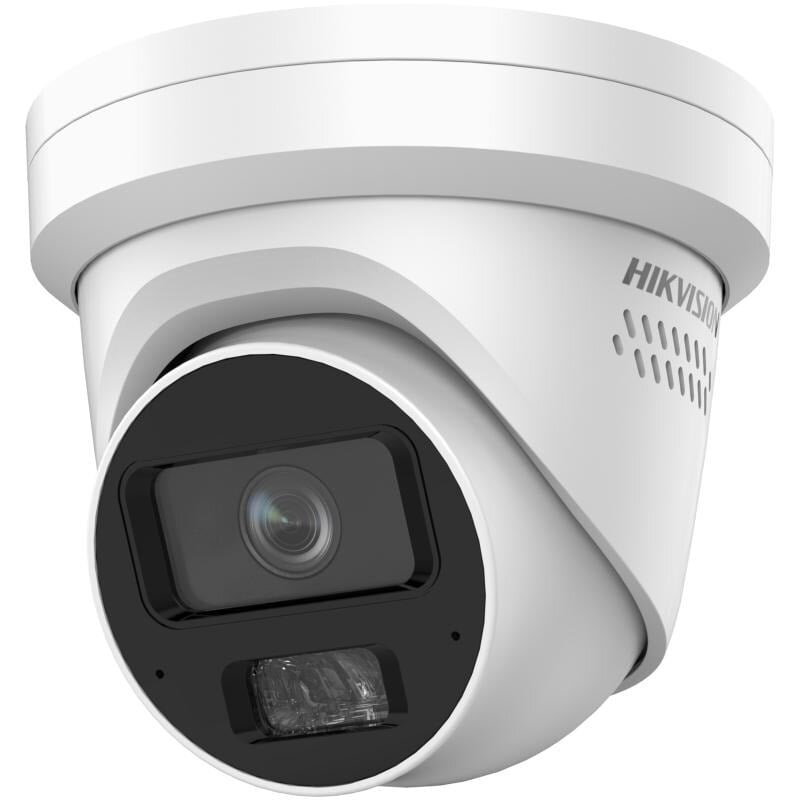

  •   Hikvision Turret iDS-2CD5347G2-XS F2.8 (white, 4MP, Hybrid Light, Darkfighter 2.0, IR+LED 40m)

    Hikvision Turret iDS-2CD5347G2-XS F2.8 (white, 4MP, Hybrid Light, Darkfighter 2.0, IR+LED 40m)

    Inquire about this item
    Price 579.59 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Hikvision
    • Approval
    • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015
    • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
    • ProtectionIP67: IEC 60529-2013
    • SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
    • Transport CertificationIATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List
    • Audio
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
    • Audio TypeMono sound
    • Environment Noise FilteringYes
    • Camera
    • Angle AdjustmentPan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360°
    • Day & NightIR cut filter, Blue glass module (less ghost phenomenon)
    • Image Sensor1/1.8" Progressive Scan CMOS
    • Max. Resolution2688 × 1520
    • Min. IlluminationB/W: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR,Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
    • Shutter Time1 s to 1/100,000 s
    • DORI
    • DORI2.8 mm: D (Detect) : 61.5 m, O (Observe) : 24.4 m, R (Recognize): 12.73 m, I(Identify): 6.2 m 4 mm: D (Detect) : 72.1 m, O (Observe) : 28.6 m, R (Recognize): 14.4 m, I(Identify): 7.2 m The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
    • Deep Learning Function
    • AcuSeekSupport search for humans, vehicles, This function requires use with AcuSeek NVR/Servers.
    • MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection
    • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras VCA range: up to 40 m (nighttime)
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (HDD full, HDD error, network disconnected, IP address conflict, illegal login, abnormal restart),alarm input and output,video quality diagnosis
    • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
    • Smart EventScene change detection,audio exception detection,defocus detection, unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection
    • General
    • DimensionØ138.63 mm × 123.42 mm (Ø5.46" × 4.86")
    • General FunctionHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
    • Integrated Connector PanelNo
    • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • MaterialAluminum alloy body
    • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 6.0")
    • Power12 VDC ± 20%, 0.93 A, max. 11.2 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.25 A to 0.19 A, max. 12.7 W
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • WeightApprox. 820 g (1.81 lb.)
    • With Package WeightApprox. 1095 g (2.42 lb.)
    • Illuminator
    • IR Wavelength850 nm
    • Smart Supplement LightYes
    • Supplement Light RangeUp to 40 m
    • Supplement Light TypeHybrid (IR and White Light)
    • Image
    • Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
    • Image EnhancementBLC,HLC,3D DNR,Defog,Distortion Correction
    • Image Parameters SwitchYes
    • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Image StabilizationEIS
    • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
    • Privacy Mask8 programmable polygon privacy masks
    • Wide Dynamic Range (WDR)140 dB
    • Interface
    • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
    • Audio1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
    • Built-in Microphone 2 built-in microphones
    • Built-in Speaker1 built-in speaker
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
    • Power Output12 VDC, max. 100 mA External extension cord less than 10 meters.
    • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Reset KeyYes
    • Lens
    • ApertureF1.0
    • Focal Length & FOV2.8 mm, horizontal FOV 111°, vertical FOV 58°, diagonal FOV 138° 4 mm, horizontal FOV 95°, vertical FOV 48°, diagonal FOV 117°
    • Iris TypeFixed
    • Lens TypeFixed focal lens, 2.8 and 4 mm optional
    • Network
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
    • ClientiVMS-4200,Hik-Connect
    • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
    • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3,AES128/256
    • Simultaneous Live ViewUp to 20 channels
    • User/HostUp to 32 users 3 user levels: administrator, operator, and user
    • Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
    • Video
    • AI EncodingYes
    • Bit Rate ControlCBR,VBR
    • Fourth Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
    • H.264 TypeBaseline Profile,Main Profile,High Profile
    • H.265 TypeMain Profile
    • Main Stream50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
    • Region of Interest (ROI)4 fixed regions for each stream
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
    • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
    • Video Bit Rate32 Kbps to 8 Mbps
    • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
