Products catalog

Home/Video, audio, intrusion and access control systems/Access Control/Hikvision Access Control
  •   Hikvision Tripod turnstile DS-K3G501-R/M-Dm55

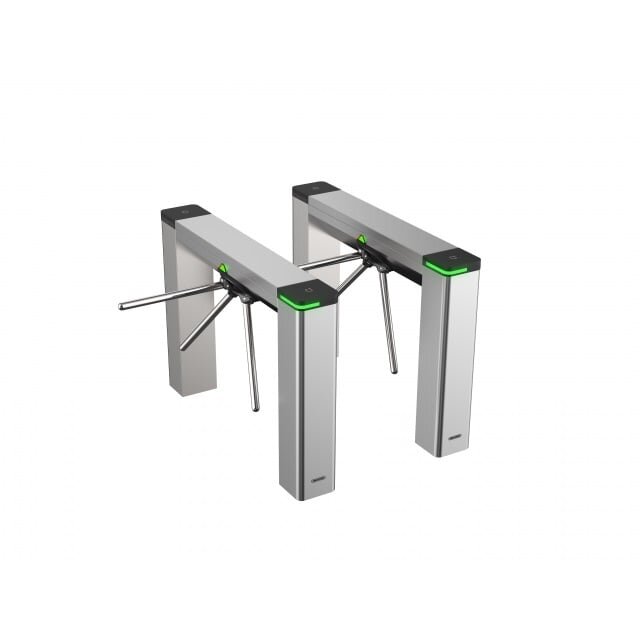

    Hikvision Tripod turnstile DS-K3G501-R/M-Dm55

    Inquire about this item
    Price 1191.75 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • System
    • MCBF> 3 million times
    • Interface
    • RS-2324
    • RS-4854
    • Lock output2
    • IO input2
    • IO output2
    • Network interface1
    • Capacity
    • Card capacity60,000
    • Event capacity180,000
    • General
    • Throughput

      More than 35 persons per minute

      The actual throughput is affected by the person passing rate and passing method.

    • Power supply method100 to 240 VAC; 50 to 60 Hz
    • Lane width550mm
    • Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
    • Working humidity0% to 95% (No condensing)
    • Dimensions

      Without package: 232 mm × 960 mm × 1208 mm (9.1" × 37.8\" × 47.6\")

      With package: 390 mm × 1185 mm × 1320 mm (15.4 × 46.7\" × 52.0\")"

    • Pedestal materialSUS304 stainless steel
    • Application environmentIndoor and outdoor
    • Protective levelIP54

    • Without package: 45 kg (99.2 lb)

      With package: 69 kg (152.1 lb)

    • ApprovalCE/FCC/CB/RoHS/REACH/WEEE
    • Configuration
    • Module selectionYES
    • Authentication modeCard;Face;Fingerprint;QR code
    • Card typeEM;M1
    • Wall distance10mm
    • Lane width550
    • Recommended width550
    • Pedestal width230mm
    • Pedestal length1210mm
    • Barrier materialStainless steel pipe
    • BaseYES
    • Side pedestalYES
    • Base modelDS-K3G501-BASE
    • Side pedestal typeEmpty(230mm)/fence(130mm)
