  •   Hikvision Tripod turnstile DS-K3G411X-R/E-Dm55

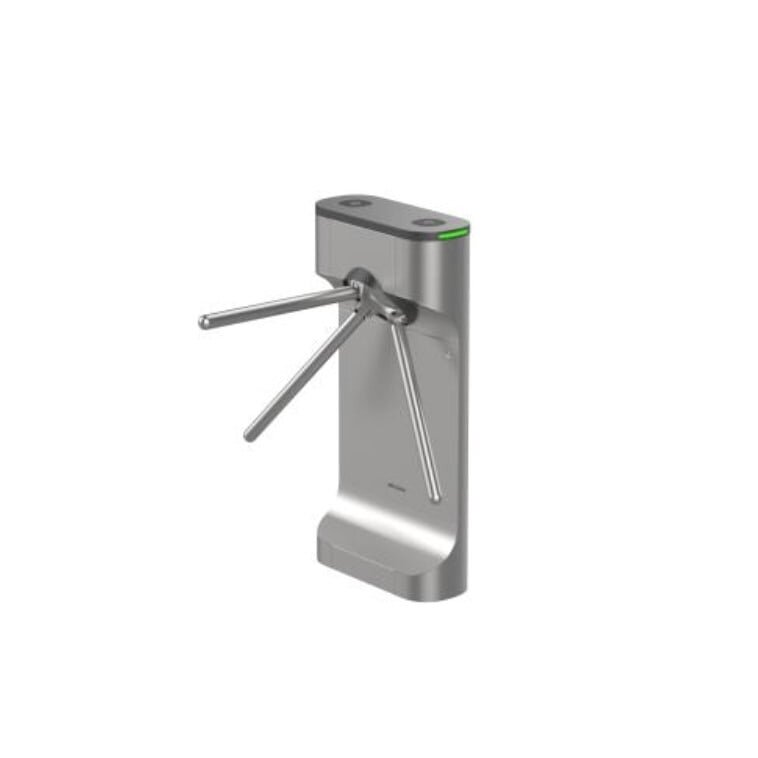

    Hikvision Tripod turnstile DS-K3G411X-R/E-Dm55

    Inquire about this item
    Price 1019.42 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • System
    • MotorNA
    • MCBF≥ 3 million times
    • Network
    • Communication protocolISAPI
    • Wired network10/100 Mbps self-adaptive Ethernet
    • Interface
    • Network interface1
    • Lock control2
    • Exit button2
    • Alarm output2
    • TAMPERNA
    • RS-4854
    • RS-2324
    • WiegandNA
    • Fire alarm input1
    • Case input2
    • Hardware
    • Access controllerSupplied
    • Power supply for face recognition moduleSupplied for“Pg”type
    • Keyfob

      Not supplied

      Need order separately

    • Capacity
    • Card capacity500,000
    • Event capacity500,000
    • Authentication
    • Card typeEM/M1/Desfire/Felica
    • Function
    • Configuration via Web browserSupport
    • Configuration via mobile Web browserSupport
    • QR code recognitionOptional
    • Audio promptOptional
    • Keypad configurationSupport
    • General
    • Throughput

      More than 35 persons per minute

      The actual throughput is affected by the person passing rate and passing method.

    • Lane width550 mm
    • Barrier materialSUS304 stainless steel pipe
    • Pedestal materialSUS304 stainless steel thickness 1.2 mm(0.05")
    • Power

      Switching power supply: 100 to 240 VAC; 50 to 60 Hz

      Power adapter: 100 to 240 VAC; 50 to 60 Hz

    • Power consumption45W (stand by)
    • Working temperature

      Switching power supply: -20 °C to 65 °C (-4 °F to 149 °F)

      Power adapter: -10 °C to 45 °C (14 °F to 113 °F)

    • Working humidity0% to 95% (No condensing)
    • Protective levelNA
    • Dimensions

      Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0\" × 40.0\")

      With package: 745 mm × 365 mm × 1120 mm (29.3 × 14.4\" × 44.1\")"

    • Weight

      Without package: 26 kg (57.3 lb)

      With package: 31 kg (68.41 lb)

    • ApprovalCE/CE-LVD/CB/RoHS/REACH/WEEE
    • Configuration
    • Lane width550
    • Pedestal length502 mm
    • Module selectionYES
    • Pedestal width202 mm
    • Wall distance20mm
    • BaseYES
    • Barrier materialStainless steel pipe
    • Application environmentIndoor
    • Authentication modeCard;Face;QR code
    • Card typeEM;M1
    • Recommended width550
    • Base modelDS-K3G411-BASE
    • Side pedestalYES
    • Side pedestal typefence(130mm)
    • Product typeTripod Turnstile
    • Remote controller type433Mhz;868Mhz
    • Movement Protrusion Width29 mm
