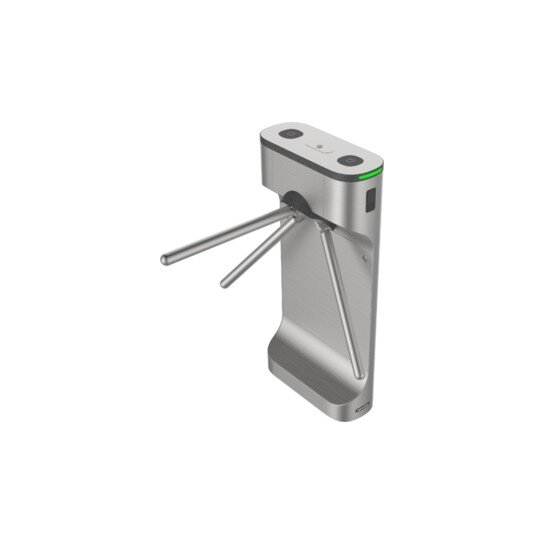

    Hikvision Tripod turnstile DS-K3G411-R/M-Dm55

    Inquire about this item
    Price 961.63 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • System
    • MCBF ＞3 million times
    • Interface
    • Lock control2
    • Alarm input2
    • Alarm output2
    • Network interface1
    • RS-4856 (The interfaces can be switched to RS-232 via DIP switch)
    • RS-232

      6 interfaces can be switched to RS-232 via DIP switch;

      2 for fingerprint module or QR code scanner

    • Capacity
    • Card capacity60,000
    • Event capacity180,000
    • General
    • Throughput

      More than 35 persons per minute

      The actual throughput is affected by the person passing rate and passing method.

    • Power supply method100 to 240 VAC; 50 to 60 Hz
    • Working temperature -10 °C to 50 °C (14 °F to 122 °F)
    • Lane width550mm
    • Working humidity0% to 95% (No condensing)
    • Pedestal materialSUS304 stainless steel
    • Dimensions

      Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0\" × 40.0\")

      With package: 745 mm × 365 mm × 1120 mm (29.3 × 14.4\" × 44.1\")"

    • Application environmentIndoor

    • Without package: 26 kg (57.3 lb)

      With package: 31 kg (68.41 lb)

    • ApprovalCE/FCC/CB/RoHS/REACH/WEEE
    • Configuration
    • Module selectionYES
    • Authentication modeCard;Face;QR code;Fingerprint
    • Authentication exclusionaryFingerprint;QR code
    • Card typeEM;M1
    • Wall distance20mm
    • Lane width550
    • Pedestal width202 mm
    • Pedestal length502 mm
    • Barrier materialStainless steel pipe
    • BaseYES
    • Side pedestalYES
    • Base modelDS-K3G411-BASE
    • Side pedestal typefence(130mm)
