  •   Hikvision Thermal monocular HM-TS03-25XG/W-LH25 F25

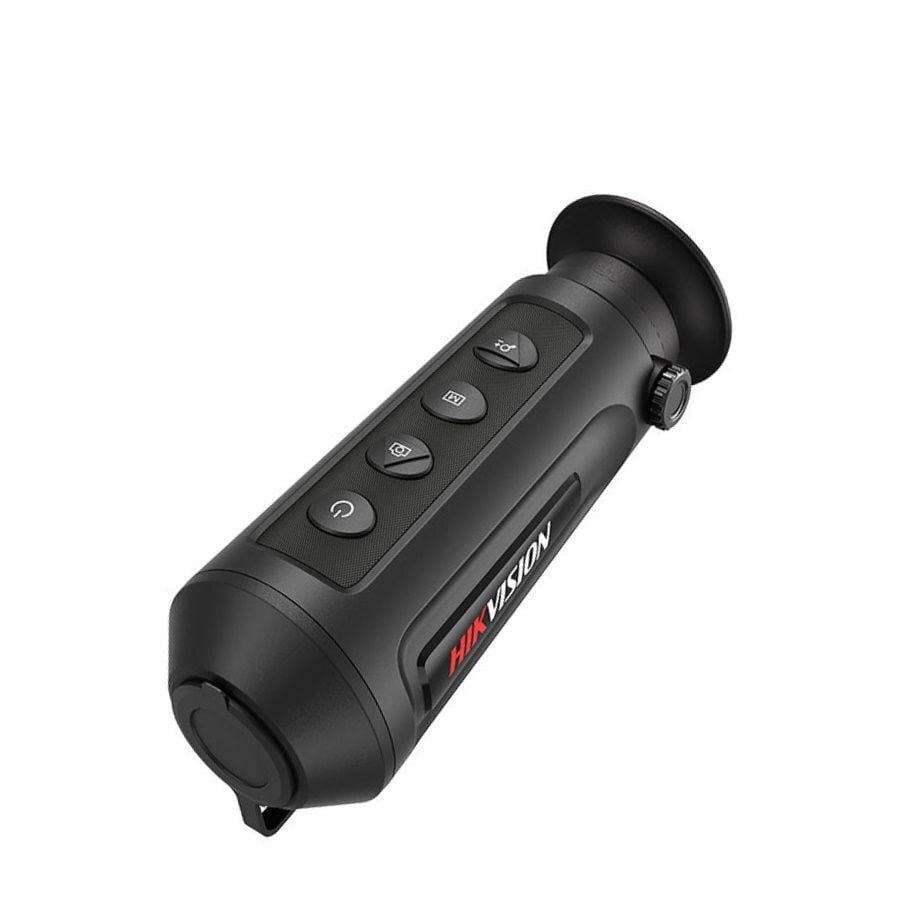

    Hikvision Thermal monocular HM-TS03-25XG/W-LH25 F25

    Inquire about this item
    Price 2298.20 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • Thermal Module
    Image SensorVanadium Oxide Uncooled Focal Plane Arrays
    Max. Resolution384 x 288
    Pixel Interval12 μm
    Response Waveband8 μm to 14 μm
    NETDless than 35 mk (@25°C), F#=1.0
    Lens (Focal Length)25 mm
    Field of View10.5° × 7.9° (H × V)
    Digital Zoom1 ×, 2 ×, 4 ×, 8 ×
    ApertureF1.0
    Magnification2.45 to 19.6
    Image Display
    Monitor0.4 inch, LCOS, 1280 × 960
    FFC (Flat Field Correction)Auto, Manual, External Correction
    PalettesBlack Hot, White Hot, Red Hot, Fusion
    Frame Frequency50 Hz
    Smart Function
    Wi-Fi Hot SpotYes
    Standby ModeYes
    Detection Range1180 m
    System
    StorageBuilt-in memory module (8 GB)
    Record VideoYes
    Capture SnapshotYes
    Power Supply
    Battery TypeLithium battery
    Battery Operating Time7.5 hours continuous running with Wi-Fi hot spot function off (@25°C) 6 hours continuous running with Wi-Fi hot spot function on (@25°C)
    Battery Capacity DisplayYes
    General
    Power5 VDC/2 A, 1.5 W, Type-C Interface
    Working Temperature-20 °C to 55 °C (-4 °F to 131 °F)
    Protection LevelIP67
    Dimension171 mm × 61 mm × 57 mm (6.73" × 2.40" × 2.24")
    Weight300 g (0.66 lb)
