  •   Hikvision Thermal monocular camera HM-TS01-06XF/W-LC06

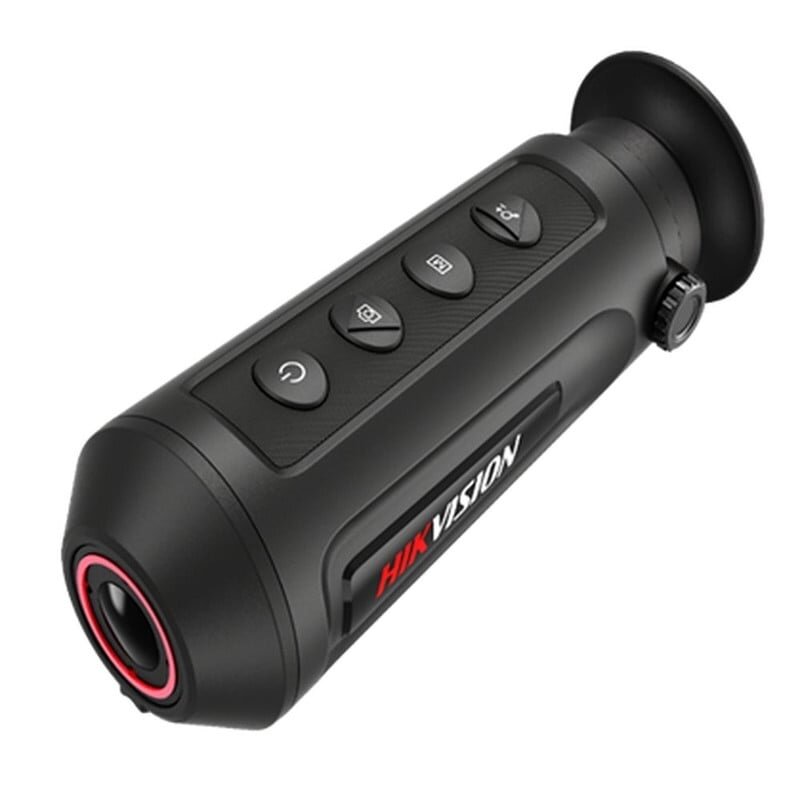

    Hikvision Thermal monocular camera HM-TS01-06XF/W-LC06

    Inquire about this item
    Price 635.58 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Thermal Module
    • Image SensorVOx Uncooled Focal Plane Arrays
    • Resolution160×120
    • Frame Rate50Hz
    • Pixel Interval17μm
    • Response Waveband8μm to 14μm
    • NETDLess than 35 mK (@25°C),F#=1.1
    • Focal Length6.2mm
    • IFOV2.74 mrad
    • Field of View24.7° × 18.7° (H × V)
    • ApertureF1.1
    • Image Display
    • Monitor 0.2 inch, LCOS, 720 × 540
    • PalettesBlack Hot, White Hot, Red Hot, Fusion
    • FFC (Flat Field Correction) ModeAuto, Manual, External Correction
    • Digital Zoom1 ×, 2 ×, 4 ×
    • Smart Function
    • Hot Track Yes
    • System
    • StorageBuilt-in memory module (8 GB)
    • Record VideoYes
    • Capture Snapshot

      No

    • Wi-FiYes
    • Standby ModeYes
    • Power Supply
    • Battery TypeRechargeable Lithium Battery
    • Battery Operating Time

      10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C)

      7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)

    • Battery Capacity DisplayYes
    • General
    • Power5 VDC/2 A, 1.5 W, Type-C Interface
    • Work Temperature/HumidityFrom -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less
    • Protection LevelIP67
    • Dimension158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
    • 250 g (0.55 lb)
