  •   Hikvision thermal monocle HM-TS26-35QG/WLV-GQ35L

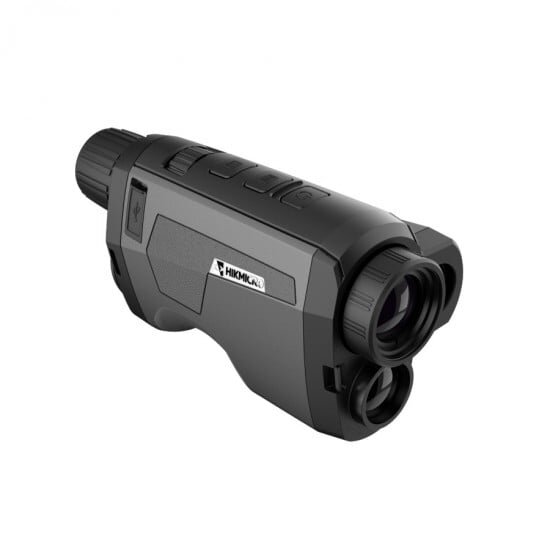

    Hikvision thermal monocle HM-TS26-35QG/WLV-GQ35L

    Inquire about this item
    Price 4653.26 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • Thermal Module
    • Image SensorVOx Uncooled Focal Plane Array
    • Max. Resolution640 × 512
    • Frame Rate50 Hz
    • Pixel Interval12 μm
    • Response Waveband8 μm to 14 μm
    • NETD35 mK (@25°C, F# = 1.0)
    • Lens (Focal Length)35 mm
    • Detection Range1800 m
    • Focus ModeManual
    • FOV (Field of View) 7.5° × 5.7° (H × V)
    • Min. Focusing Distance3 m
    • ApertureF1.0
    • Magnification3.35
    • Digital Zoom1 ×, 2 ×, 4 ×, 8 ×
    • Optical Module
    • Image Sensor1/2” Progressive Scan CMOS
    • Focal Length22 mm
    • Wavelength400 nm to 1000 nm
    • Max. Resolution1920 × 1080
    • Min. Illumination0.001 Lux @ F1.0
    • Image Display
    • Frame Frequency50 Hz
    • Display0.39 inch, OLED, 1024 × 768
    • Image ModeWhite Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion
    • FFC (Flat Field Correction) ModeAuto, Manual, External Correction
    • Smart Function
    • Hot SpotYes
    • Hot TrackYes
    • Standby ModeYes
    • System
    • Record VideoYes
    • Capture SnapshotYes
    • Built-in Memor16 GB
    • Power Supply
    • PowerRemovable Battery
    • Battery TypeOne 18650 battery
    • Battery Operating Time4.5 hours
    • General
    • Protection LevelIP67
    • Dimension87.2 mm × 51.2 mm × 167.8 mm (3.43 inch × 2.02 inch × 6.61 inch)
    • Weight510 g
    • Working Temperature-30 to 55°C
    • Eye-Relief 19.5 mm
    • General
    • Safety Class for LaserClass 1
    • Wavelength905 nm
    • Max. Measuring Range600 m
    • Measurement Accuracy± 1 m
