  •   Hikvision thermal and optical bullet DS-2TD2637T-10/QY

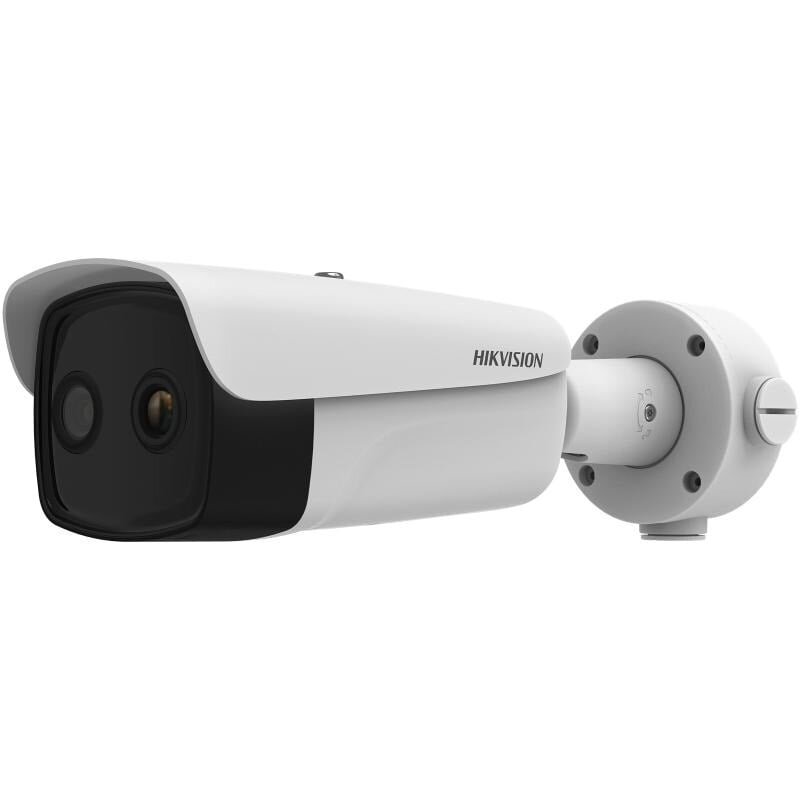

    Hikvision thermal and optical bullet DS-2TD2637T-10/QY

    Inquire about this item
    Price 3236.36 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision
    • Approval
    • Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
    • EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC9832: 2019; KSC9835: 2019) FCC (ANSI C63.4;FCC Part15 sub B)
    • EnvironmentCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
    • ProtectionIP67: IEC 60529-2013 IK10: IEC 62262-2002
    • SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)
    • Detection Range Table/Smart Function Range
    • VCA Range for Humans70 m
    • VCA Range for Vehicles210 m
    • General
    • Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
    • Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    • Power Consumption 24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W 12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W 24VDC: 0.4A, max 9.5W PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
    • Power Supply24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block PoE (802.3af, class 3)
    • Protection LevelIP67 Standard IK10-rated housing TVS 4000V lightning protection, surge protection, voltage transient protection NEMA 4X anti-corrosion housing
    • Weight1.82 kg (4.01 lb)
    • Working Temperature/Humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
    • Illuminator
    • IR Distance Up to 40 m
    • IR Intensity and AngleAutomatically adjusted
    • Image Effect
    • Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
    • Target ColorationYes. Supported in white hot and black hot mode.
    • Interface
    • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
    • Alarm Input2, alarm input (0-5 VDC)
    • Alarm Output2, alarm output (alarm response actions configurable)
    • Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
    • Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
    • Audio Output Linear level, impedance: 600 Ω
    • Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
    • Network
    • APIISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
    • Client iVMS-4200, Hik-Connect
    • Network StorageMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
    • Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
    • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
    • Simultaneous Live ViewUp to 20 channels
    • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
    • Optical Module
    • Day & Night ModeIR Cut Filter with Auto Switch
    • Field of View84° × 44.8° (H × V)
    • Focal Length4 mm
    • Image Sensor1/2.7" Progressive Scan CMOS
    • Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
    • Resolution 2688 × 1520
    • Shutter Speed1 s to 1/100,000 s
    • WDR120 dB
    • White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
    • Smart Function
    • Fire DetectionDynamic fire detection, up to 10 fire points detectable
    • Smoke DetectionSupport smoke detection on optical channel
    • Smoking DetectionUp to 10 smoking points detected
    • Temperature AccuracyMax (± 2 °C, ±2 %)
    • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
    • Temperature Range- 20 °C to 550 °C (- 4 °F to 1022 °F)
    • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
    • Thermal Module
    • ApertureF1.0
    • Digital Zoom×2, ×4
    • Field of View37.5° × 28.5° (H × V)
    • Focal Length9.7 mm
    • IFOV1.75 mrad
    • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
    • Min. Focusing Distance1 m
    • NETD ≤ 35 mK (@25° C,F# = 1.0)
    • Pixel Pitch17 μm
    • Resolution384 x 288
    • Spectral Range8 μm to 14 μm
    • Video and Audio
    • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
    • Main Stream Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280×720P， 704×576， 352×288， 384×288)
    • Sub-stream Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288) 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel 25 fps (704 × 576, 352 × 288, 384 × 288)
    • Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
    • Video and Image
    • Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
