  •   Hikvision thermal and optical bullet DS-2TD2617B-6/PA

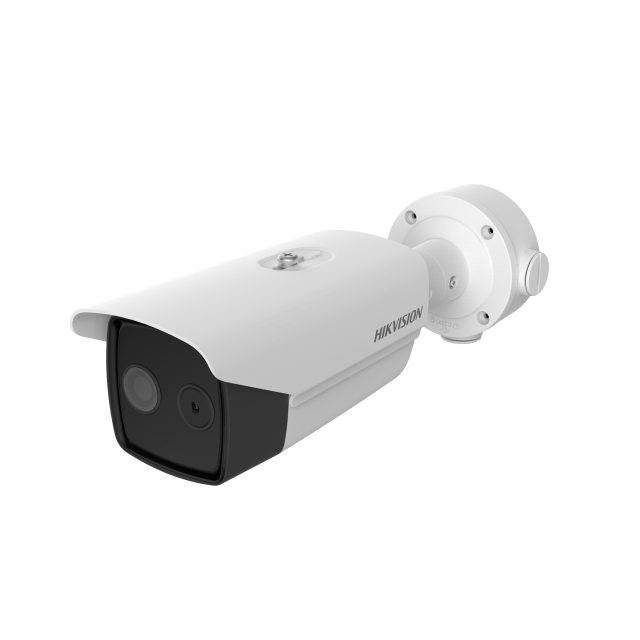

    Hikvision thermal and optical bullet DS-2TD2617B-6/PA

    Inquire about this item
    Price 4323.33 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • TitleDescription
    Image SensorVOx Uncooled Focal Plane Arrays
    Resolution160×120
    Pixel Interval17μm
    Response Waveband8μm to 14μm
    NETDLess than 40 mK (@25°C,F#=1.1)
    Focal Length6.2mm
    IFOV2.74 mrad
    ApertureF1.1
    Field of View25° × 18.7° (H × V)
    Min. Focusing Distance0.6 m
    Image Sensor1/2.7" Progressive Scan CMOS
    Resolution2688×1520, 4MP
    Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
    Field of View39.42° × 22.14° (H × V)
    Focal Length8mm
    Shutter Speed1s to 1/100,000s
    White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
    Day & Night ModeIR cut filter with auto switch
    WDR120 dB
    IR DistanceUp to 40 m
    IR Intensity and AngleAutomatically adjusted
    Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
    Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
    Temperature RangeFrom 30°C to 45°C (86°F ~ 113°F)
    Temperature Accuracy± 0.5 °C
    Main StreamThermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
    Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
    Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
    Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
    ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
    APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
    SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
    Simultaneous Live ViewUp to 20
    ClientiVMS-4200, Hik-Connect
    Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
    Alarm Input2-ch inputs (0-5 VDC)
    Alarm Output2-ch relay outputs, alarm response actions configurable
    Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
    Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
    Audio OutputLinear Level; Impedance: 600Ω
    Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
    On-board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
    Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
    PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
    Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
    Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
    Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
    Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
    Weight1.76 kg (3.88 lb)
