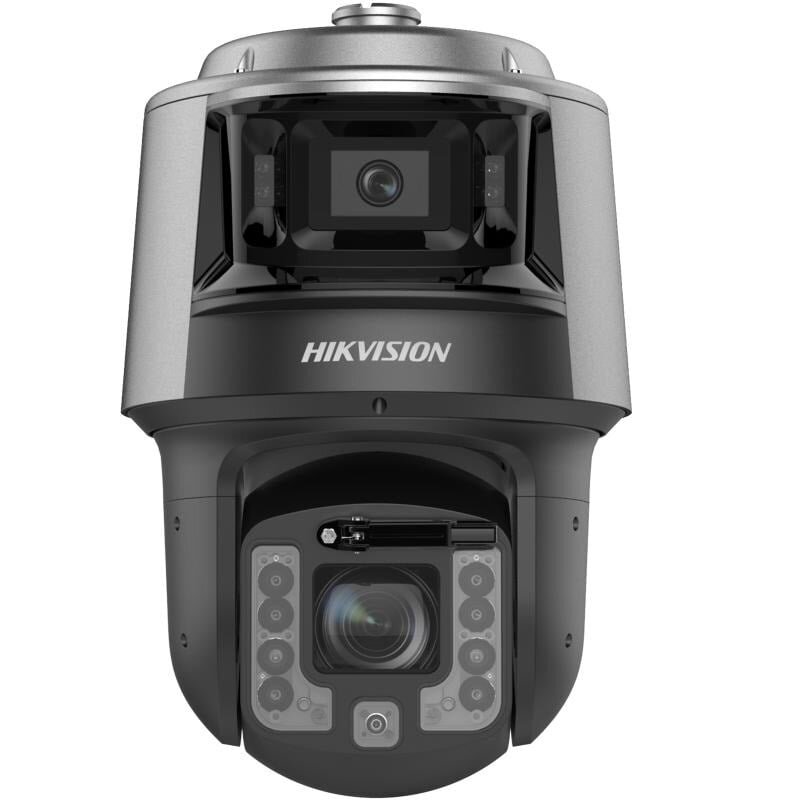

Hikvision TandemVu PTZ camera DS-2SF8C425MXG1-ELW/26(F0)
ManufacturerHikvision-
- AI Open Platform
- Event TypeRegion target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
- Model SpecificationModel type for AI Open Platform trained algorithm loading: high-performance model (small model), enhanced high-performance model (hybrid small-large model), and ultra-high-precision model (large model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 1 target. The device runs up to 2 small models or 1 large model at the same time.
- Rule SettingUp to 16 rules. Supports moving target filtering and shield region setting.
- Task TypeAlgorithm type for AI Open Platform high-performance model (small model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR, Segmentation, Image Comparison. Supports simultaneous independent operation of 2 models. Supports video analysis and image analysis. Algorithm type for AI Open Platform enhanced high-performance model (hybrid small-large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications). Supports video real-time analysis. Algorithm type for AI Open Platform ultra-high-precision model (large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR. Supports image scheduled analysis and I/O-triggered analysis. Supports algorithm orchestration for comparison. Supports importing user-defined orchestration packages (3 operator nodes, 5 logic nodes) for scenario-based application deployment.
- Approval
- Anti-Corrosion ProtectionModel with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
- EMCCE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
- EnvironmentCE-RoHS (2011/65/EU and its amendment (EU)2015/863)
- ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
- Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
- Audio
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
- Audio CompressionG.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise FilteringYes
- Camera
- Day & Night[Bullet channel] Color, [PTZ channel] IR cut filter
- Image Sensor[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
- Max. Resolution[Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
- Min. Illumination[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
- Shutter Speed1/25 s to 1/30000 s
- Slow ShutterYes
- Zoom[PTZ channel] 25 × optical, 16 × digital
- Deep Learning Function
- Face CaptureDetects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
- Face ComparisonUp to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library
- Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle
- People DensitySupports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
- Road Traffic and Vehicle DetectionSmart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Event
- Basic Event[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
- Linkage[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart Eventunattended baggage detection,object removal detection
- General
- DemistYes
- DimensionØ260 mm × 382.9 mm (Ø10.24" × 15.07")
- General Functionmirror,password protection
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- MaterialADC12
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
- Power36 VDC± 25%, max. 90 W (Max. 65 W, including max. 15 W for IR and max. 8 W for heater), PoE 802.3bt, type4, class8, max. 90W (Max. 65W, including max. 15W for IR and max. 8 W for heater)
- WeightApprox. 7.8 kg (17.196 lb.)
- WiperYes
- Illuminator
- Smart Supplement LightYes
- Supplement Light Range[Bullet channel] White Light: up to 40 m, IR: up to 80 m [PTZ channel] IR: up to 400 m
- Supplement Light Type[Bullet channel] White Light and IR, [PTZ channel] IR
- Image
- Day/Night Switchschedule,Day,auto,night
- DefogDigital defog
- Image Enhancement3D DNR,HLC,BLC,EIS
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Privacy Mask[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Regional ExposureYes
- Regional Focus[Bullet channel] No, [PTZ channel] Yes
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)[Bullet channel] 120 dB, [PTZ channel] 150 dB
- Interface
- Alarm7 input(s), 2 output(s)
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
- Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- Large Models
- Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras VCA range: [Bullet channel] up to 60m(nighttime)/100m(daytime), [PTZ channel] Wide: up to 70m(nighttime)/100m(daytime), Tele: up to 400m *Result based on standard setup and test environment
- Scenario-Aware Object DetectionThis function is based on the large model technology combined with image classification detection. It can automatically detect and identify scene categories in the detection area, including road, intersection, toll station, petrol station, open-air square, vehicle entrance and exit, and person entrance and exit, etc. The PTZ camera will rotate 360° to capture and label the scenes.For automatically recognize the scene information of captured image.- Real-time detection mode: the PTZ camera completes the full-scene capture, detection, and recognition output within 10 minutes in 360°.- Scheduled detection mode: the scheduled time can be set, and pictures can be collected every day or week. The collected pictures will be stored in eMMC, and the detection results will be output at 2 AM by default.The detection results and labels can be uploaded as alarms, and the alarm should include the camera IP address, port No., channel No., capture time, upload time, picture, PTZ coordinates, label ID, label name, and OCR information, as well as the coordinates of each OCR.
- Lens
- Aperture[Bullet channel] F1.0, [PTZ channel] F1.5
- FOV[Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
- Focal Length[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
- FocusAuto,semi-auto,manual
- Zoom Speed[Bullet channel] No, [PTZ channel] approx. 4.8 s
- Linkage and Tracking
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- Smart LinkageManual tracking, auto tracking, tracking takeover, linked tracking capture
- Smart TrackingManual tracking, auto-tracking 3.0
- Network
- APIISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
- ClientiVMS-4200,HikCentral Pro,Hik-Connect
- Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- Web BrowserPlug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- PTZ
- 3D PositioningYes
- Movement Range (Pan) [PTZ channel] 0° to 360°
- Movement Range (Tilt)[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
- PTZ Status DisplayYes
- Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Preset FreezingYes
- Presets300
- Proportional Pan[Bullet channel] No, [PTZ channel] Yes
- Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Tilt Speed[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Supplement Detection
- CompassNo
- GyroscopeYes
- Satellite PositioningNo
- Video
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Main Stream[Bullet channel] 50 Hz: 25 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720), 60 Hz: 25 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720),[PTZ channel] 50 Hz: 30 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720), 60 Hz: 30 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720)
- Region of Interest (ROI)8 fixed regions for each stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Sub-Stream[Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 25 fps (704 × 576，640 × 480，352 × 288),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288)
- Third Stream[Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Bit Rate32 Kbps to 16 Mbps
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
