  •   Hikvision SP Monitor 23.8" DS-D5024F2-AP2

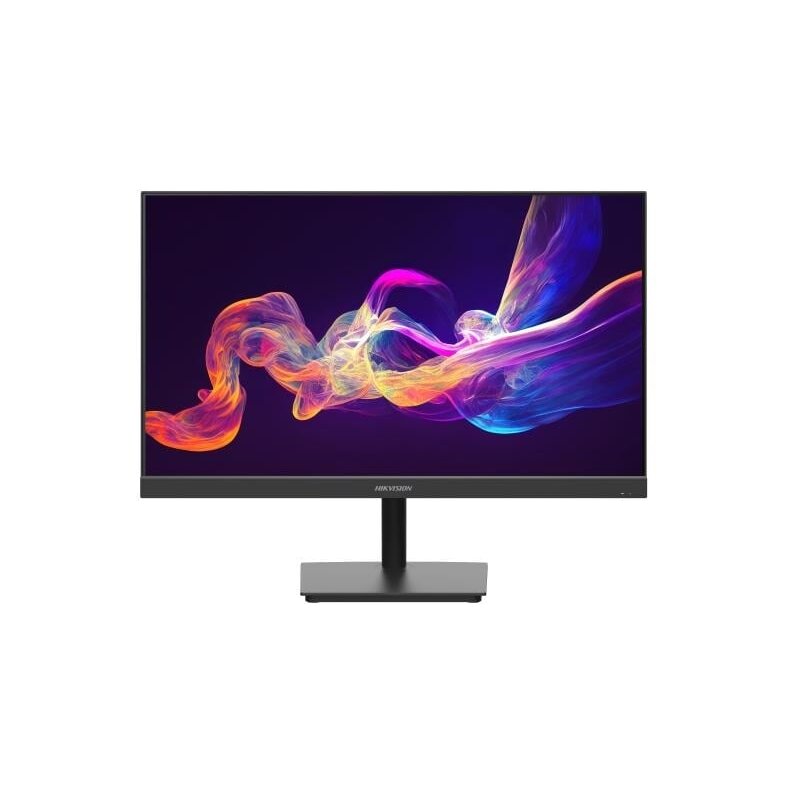

    Hikvision SP Monitor 23.8" DS-D5024F2-AP2

    Inquire about this item
    Price 133.06 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Hikvision
    • Display
    • Active Display Area527.04 (H) mm × 296.46 (V) mm
    • BacklightE-LED
    • Brightness250 cd/m²
    • Color Depth16.78 M
    • Color Gamut72% NTSC
    • Contrast Ratio1000 : 1
    • HazeHaze 25%，3H
    • Pixel Pitch0.2745 (H) mm × 0.2745 (V) mm
    • Refresh RateTyp. 60 Hz , Max. 100Hz
    • Reliability7 × 24 H
    • Resolution1920 × 1080
    • Response Time14ms
    • Screen Size23.8 inch
    • Viewing Angle178° (H) / 178° (V)
    • General
    • Bezel Width2.0 mm (top/left/right), 23.55 mm (bottom)
    • Casing MaterialPlastic
    • Gross Weight3.85± 0.5 kg
    • Net Weight2.85 ± 0.5 kg
    • Package Dimensions (W × H × D)611 (W) mm × 405 (H) mm × 118 (D) mm (24.06(W) × 15.94(H) × 4.65 (D) ) inch
    • Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
    • Product Dimensions (W × H × D)With base: 539.7 (W) mm × 427.33 (H) mm × 185.69(D) mm 21.25 (W) inch × 16.82 (H) inch × 7.31 (D) inch Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm 21.25 (W) inch × 12.89 (H) inch × 1.71 (D) inch
    • RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
    • VESA75 mm × 75 mm (4 - M4 × 6 mm)
    • Interface
    • Control InterfaceNone
    • Data Transmission InterfaceNone
    • Video & Audio InputHDMI 1.4 × 1, VGA × 1
    • Video & Audio OutputAudio Out × 1
    • Power
    • Power Consumption≤ 24 W
    • Power SupplyDC 12V, 2.0A
    • Standby Consumption≤ 0.5 W
    • Working Environment
    • Storage Humidity10% to 90% RH (Non-Condensing)
    • Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
    • Working Humidity20% to 90% RH (Non-Condensing)
    • Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
