  •   Hikvision SIP phone DS-KP6000-HE1

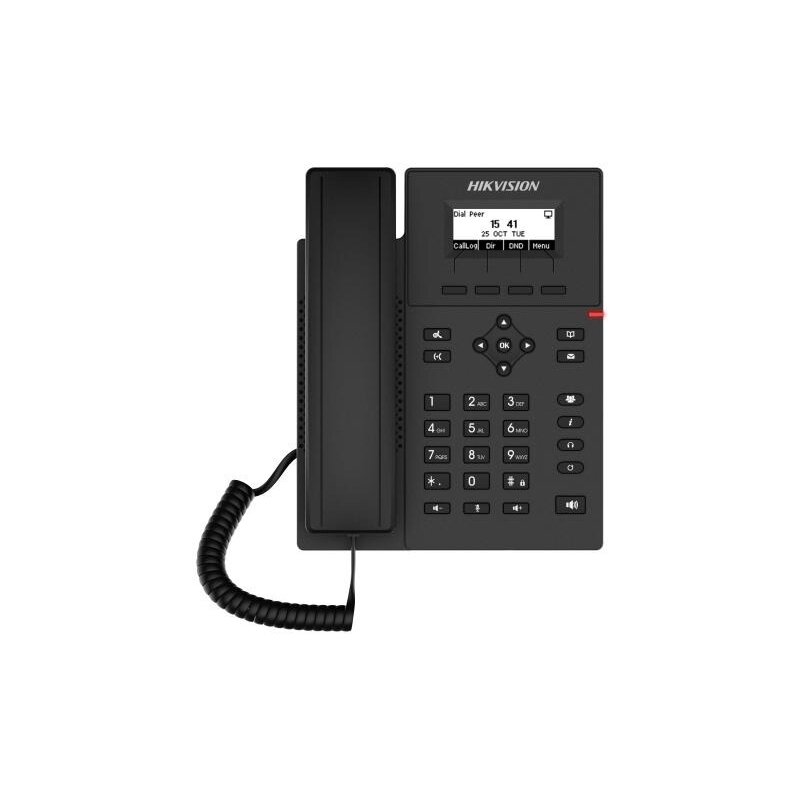

    Hikvision SIP phone DS-KP6000-HE1

    Inquire about this item
    Price 110.26 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • System parameters
    • Operating systemEmbedded Linux operation system
    • ROM16 MB
    • RAM64 MB
    • Display parameters
    • Screen size2.3-inch
    • Operation methodPhysical keys
    • TypeDot-matrix display screen
    • Resolution128x48
    • Audio parameters
    • Audio compression standard

      Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC

      Wideband Codec: G.722, Opus

    • Audio input

      HD voice microphone;

      HAC handset

    • Audio outputHD voice speaker (handset/hands-free, 0 ~ 7KHz frequency response)
    • Audio qualityFull-duplex Acoustic Echo Canceller (AEC) / Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
    • Volume adjustmentAdjustable
    • Capacity
    • Communication Lines4 SIP Lines
    • Contact capacity

      Local phonebook (1000 entries)

      Remote phonebook (XML/LDAP, 1000 entries)

    • Call log capacityIn/Out/Missed, 600 entries
    • Network parameters
    • Communication protocol

      SIP2.0 over UDP/TCP/TLS

      RTP/RTCP/SRTP

      STUN

      DHCP

      IPv6

      LLDP

      PPPoE

      L2TP

      OpenVPN

      SNTP

      FTP/TFTP

      HTTP/HTTPS

      TR-069

      AES128 & AES256

    • Wired network10/100 Mbps self-adaptive, dual bridged port for PC bypass
    • Wi-Fi standard/
    • Device interfaces
    • Network interface2 RJ-45 10/100 Mbps self-adaptive: Network x1, PC x1 (Bridged to Network)
    • Power supply inputDC power input
    • Communication interface2 RJ-9 ：handset x1, headset x1
    • General
    • Button33 physical keys, including: 4 Soft-keys; 9 function keys (Hold/Transfer/Voice message/Conference/Phonebook /MWI/Headset/Redial/Hands-free) ; 4 Navigation keys; 1 OK key; 12 Standard Phone Digits keys; 3 Volume Control keys (Up/Down/Mute (Microphone))
    • Installation

      Desktop stand

      Wall mounting (optional)

    • IndicatorRed: calling and message waiting
    • Working temperature0 °C to 45 °C (32 °F to 113 °F)
    • Working humidity10% to 95% (no-condensing)
    • DimensionsDesktop Stand (45°): 169x203.6x172.7 mm ; Desktop Stand (50°): 169x194x181 mm ; Wall mountable: 169x113.4x207.6 mm
    • Power supplyIEEE802.3af, Standard PoE,5 VDC, 0.6 A
    • Application environmentIndoor
    • Power consumptionPower Consumption(Adapter): 0.8~1.29W Power Consumption(PoE): 1.25~1.86W
    • LanguageEnglish, Simplified Chinese, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Basque, Galician, Turkish, Hungarian, Slovenian, Czech, Korean, Dutch, Ukrainian, Portuguese, Polish
