  •   Hikvision Relay Module DS-PM1-I16O2-WE AX PRO

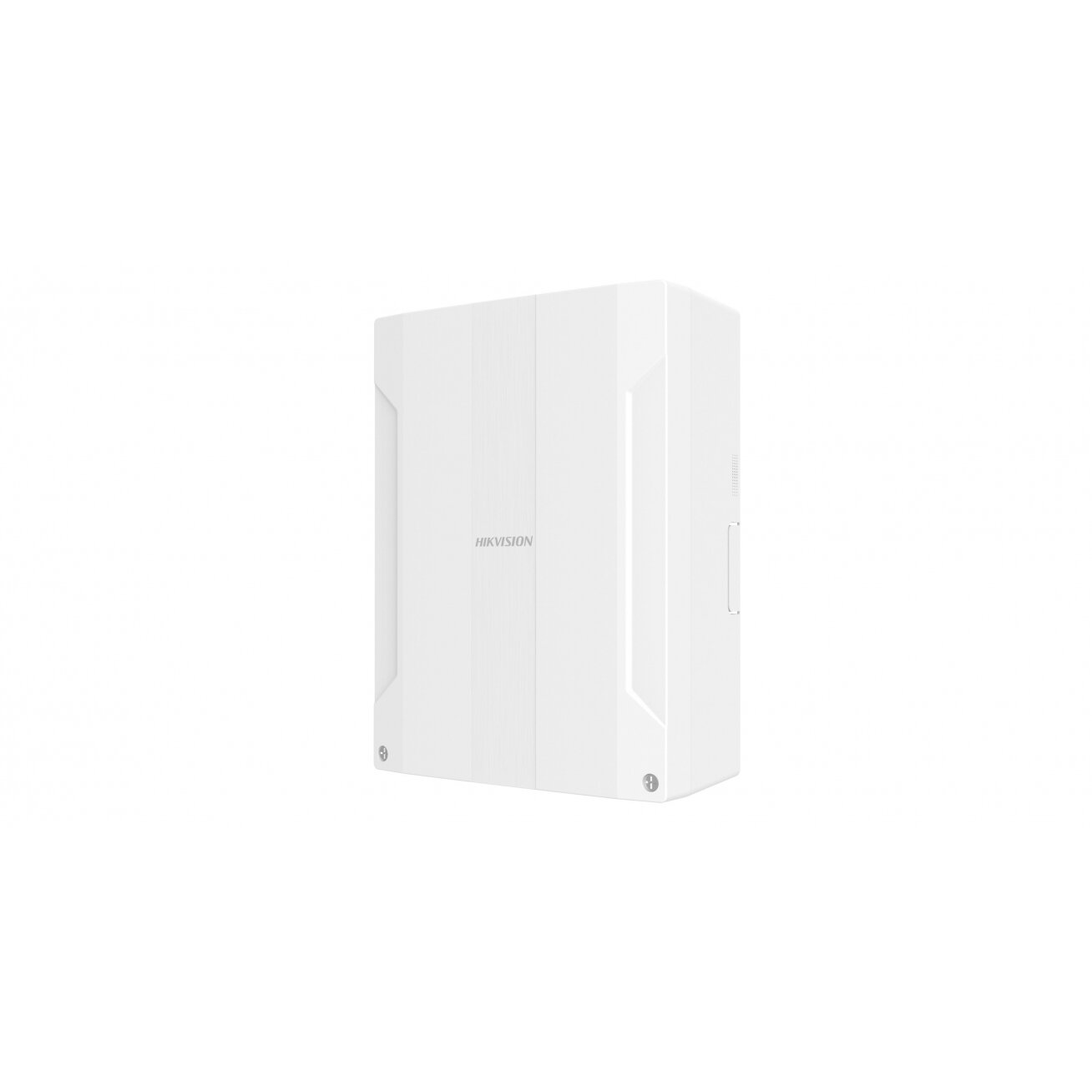

    Hikvision Relay Module DS-PM1-I16O2-WE AX PRO

    Inquire about this item
    Price 167.07 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • Software features
    End of Line Resistance 1k 2.2k 4.7k 8.2k NO/NC
    Serial port 1
    Battery port 1, 12 VDC input
    Tamper-proof Front and rear
    Power switch 1
    Alarm input 16
    Alarm output 2
    Power output 2 (12 V, total 1A)
    Electrical characteristics
    Battery type Compatible with 12V 7 Ah 150 × 64 × 94 mm
    Power supply 100-240 VAC，30 W
    Operation humidity 10% to 90%
    Operation temperature -10 °C to 55 °C
    Power consumption Battery Supply: Quiescent current (50 mA), Max current (1500 mA), Voltage (13.8 V) 220 V Supply: Quiescent current (45 mA), Max current (300 mA), Voltage (220 V)
    Battery lifespan Up to 36 hours
    Wireless transmission
    RF frequency 868 MHz
    RF method Two-way communication
    RF modulation 2GFSK
    RF distance 1100 m
    Display
    Indicator 3: Power(Green), Fault(Amber), Signal Strength(Green/Red)
    General
    Installation method Wall Mounting
    Dimensions (W x H x D) 261 x 199 x 86.4 mm
    Shell material Plastic
    Color White
