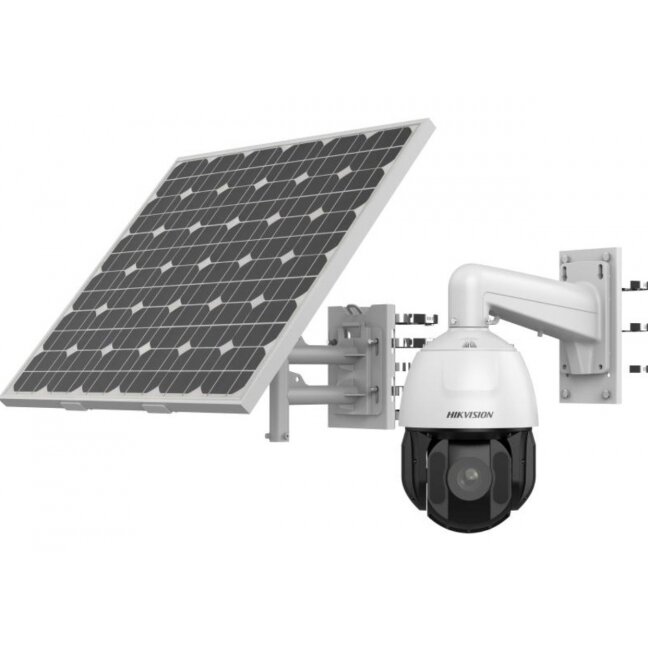

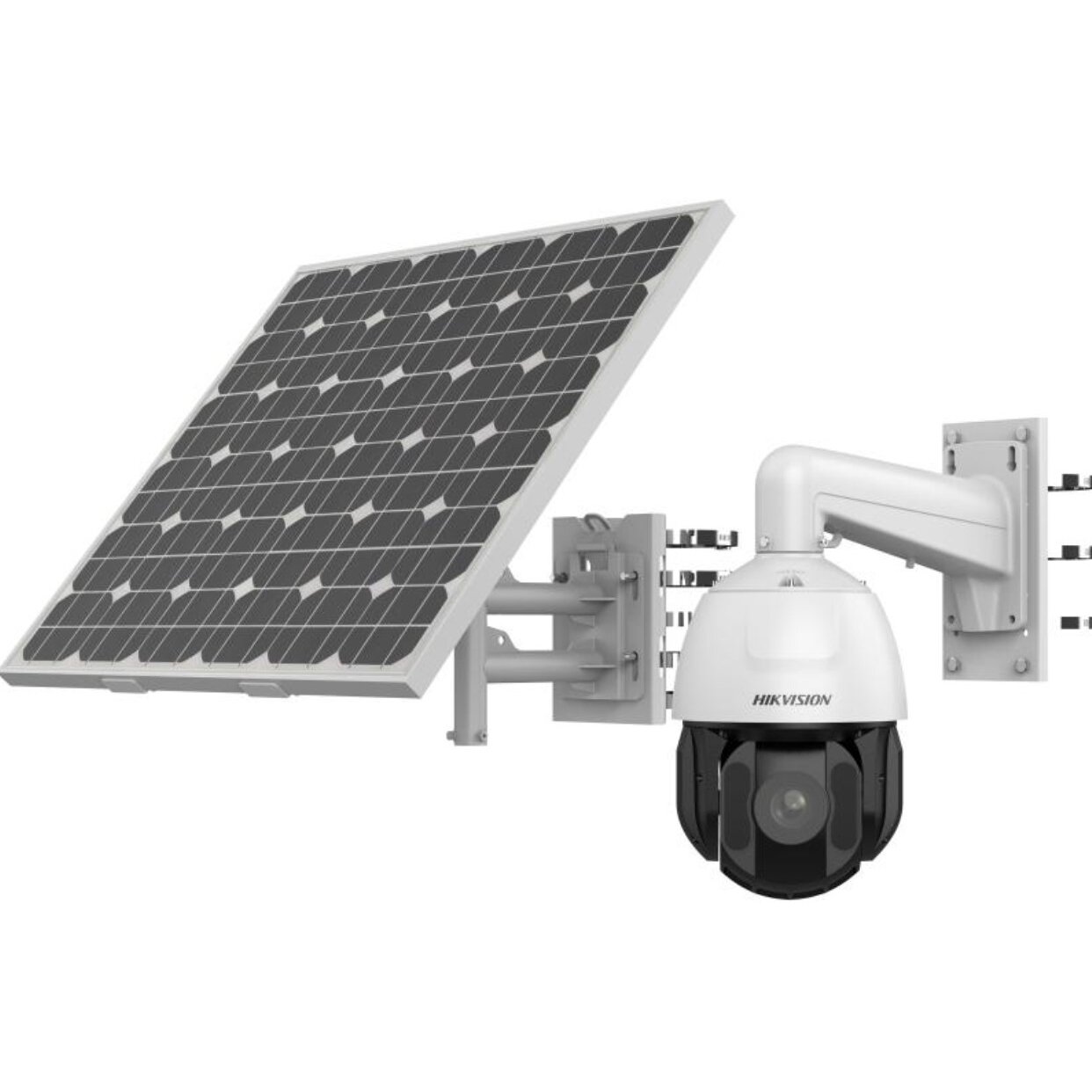

  •   Hikvision PTZ DS-2DE5425IWG-K/4G (4MP, x25 Zoom, AcuSense, IR 150m)

    Hikvision PTZ DS-2DE5425IWG-K/4G (4MP, x25 Zoom, AcuSense, IR 150m)

    Inquire about this item
    Price 3550.81 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor1/2.8" progressive scan CMOS
    • Max. Resolution2560 × 1440
    • Min. Illuminationcolor: 0.05Lux @ (F1.6，AGC ON)||B/W: 0.01Lux @(F1.6，AGC ON)||0 Lux with IR
    • Shutter Speed1 s~1/30,000 s
    • Day & NightIR cut filter
    • Zoom25 × optical,16 × digital
    • Slow Shutteryes
    • HLCyes
    • 3D DNRyes
    • Lens
    • Focal Length4.8 mm~120 mm
    • FOV

      Horizontal field of view: 55° to 2.4° (wide-tele),

      Vertical field of view: 33° to 1.4° (wide-tele),

      Diagonal field of view: 61.5° to 2.8° (wide-tele)

    • Focussemi-auto||manual||auto
    • ApertureF1.6
    • Zoom Speedapprox.3.6s
    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangeIR distance: up to 150 m
    • PTZ
    • Movement Range (Pan)360°
    • Movement Range (Tilt)-15° to 90° (auto flip)
    • Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
    • Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
    • Proportional Panyes
    • Presets300
    • Preset Freezingyes
    • Patrol Scan8 patrols, up to 32 presets for each patrol
    • Pattern Scan4 pattern scans
    • Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
    • 3D Positioningyes
    • PTZ Status Displayyes
    • Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
    • Power-off Memoryyes
    • Video
    • Main Stream

      50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

      60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

    • Sub-Stream

      50 Hz：25 fps（704 × 576，640 × 480，352 × 288）

      60 Hz：30 fps（704 × 480，640 × 480，352 × 240）

    • Third Stream

      50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）

      60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）

    • Video CompressionH.265||H.264||MJPEG
    • H.264 TypeBaseline Profile||Main Profile||High Profile
    • H.265 TypeMain Profile
    • Scalable Video Coding (SVC)yes
    • Region of Interest (ROI)fixed region
    • Audio
    • Audio CompressionG.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC
    • Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
    • Environment Noise Filteringyes
    • Network
    • ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets
    • APIOpen-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface
    • User/Host32
    • SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
    • Network StorageNAS (NFS, SMB/ CIFS)
    • ClientiVMS-4200
    • Web BrowserChrome 57+、Firefox 52+、Safari 12+||IE10-11
    • Wireless (Wi-Fi)
    • Wireless RangeUp to 20 m (The performance varies based on actual environment)
    • Wireless (Mobile Communication)
    • FrequencyLTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
    • StandardLTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH
    • Image
    • Image Parameters Switchyes
    • Image Settingssaturation||brightness||contrast||sharpness
    • Day/Night Switchday||night||auto||scheduled-switch
    • Wide Dynamic Range (WDR)yes
    • SNR＞52dB
    • Defogyes
    • Image EnhancementBLC
    • Privacy Maskup to 24 masks||mask color configurable
    • Regional Focusyes
    • Regional Exposureyes
    • Interface
    • Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
    • On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB
    • Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
    • Alarm2 alarm inputs
    • Resetyes
    • Power Output12 VDC, max. 1000 mA
    • Event
    • Basic EventMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    • Smart Event

      Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection,

      Face detection

    • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,and PTZ actions (such as preset, patrol scan, pattern scan)
    • General
    • Power12 VDC
    • DimensionØ208 mm × 344.8 mm
    • Weight

      Approx. 29.9 kg (65.9 lb.)

      With Package Weight:Approx. 35.3 kg (77.8 lb.)

    • MaterialMetal
    • Operating Condition-30℃ to 65℃ (-22°F to 149°F)
    • Demistyes
    • Power Consumption and CurrentMax. 20 W (including max. 7 W for IR and max. 1.6 W for heater);
    • Battery
    • Battery TypeLithium
    • Battery Voltage 10.8 V
    • Capacity360 WH (90 WH for each battery)
    • Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
    • Cycle LifetimeProactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
    • Battery LifeMore than 500 cycles
    • Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
    • Approval
    • ProtectionIP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
