  •   Hikvision PanoVu DS-2CD6D54G1-ZS/RC

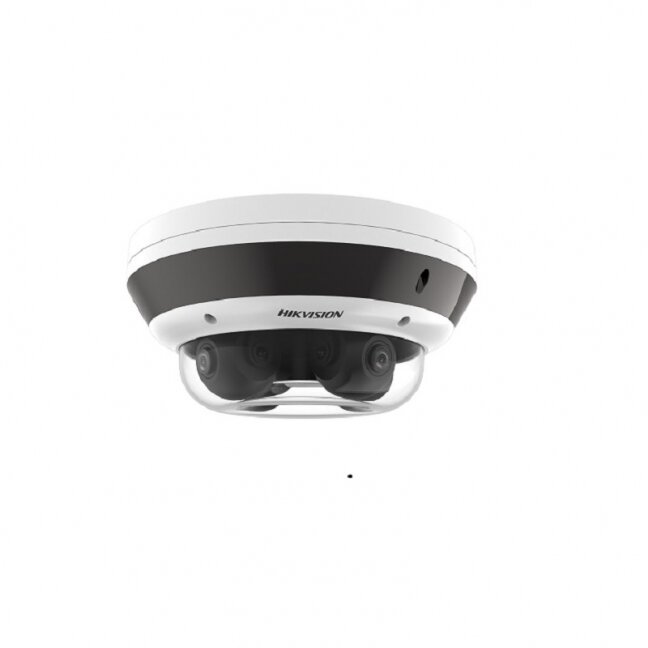

    Hikvision PanoVu DS-2CD6D54G1-ZS/RC

    Inquire about this item
    Price 2236.51 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor1/2.7" Progressive Scan CMOS
    • Min. Illumination

      Color: 0.0125 Lux @(F1.9, AGC ON)

      B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR

    • Shutter Speed1 s to 1/100,000 s
    • Slow ShutterYes
    • Day &NightIR cut filter
    • Angle AdjustmentPan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°
    • WDR120 dB
    • Lens
    • ApertureF1.9
    • FocusManual, semi-auto
    • FOVHorizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°
    • Lens MountØ14
    • Lens TypeVarifocal lens, 2.8 to 8 mm
    • Illuminator
    • IR RangeUp to 30 m
    • Wavelength850 nm
    • Video
    • Max. Resolution2560 × 1920
    • Video Stream3 defined streams
    • Main Stream

      50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

      60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

    • Sub Stream

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 24 fps (704 × 480, 640 × 480)

    • Third Stream

      50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

      60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264

    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Video Bit Rate32 Kbps to 16 Mbps
    • SVCH.264 encoding
    • H.264+Main stream support
    • H.265+Main stream support
    • Audio
    • Audio CompressionWith -S model: G.711/G.722.1/G.726/MP2L2/PCM
    • Audio Bit RateWith -S model: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
    • Environment Noise FilteringWith -S model: Yes
    • Audio Sampling RateWith -S model: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Smart Feature-Set
    • Smart Event

      Line crossing detection, up to 4 lines configurable

      Intrusion detection, up to 4 regions configurable

      Region entrance detection, up to 4 regions configurable

      Region exiting detection, up to 4 regions configurable

      Unattended baggage detection, up to 4 regions configurable

      Object removal detection, up to 4 regions configurable

      Scene change detection, audio exception detection(-S), defocus detection

    • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    • Region of Interest4 fixed regions and dynamic face tracking for each stream
    • Linkage Method

      Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm

      output, trigger recording, trigger capture

    • Image
    • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
    • Image Setting

      Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are

      adjustable by client software or web browser

    • Target CroppingYes
    • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
    • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
    • SNR≥52 dB
    • Network
    • Network StoragemicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
    • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
    • Security

      Password protection, complicated password, HTTPS encryption, 802.1X authentication

      (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/

      HTTPS, WSSE and digest authentication for Open Network Video Interface

    • Simultaneous Live ViewUp to 20 channels
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web BrowserIE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
    • Interface
    • Communication Interface

      Without -S model:

      1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232

      With -S model:

      1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232

      1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self- adaptive)

    • AudioWith -S model: 1 input (line in), 1 output (line out), 3.5 mm three-contact
    • AlarmWith -S model: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
    • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
    • Approval
    • EMC

      47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,

      EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:

      2015, KN 35: 2015

    • Safety

      UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am

      1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

    • Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
    • ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
    • General
    • Firmware VersionV5.5.32
    • Web Client Language

      32 languages

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,

      French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,

      Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

      Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

    • General FunctionAnti- flicker, 3 streams, heartbeat, mirror, privacy masks
    • ResetReset via reset button on camera body, web browser and client software
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
    • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
    • Power Supply

      12 VDC± 20%, reverse polarity protection; three-core terminal block

      24 VAC ± 20%;

      PoE (802.3at, class 4)

    • Power Consumption and Current

      12 VDC, 1.8 A, 22 W

      24 VAC, 1.4 A, 22 W

      PoE (802.3at, 42.5 to 57 VDC), 0.44 to 0.33 A, 19 W, class 4

    • MaterialBubble & IR cover: plastic, camera: metal
    • Dimensions

      Camera: Ø250 × 114.9 mm (9.8″ × 4.5″)

      With package: 336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″)

    • Camera: 2.2 kg (4.9 lb.)

      With package: 3.9 kg (8.6 lb.)
